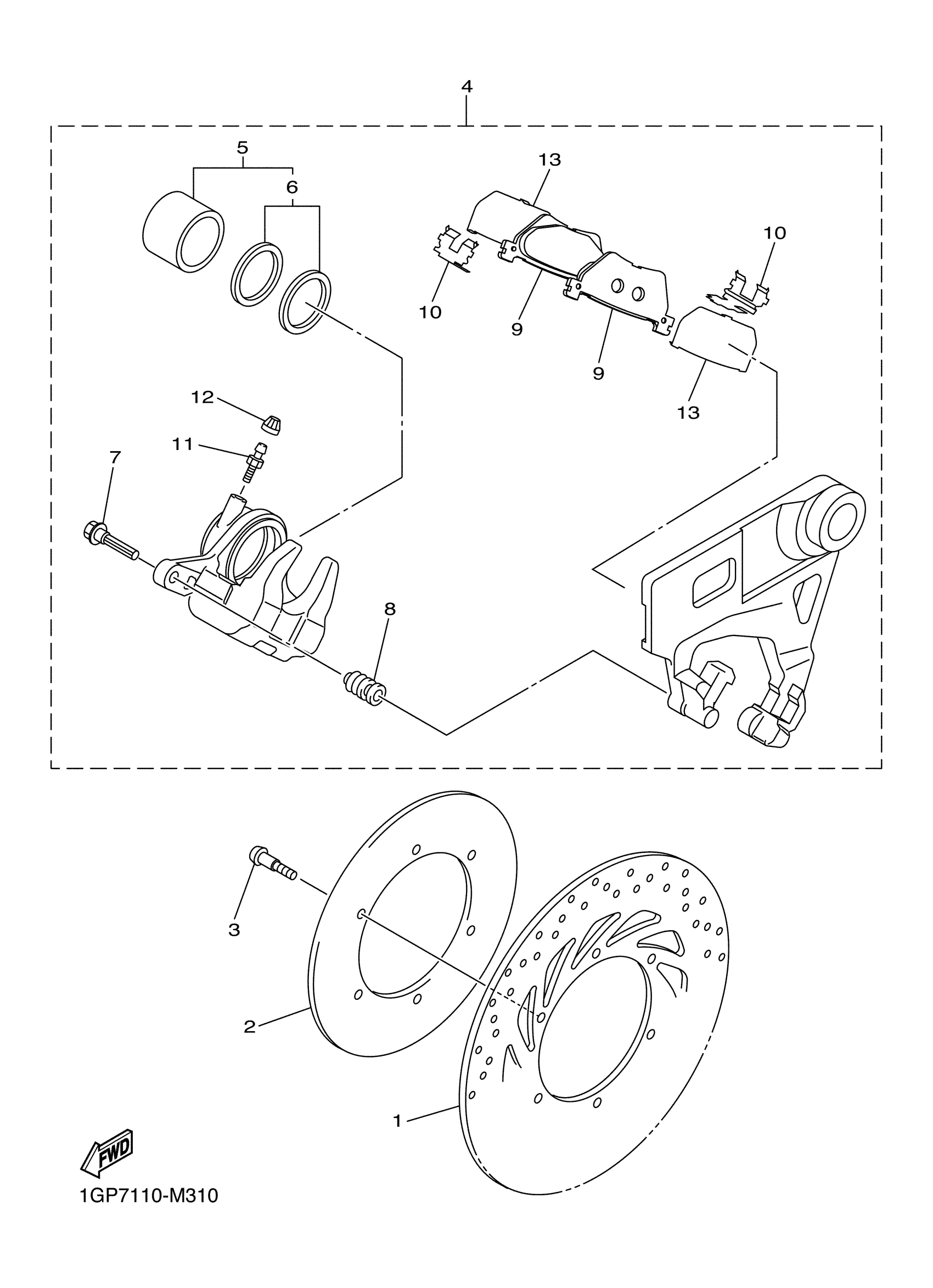

Yamaha XVS13CDW (STRYKER) 27D7 2013 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5C7-2582W-00-00

Unavailable

2

PLATE, DISK

5C7-2581A-00-00

Unavailable

3

BOLT

90109-06050-00

$7.49

4

CALIPER ASSY, REAR 2

5C7-2580W-20-00

Unavailable

5

PISTON ASSY, CALIPER

1D7-25802-00-00

$56.99

6

CALIPER SEAL KIT

5JW-25803-00-00

$16.49

7

PIN, SLIDE

3P6-25914-00-00

$16.49

8

BOOT 2

4TT-25937-00-00

$16.49

9

BRAKE PAD KIT 2

3D8-25806-00-00

$44.99

10

SUPPORT, PAD

1D7-25919-00-00

$18.49

11

SCREW, BLEED

47X-25824-01-00

$14.49

12

CAP

1D7-25825-00-00

$7.99

13

SHIM, CALIPER

5GJ-25827-00-00

$12.99
