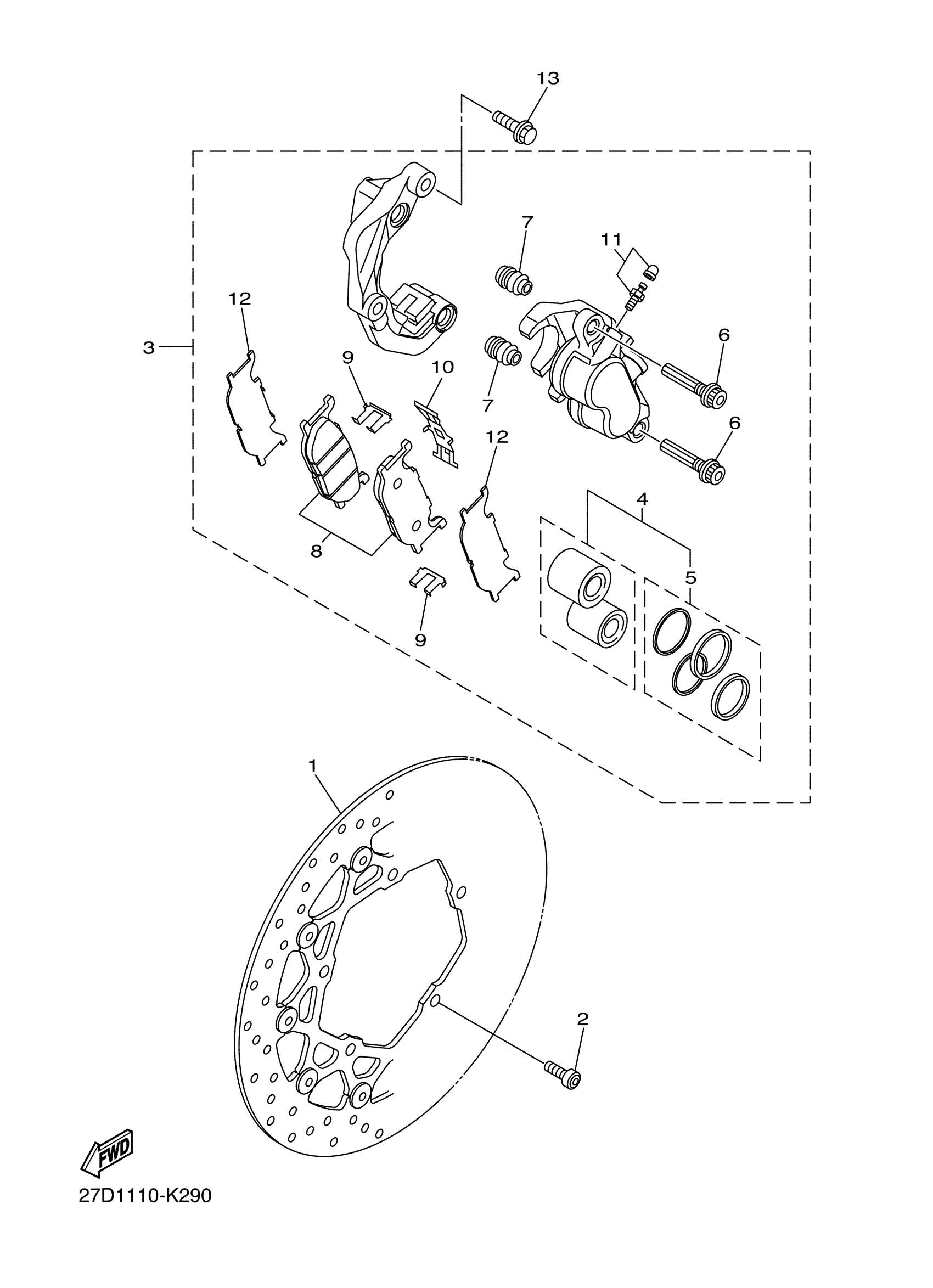

Yamaha XVS13CDW (STRYKER) 27D7 2013 FRONT BRAKE CALIPER Diagram

DISK BRAKE ASSY

5D0-2581T-10-00

$279.99

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

CALIPER ASSY (LEFT)

27D-2580T-00-00

Unavailable

PISTON ASSY, CALIPER

3YX-W0057-00-00

Unavailable

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

PIN, SLIDE

5JW-25914-10-00

$22.99

BOOT 2

4TT-25937-00-00

$16.49

BRAKE PAD KIT

5S7-25805-00-00

$79.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

SHIM, CALIPER

4DN-25827-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
