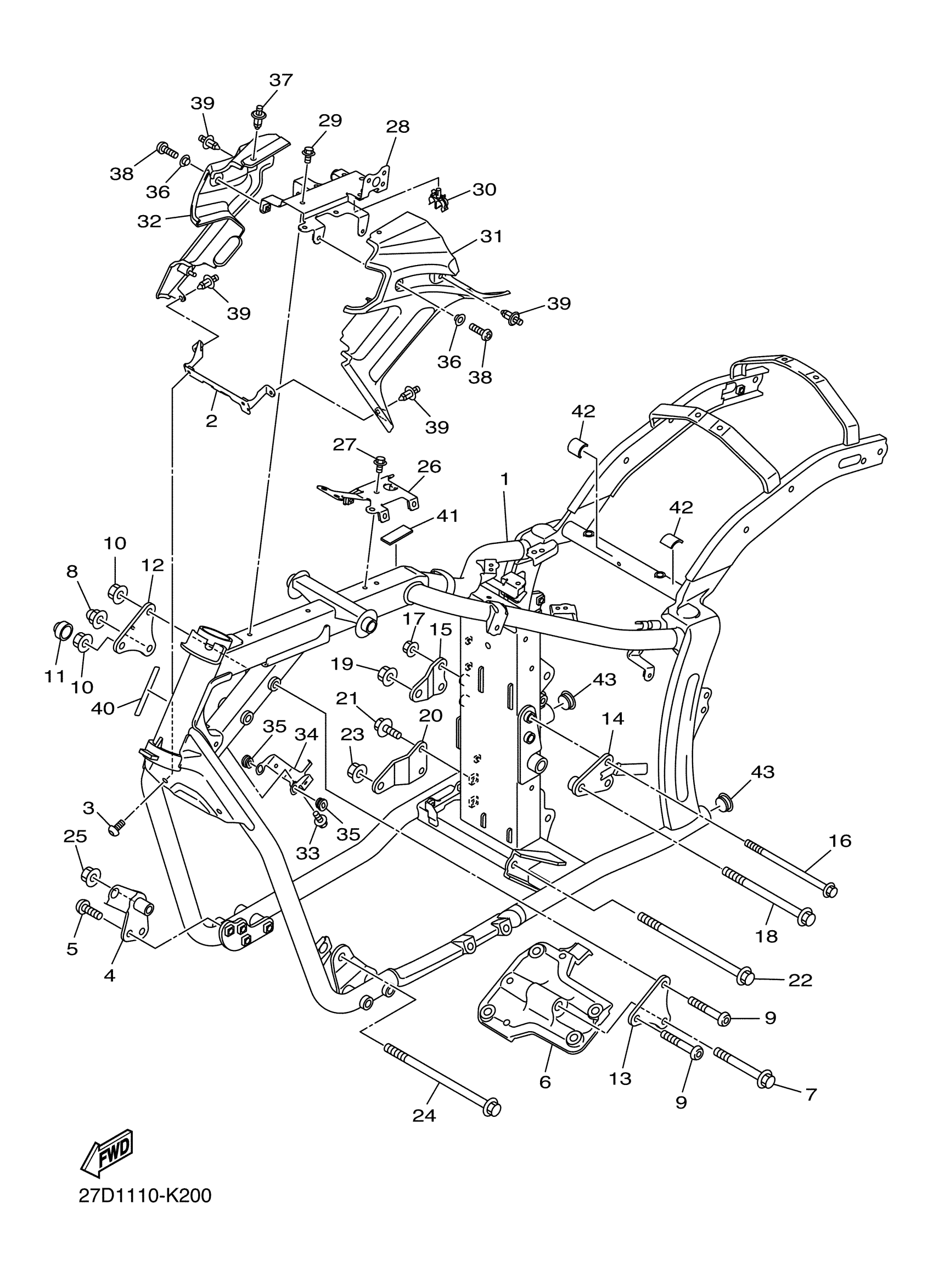

Yamaha XVS13CDW (STRYKER) 27D7 2013 FRAME Diagram
#
1
FRAME COMP.
27D-21110-00-00
Unavailable
2
BRKT., 10
27D-2119M-00-00
Unavailable
4
STAY, ENGINE 7
27D-21387-00-00
Unavailable
5
BOLT,HEX. SOCKET BUTTON
90111-10047-00
Unavailable
6
STAY, ENGINE 3
27D-21317-00-00
Unavailable
8
NUT, CROWN
90176-12003-00
Unavailable
11
CAP
5YU-2143A-00-00
Unavailable
13
BRKT.
27D-2116B-00-00
Unavailable
14
STAY, ENGINE 5
27D-21318-00-00
Unavailable
15
STAY, ENGINE 5
27D-21314-00-00
Unavailable
16
BOLT, FLANGE
90105-10391-00
Unavailable
17
NUT, S/L FLANGE
95602-10200-00
Unavailable
18
BOLT, FLANGE
90105-12080-00
Unavailable
19
NUT, SELF-LOCKING
90185-12002-00
Unavailable
20
STAY, ENGINE 3
3D8-21316-00-00
Unavailable
21
BOLT, FLANGE
95817-10020-00
Unavailable
22
BOLT, FLANGE
90105-12044-00
Unavailable
23
NUT, SELF-LOCKING
90185-12002-00
Unavailable
24
BOLT, FLANGE
90105-12045-00
Unavailable
25
NUT, SELF-LOCKING
90185-12002-00
Unavailable
26
BRACKET, COIL
27D-21359-00-00
Unavailable
27
BOLT, FLANGE
95022-06012-00
Unavailable
28
BRACKET, FRONT UPPER 1
27D-21415-00-00
Unavailable
29
BOLT, FLANGE
95022-06012-00
Unavailable
30
CLAMP
90464-11007-00
Unavailable
31
COVER, SIDE 5
27D-2171E-00-00
Unavailable
32
COVER, SIDE 6
27D-2171X-00-00
Unavailable
33
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
34
STAY, SIDE COVER 2
27D-21322-00-00
Unavailable
35
GROMMET
90480-01022-00
Unavailable
36
SPACER (25G)
90560-06244-00
Unavailable
37
RIVET
90269-07007-00
Unavailable
38
SCREW(3XV)
90149-06298-00
Unavailable
39
RIVET
90269-05079-00
Unavailable
40
PROTECTOR
3D8-2117G-00-00
Unavailable
41
DAMPER
5H0-8235Y-M0-00
Unavailable
42
PROTECTOR
3MA-27491-00-00
Unavailable
43
PLUG
90338-27007-00
Unavailable
