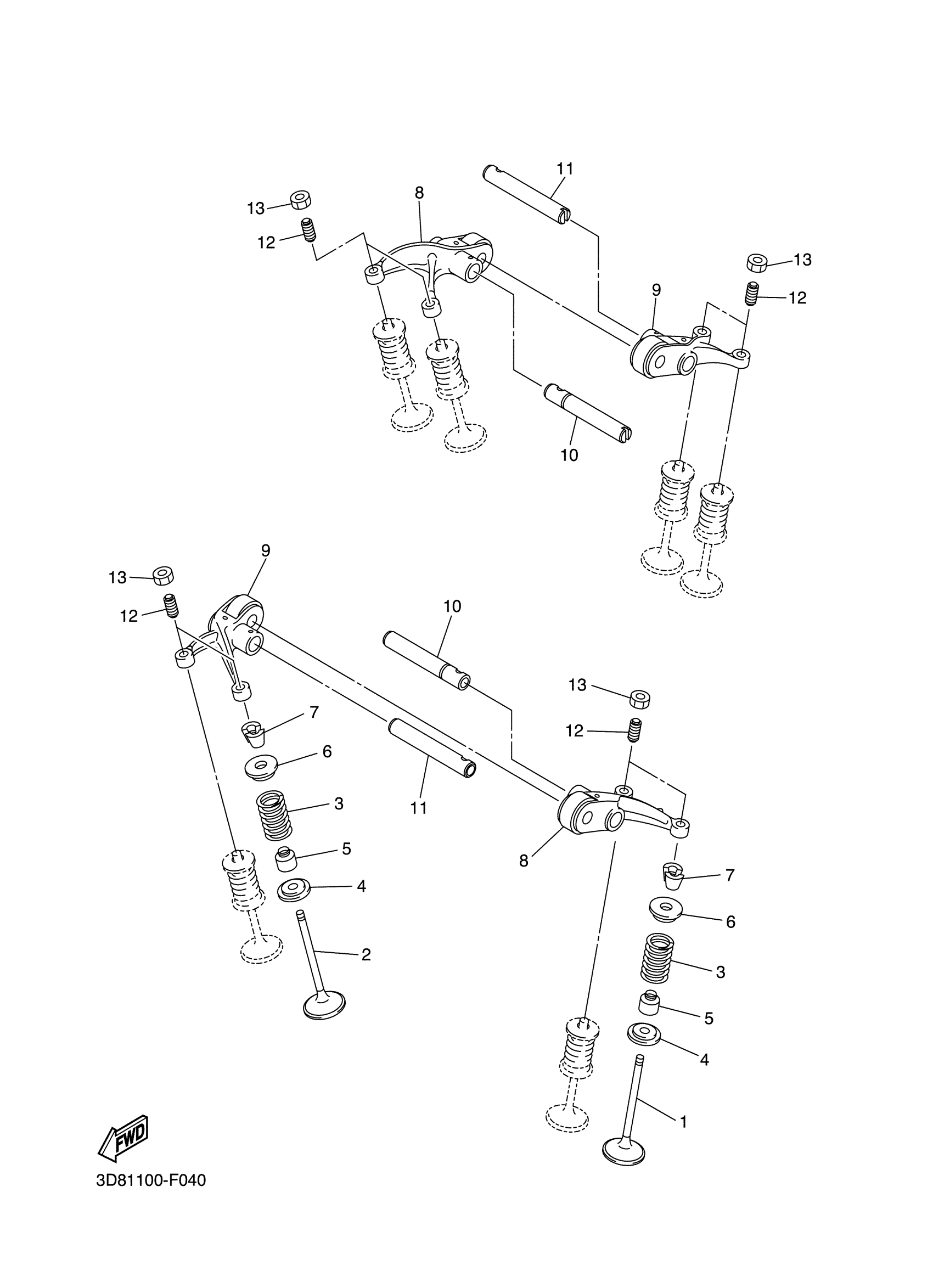

Yamaha XVS13CBR (STRYKER) 27D4 2012 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

3D8-12111-00-00

Unavailable

2

VALVE, EXHAUST

5VK-12121-00-00

$85.99

3

SPRING, VALVE INNER

3D8-12113-00-00

Unavailable

4

SEAT, VALVE SPRING

3YF-12116-00-00

$8.99

5

SEAL, VALVE STEM

5H0-12119-00-00

$16.49

6

RETAINER, VALVE SPRING

3YF-12117-01-00

$15.49

7

COTTER, VALVE

4G0-12118-00-00

$7.99

8

ARM, VALVE ROCKER

3D8-12151-00-00

Unavailable

9

ARM, VALVE ROCKER 2

3D8-12161-00-00

Unavailable

10

SHAFT, ROCKER

3D8-12146-00-00

Unavailable

11

SHAFT, ROCKER 2

3D8-12156-00-00

Unavailable

12

SCREW, VALVE ADJUSTING

5XT-12159-00-00

$9.99

13

NUT HEXAGON 371121580000

90170-06128-00

$8.49
