2012 Yamaha Stryker (XVS13CBR) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

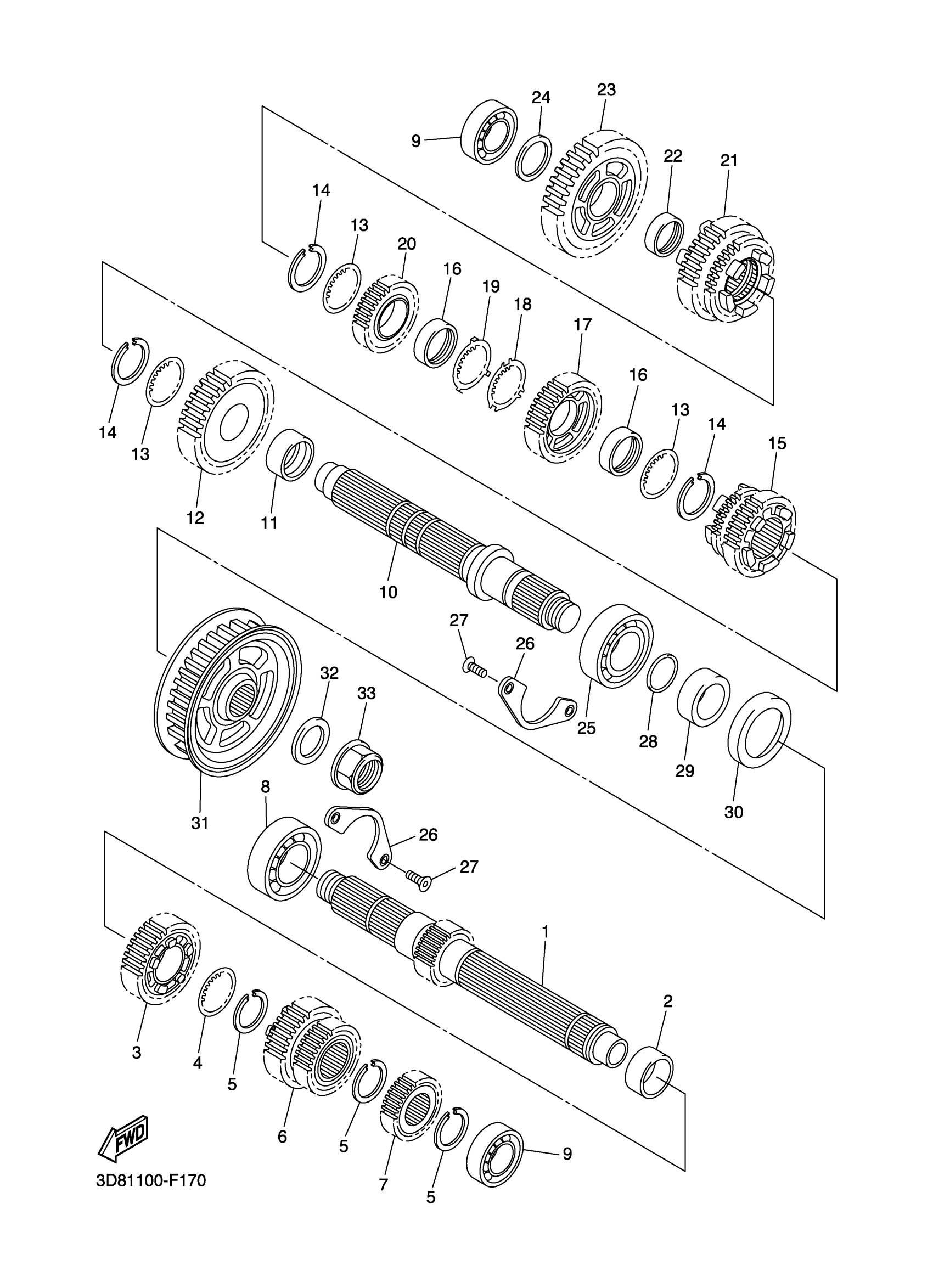

2012 Yamaha Stryker (XVS13CBR) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

3D8-17411-00-00

—
Out of stock

2

COLLAR

90387-28003-00

1

$23.91

In stock

3

GEAR, 5TH PINION

3D8-17151-00-00

—
Out of stock

4

WASHER

90209-25011-00

1

$7.22

In stock

5

CIRCLIP

93440-28184-00

1

$3.72

In stock

6

GEAR, 3RD PINION

27D-17131-00-00

—
Out of stock

7

GEAR, 2ND PINION

3D8-17121-00-00

—
Out of stock

8

BEARING

93306-37817-00

1

$62.56

In stock

9

BEARING

93306-37215-00

1

$41.17

In stock

10

AXLE, DRIVE

3D8-17421-00-00

—
Out of stock

11

COLLAR

90387-31003-00

1

$17.98

In stock

12

GEAR, 2ND WHEEL

3D8-17221-00-00

—
Out of stock

13

WASHER

90209-28008-00

—

$6.23

In stock

14

CIRCLIP

93440-31187-00

1

$6.25

In stock

15

CLUTCH, DOG

3D8-17285-00-00

—
Out of stock

16

COLLAR

90387-28004-00

—

$27.56

In stock

17

GEAR, 3RD WHEEL

3D8-17231-00-00

—
Out of stock

18

WASHER, CLAW

90214-29002-00

—

$7.34

In stock

19

WASHER, CLAW

90214-28002-00

—

$7.11

In stock

20

GEAR, 4TH WHEEL

3D8-17241-00-00

—
Out of stock

21

GEAR, 5TH WHEEL

3D8-17251-00-00

—
Out of stock

22

COLLAR

90387-25008-00

—

$28.74

In stock

23

GEAR, 1ST WHEEL

3D8-17211-00-00

—
Out of stock

24

WASHER, PLATE(83R)

90201-224L4-00

—

$6.80

In stock

25

—

$81.45

In stock

26

PLATE, BEARING COVER

3D8-15381-00-00

—

$17.22

In stock

27

SCREW, COUNTERSUNK

90151-06023-00

—

$6.52

In stock

28

O-RING(50M)

93210-27672-00

—

$4.60

In stock

29

COLLAR

90387-30010-00

—

$34.49

In stock

30

OIL SEAL

93102-45012-00

—

$17.94

In stock

31

PULLEY, BELT

27D-17651-00-00

—
Out of stock

32

WASHER, CONICAL SPRING

90208-22004-00

—

$20.37

In stock

33

NUT

90179-22016-00

—

$21.85

In stock
