2012 Yamaha Stryker (XVS13CBR) Clutch Diagram

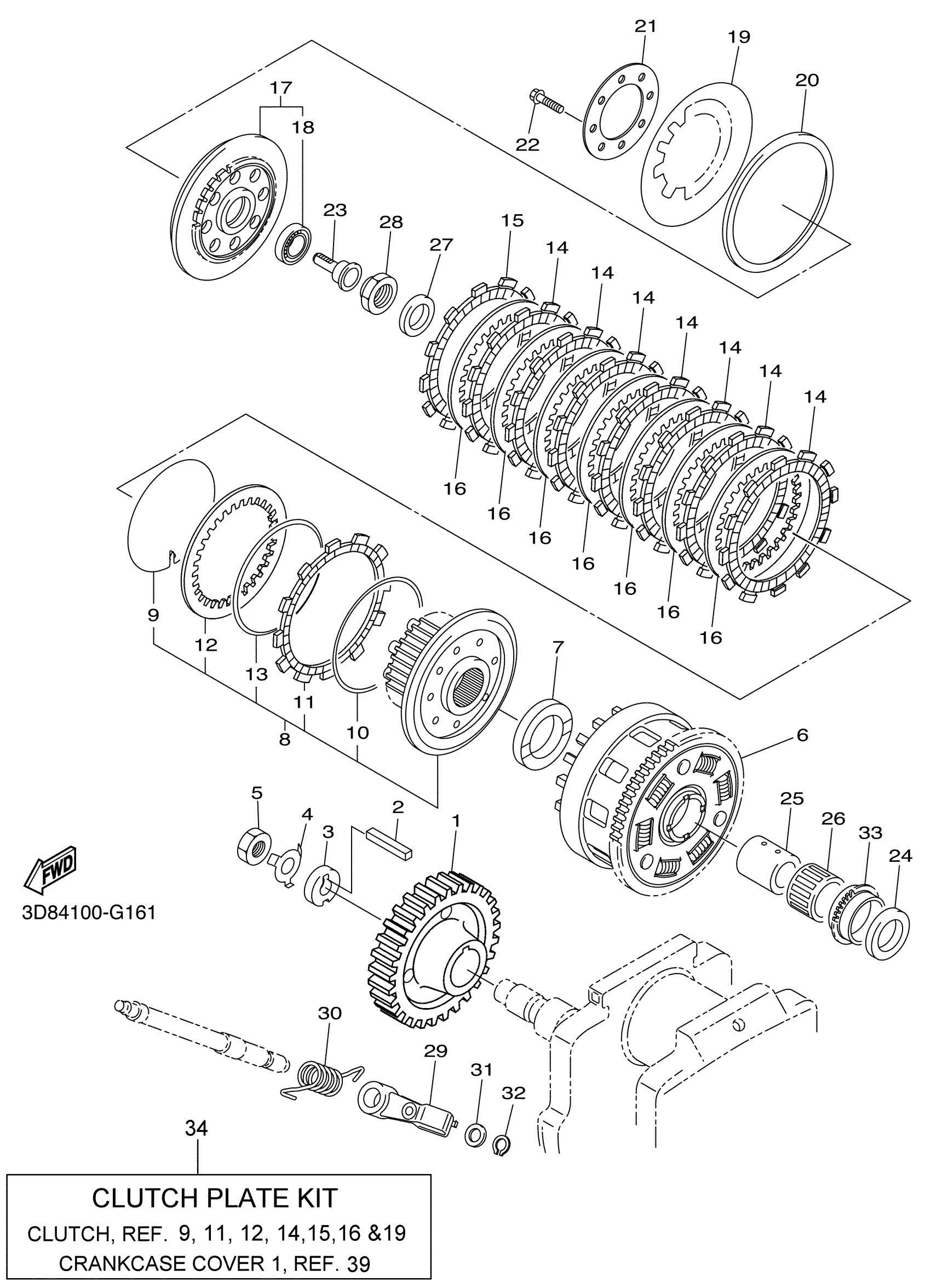

Find the part on the Clutch diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
GEAR, PRIMARY DRIVE
3D8-16111-00-00
—
Out of stock
2
KEY, STRAIGHT
90282-10001-00
—
Out of stock
6
PRIMARY DRIVEN GEAR COMP.
3D8-16150-20-00
—
Out of stock
8
CLUTCH BOSS ASSY
3D8-16370-00-00
—
Out of stock
19
SPRING, CLUTCH 2
1TX-16334-00-00
—
Out of stock
23
ROD, PUSH 1
4XV-16356-01-00
—
Out of stock
27
WASHER, CONICAL SPRING
90208-20001-00
—
Out of stock
28
NUT
90179-20022-00
—
Out of stock
29
PUSH LEVER ASSY
3D8-16340-00-00
—
Out of stock
34
CLUTCH PLATE KIT
27D-W001G-00-00
—
Out of stock
