2012 Yamaha Stryker (XVS13CBR) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

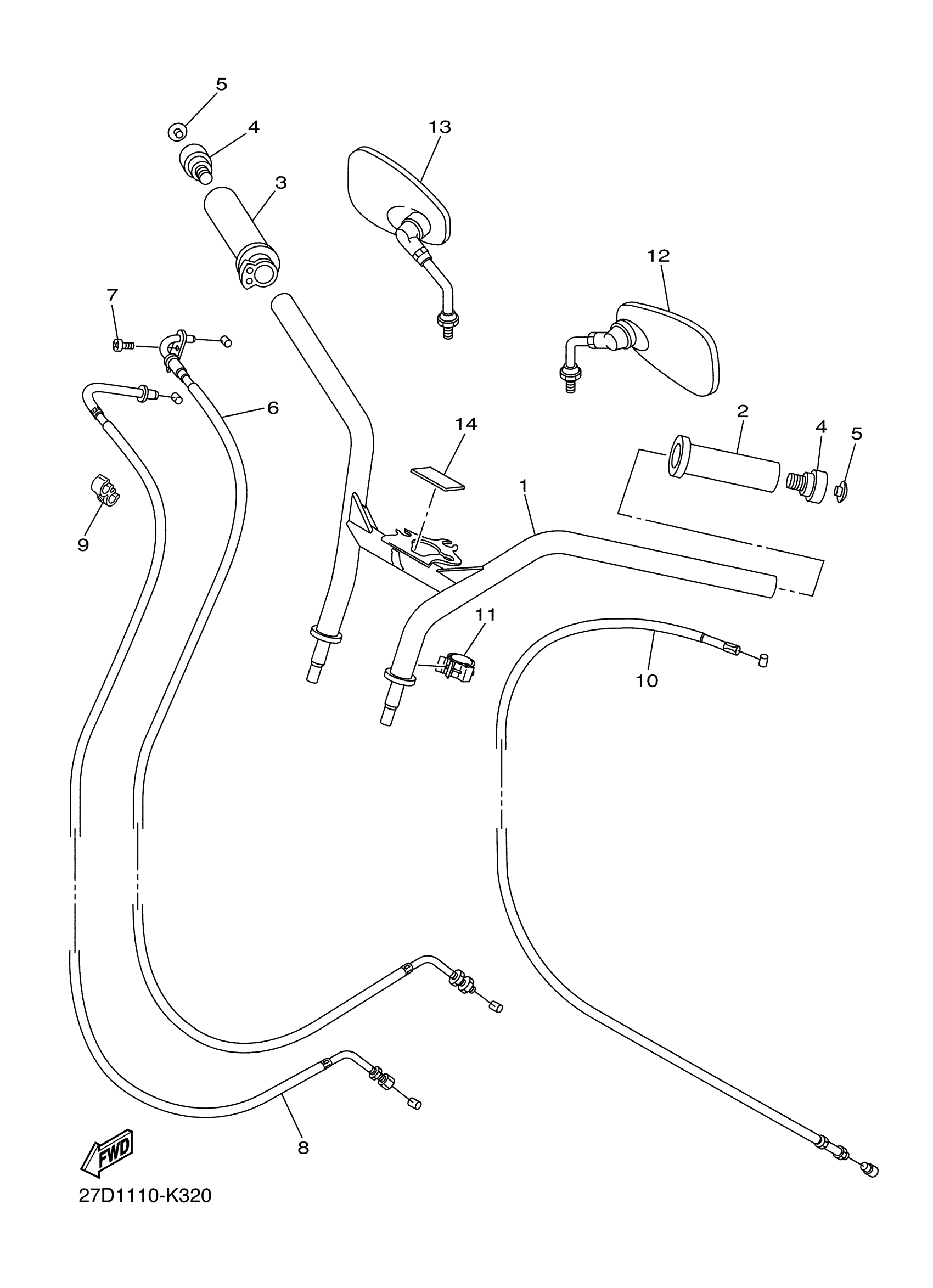

2012 Yamaha Stryker (XVS13CBR) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

27D-26111-00-00

1
Out of stock

2

GRIP

4NK-26241-01-00

—
Out of stock

3

GRIP ASSY

4XY-26240-00-00

1
Out of stock

4

END, GRIP

5EL-26246-00-00

1
Out of stock

5

PLUG(42X)

90338-10164-00

1

$7.35

In stock

6

CABLE, THROTTLE 1

27D-26311-00-00

1
Out of stock

7

SCREW, PAN HEAD(JJ6)

98507-05016-00

1

$1.40

In stock

8

CABLE, THROTTLE 2

27D-26312-00-00

1
Out of stock

9

CLAMP(4KB)

90464-06214-00

1
Out of stock

10

CABLE, CLUTCH

27D-26335-00-00

1
Out of stock

11

CLAMP(4GY)

90464-20191-00

1

$7.35

In stock

12

1

$73.48

In stock

13

REAR VIEW MIRROR ASSY (RIGHT)

4NK-26290-10-00

1
Out of stock

14

DAMPER, PLATE

90520-04007-00

—
Out of stock
