2012 Yamaha Stryker (XVS13CBR) Rear Wheel Diagram

← All diagrams

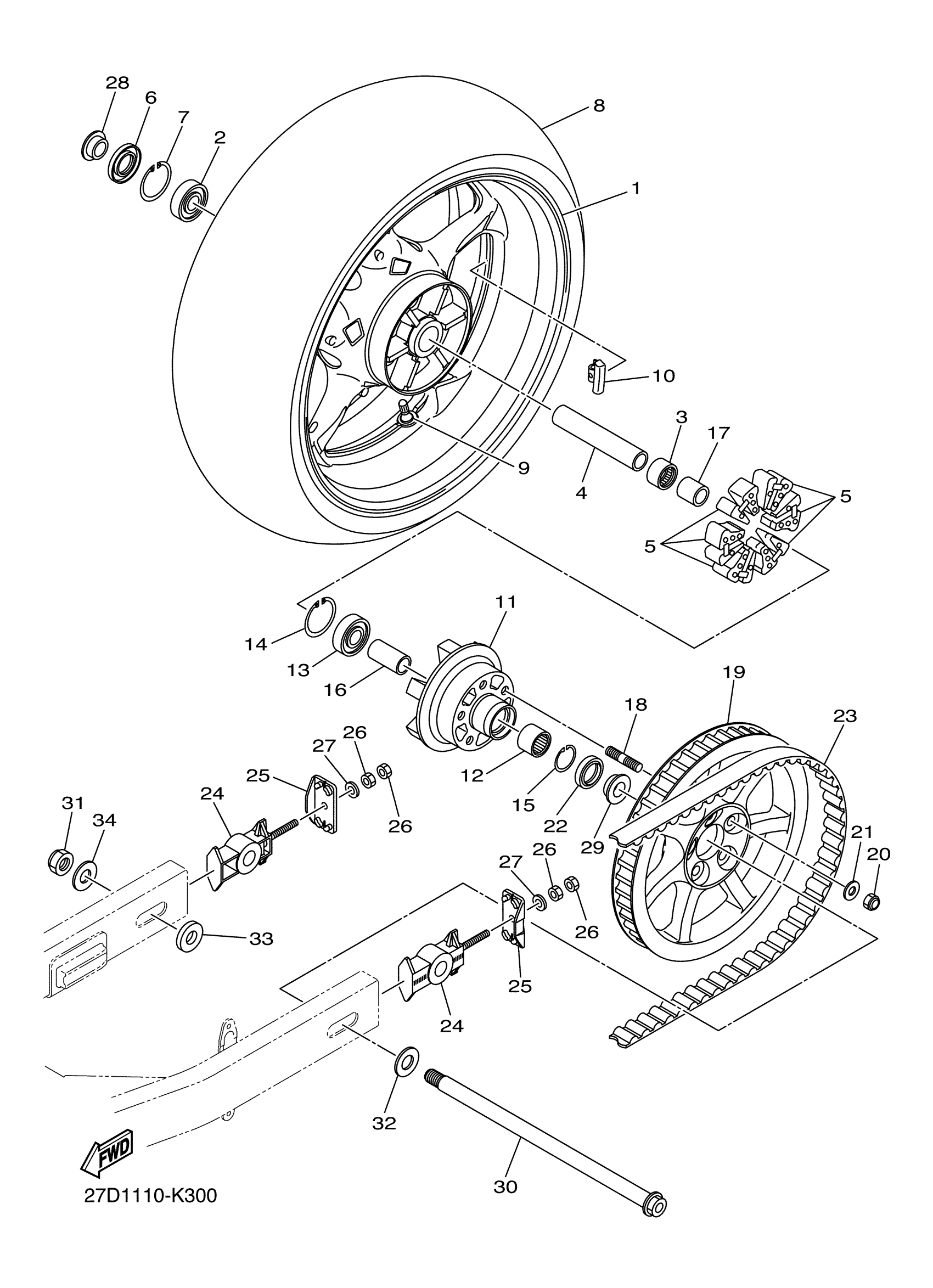

Find the part on the Rear Wheel diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Stryker (XVS13CBR) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, REAR

27D-25338-01-P0

—
Out of stock

2

BEARING(3BC)

93306-30437-00

1
Out of stock

3

BEARING

93320-32811-00

1
Out of stock

4

SPACER, BEARING

1D7-25317-00-00

1
Out of stock

5

DAMPER

1D7-25364-00-00

1
Out of stock

6

OIL SEAL

93106-28001-00

—
Out of stock

7

CIRCLIP(26H)

99009-52500-00

1
Out of stock

8

TIRE (210/40R18M/C 73H EXEDRA)

94121-18015-00

1
Out of stock

9

VALVE, RIM(2GH)

93900-00030-00

1
Out of stock

10

BALANCER, WHEEL

5MT-25398-00-00

1
Out of stock

10

BALANCER, WHEEL

5MT-25398-10-00

1
Out of stock

10

BALANCER, WHEEL

5MT-25398-20-00

—
Out of stock

11

CLUTCH, HUB

27D-25366-00-00

—
Out of stock

12

BEARING

93311-32698-00

1
Out of stock

13

BEARING(3BC)

93306-30437-00

1
Out of stock

14

CIRCLIP(26H)

99009-52500-00

1
Out of stock

15

CIRCLIP

93450-35163-00

—
Out of stock

16

COLLAR, WHEEL

27D-25376-00-00

—
Out of stock

17

COLLAR, WHEEL

1D7-25383-00-00

—
Out of stock

18

BOLT, STUD

95612-12630-00

—
Out of stock

19

SPROCKET, DRIVEN (70T)

3D8-25470-01-00

—
Out of stock

20

NUT, U

95614-12100-00

—
Out of stock

21

WASHER, PLATE

90201-12045-00

—
Out of stock

22

OIL SEAL (30X42X8-102)

93106-30004-00

—
Out of stock

23

BELT

3D8-46241-01-00

—
Out of stock

24

PULLER, CHAIN 1

5S7-25388-00-00

—
Out of stock

25

PLATE 1

5S7-2539F-00-00

—
Out of stock

26

NUT(2UJ)

95304-08600-00

—
Out of stock

27

.. WASHER, PLATE

92990-08600-00

1
Out of stock

28

COLLAR

90387-20033-00

—
Out of stock

29

COLLAR(3BC)

90387-202X9-00

—
Out of stock

30

AXLE, WHEEL

5S7-25381-00-00

—
Out of stock

31

NUT, SELF-LOCKING

90185-18009-00

—
Out of stock

32

WASHER, PLATE

90201-20029-00

—
Out of stock

33

COLLAR, CALIPER

27D-2583B-00-00

—
Out of stock

34

WASHER, PLATE

90201-18029-00

—
Out of stock
