2012 Yamaha Stryker (XVS13CBR) Stand Footrest Diagram

← All diagrams

Find the part on the Stand Footrest diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

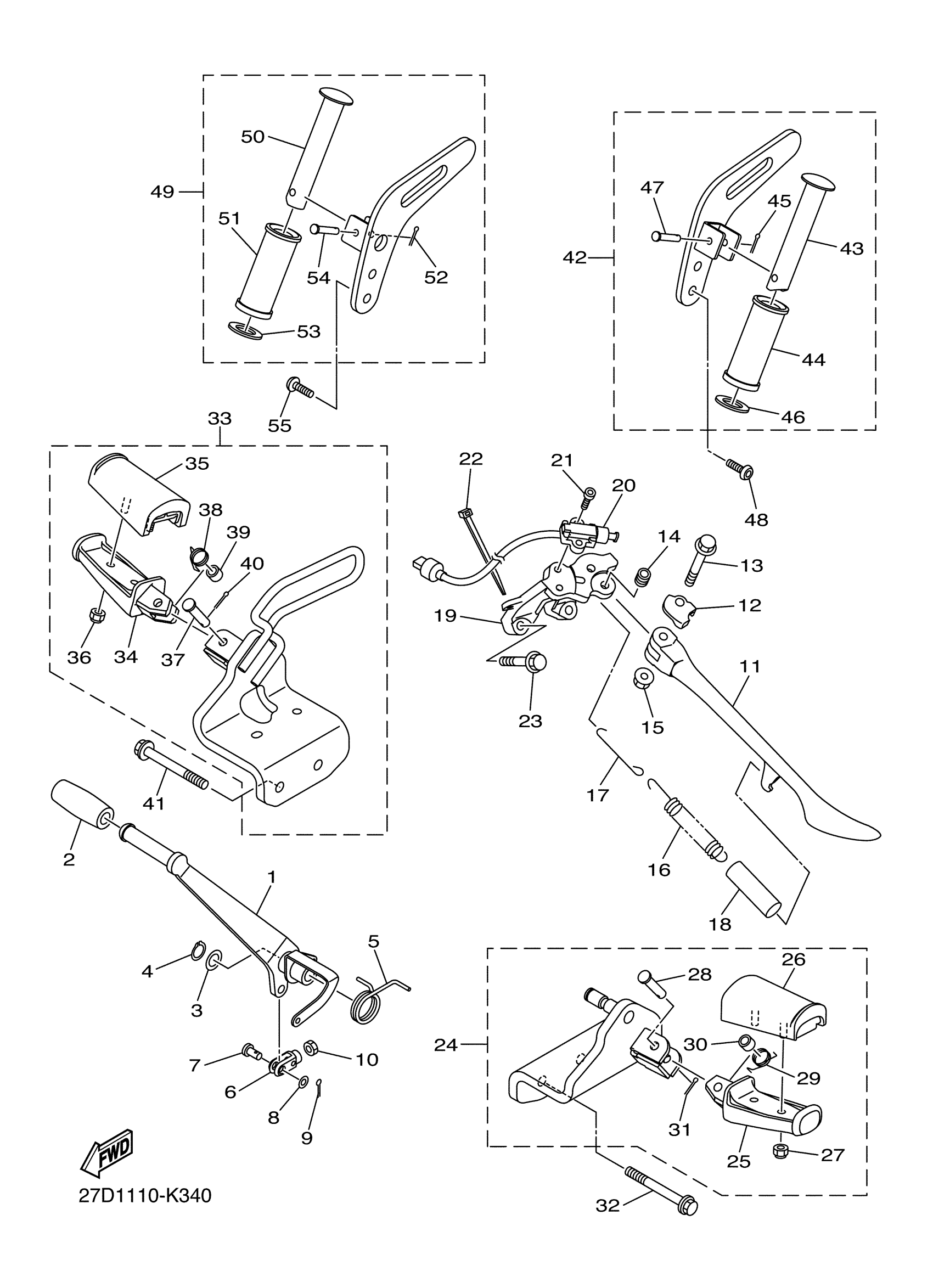

2012 Yamaha Stryker (XVS13CBR) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

27D-27211-00-00

1
Out of stock

2

COVER, SHIFT PEDAL

5VN-18113-00-00

1
Out of stock

3

WASHER, PLATE (5K7)

90201-124E4-00

1
Out of stock

4

CIRCLIP(10Y)

99009-12400-00

1
Out of stock

5

SPRING, RETURN

27D-27216-00-00

1
Out of stock

6

JOINT

4FM-27222-00-00

1
Out of stock

7

PIN, CLEVIS(2YK)

90240-08124-00

1
Out of stock

8

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

9

PIN, COTTER (648)

91490-20015-00

1
Out of stock

10

NUT, HEXAGON SMALL

95317-08700-00

1
Out of stock

11

STAND, SIDE

5S7-27311-00-00

—
Out of stock

12

WASHER

5S7-27322-00-00

—
Out of stock

13

BOLT, FLANGE

90105-10315-00

1
Out of stock

14

COLLAR(3XP)

90387-1003G-00

1
Out of stock

15

NUT, SELF-LOCKING

90185-10008-00

1
Out of stock

16

SPRING, TENSION

90506-35007-00

—
Out of stock

17

LINK, SIDE STAND

3D8-27315-00-00

—
Out of stock

18

HOSE (L70)

90445-22327-00

—
Out of stock

19

BRACKET, SIDE STAND

3D8-27321-00-00

—
Out of stock

20

SWITCH, SIDE STAND

27D-82566-30-00

—
Out of stock

21

BOLT, HEXAGON SOCKET HEAD

90110-05025-00

1
Out of stock

22

BAND

1UA-82591-00-00

—
Out of stock

23

BOLT, FLANGE

90105-10158-00

—
Out of stock

24

FRONT FOOTREST ASSY (LEFT)

27D-27410-10-00

—
Out of stock

25

FOOTREST

1NH-27451-00-00

—
Out of stock

26

COVER, FOOTREST

4VR-27413-00-00

—
Out of stock

27

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock

28

PIN, CLEVIS (2A6)

91701-08038-00

—
Out of stock

29

SPRING, TORSION(1MY)

90508-18696-00

—
Out of stock

30

COLLAR(1HX)

90387-087K5-00

—
Out of stock

31

PIN, COTTER

91490-25020-00

—
Out of stock

32

BOLT, FLG.(SMALL HEAD)

95024-10070-00

—
Out of stock

33

FRONT FOOTREST ASSY (RIGHT)

27D-27420-00-00

—
Out of stock

34

FOOTREST

1NH-27461-00-00

—
Out of stock

35

COVER, FOOTREST

4VR-27413-00-00

—
Out of stock

36

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock

37

PIN, CLEVIS (2A6)

91701-08038-00

—
Out of stock

38

SPRING, TORSION(1MY)

90508-18696-00

—
Out of stock

39

COLLAR(1HX)

90387-087K5-00

—
Out of stock

40

PIN, COTTER

91490-25020-00

—
Out of stock

41

BOLT, FLG.(SMALL HEAD)

95024-10080-00

—
Out of stock

42

REAR FOOTREST ASSY 1

27D-27430-00-00

—
Out of stock

43

FOOTREST, REAR 1

2GV-27431-00-00

—
Out of stock

44

COVER, REAR FOOTREST

5S7-27433-00-00

—
Out of stock

45

PIN, COTTER (648)

91490-20015-00

1
Out of stock

46

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

47

PIN, CLEVIS (1Y8)

91701-06032-00

—
Out of stock

48

BOLT,HEX. SOCKET BUTTON

90111-08045-00

—
Out of stock

49

REAR FOOTREST ASSY 2

27D-27440-00-00

—
Out of stock

50

FOOTREST, REAR 1

2GV-27431-00-00

—
Out of stock

51

COVER, REAR FOOTREST

5S7-27433-00-00

—
Out of stock

52

PIN, COTTER (648)

91490-20015-00

1
Out of stock

53

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

54

PIN, CLEVIS (1Y8)

91701-06032-00

—
Out of stock

55

BOLT,HEX. SOCKET BUTTON

90111-08045-00

—
Out of stock
