2012 Yamaha Stryker (XVS13CBR) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

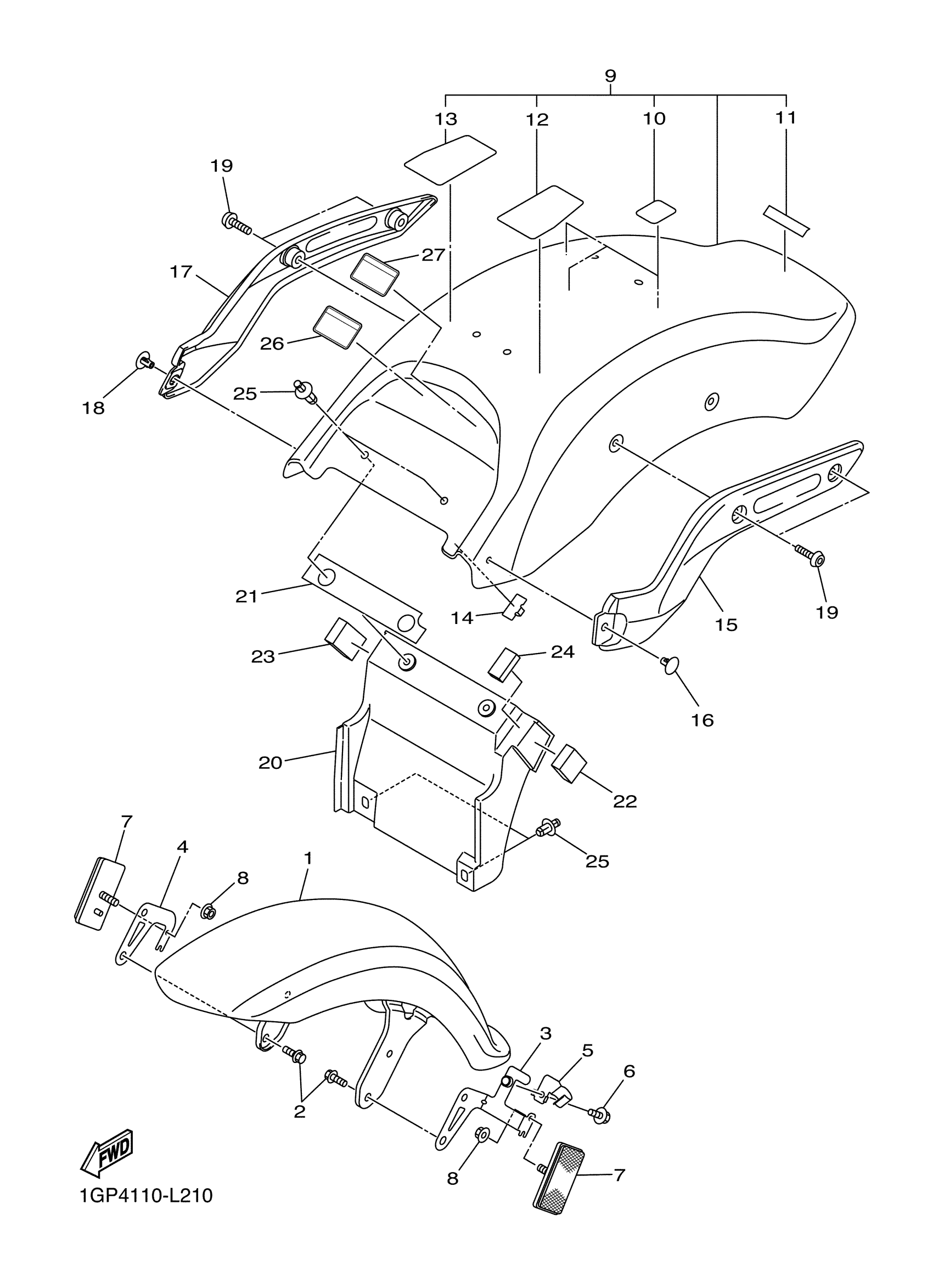

2012 Yamaha Stryker (XVS13CBR) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FENDER COMP.

27D-YK215-11-P3

1
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

3

STAY 1

27D-21587-00-00

—
Out of stock

4

STAY 2

27D-21588-00-00

—
Out of stock

5

HOLDER, BRAKE HOSE

27D-25887-00-00

—

$13.29

In stock

6

BOLT, FLANGE(4MY)

95027-06010-00

1
Out of stock

7

FRONT REFLECTOR ASSY

11H-85110-01-00

1

$20.92

In stock

8

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

9

REAR FENDER COMP.

27D-W2161-90-P3

1
Out of stock

10

SEAL

5PX-21669-01-00

1

$9.91

In stock

11

EMBLEM, YAMAHA

3WF-2153E-71-00

1

$4.48

In stock

12

SEAL, 2

27D-216A2-00-00

—
Out of stock

13

SEAL, 3

27D-216A3-00-00

—
Out of stock

14

CLAMP

90465-04020-00

—
Out of stock

15

STAY 1

27D-2164F-00-00

—
Out of stock

16

RIVET(4KM)

90269-05074-00

—

$1.60

In stock

17

STAY 2

27D-2164G-00-00

—
Out of stock

18

RIVET(4KM)

90269-05074-00

—

$1.60

In stock

19

BOLT

90111-08033-00

—
Out of stock

20

GUARD, MUD

27D-21629-00-00

—
Out of stock

21

DAMPER 1

3D8-21638-00-00

—
Out of stock

22

DAMPER, PLATE

90520-13001-00

—
Out of stock

23

DAMPER, PLATE

90520-13002-00

—
Out of stock

24

MOLE

7CF-22869-00-00

—

$0.88

In stock

25

RIVET(4PH)

90269-07077-00

—

$6.92

In stock

26

PLATE, ROUTING 2

5RU-21686-00-00

—

$4.95

In stock

27

PLATE, ROUTING

34B-21684-00-00

—

$6.46

In stock
