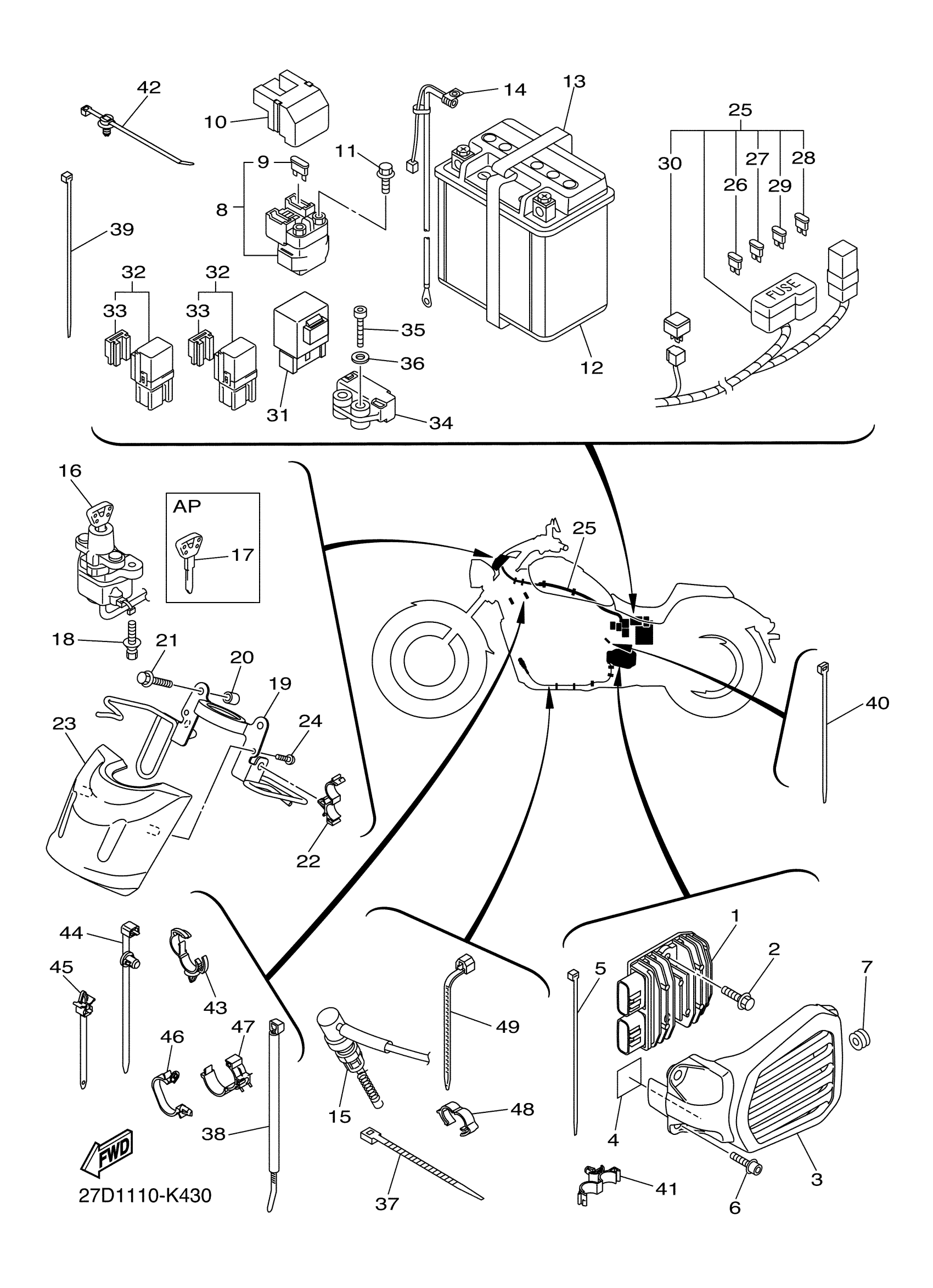

Yamaha XVS13CBR (STRYKER) 27D4 2012 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

27D-81960-00-00

Unavailable

2

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

3

CASE, REGULATOR

3D8-21247-02-00

Unavailable

4

DAMPER

2GH-24185-00-00

$0.73

5

CLAMP

5Y9-12491-00-00

$6.99

6

BOLT, HEXAGON SOCKET HEAD

90110-06215-00

$5.60

7

GROMMET(3VD)

90480-12550-00

$8.49

8

STARTER RELAY ASSY (RC19-074)

3D8-81940-00-00

$113.99

9

FUSE (10A)

42X-82151-00-00

$4.32

10

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

11

BOLT, FLANGE

95022-06008-00

$8.49

12

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

13

BAND, BATTERY

4AS-82131-01-00

$15.49

14

WIRE, MINUS LEAD

27D-82116-00-00

Unavailable

15

STOP SWITCH ASSY

27D-82530-00-00

Unavailable

16

MAIN SWITCH STEERING LOCK

3D8-82501-02-00

Unavailable

17

BLANK KEY

4BH-82511-09-00

Unavailable

18

BOLT

90109-08196-00

Unavailable

19

BRACKET 1

27D-2334G-00-00

Unavailable

20

COLLAR (J10)

90387-06026-00

Unavailable

21

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

22

CLAMP

90464-16006-00

Unavailable

23

COVER, MAIN SWITCH

27D-82568-00-00

Unavailable

24

SCREW, TRUSS TAP.

97707-40014-00

Unavailable

25

WIRE HARNESS ASSY

27D-82590-01-00

Unavailable

26

. FUSE (10A)

67F-82151-40-00

Unavailable

27

FUSE (15A)

67F-82151-50-00

Unavailable

28

FUSE (50A)

5JW-82151-10-00

Unavailable

29

FUSE

5JJ-82151-20-00

Unavailable

30

DIODE ASSY

3XV-81980-00-00

Unavailable

31

RELAY ASSY

5VK-81950-33-00

Unavailable

32

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

33

HOLDER,RELAY

5EA-81952-00-00

Unavailable

34

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

35

BOLT

91312-04025-00

Unavailable

36

WASHER, PLATE

90201-04027-00

Unavailable

37

BAND

1UA-82591-00-00

Unavailable

38

CLAMP ASSY

27D-82360-00-00

Unavailable

39

CLAMP

5Y9-12491-00-00

$6.99

40

CLAMP

90464-80002-00

Unavailable

41

CLAMP

90464-16012-00

Unavailable

42

CLAMP 1

5RU-12491-00-00

Unavailable

43

CLAMP(4AP)

90464-20181-00

Unavailable

44

CLAMP

90464-40001-00

Unavailable

45

CLAMP(2TV)

90464-10112-00

Unavailable

46

CLAMP(4NK)

90464-24230-00

Unavailable

47

CLAMP(4KM)

90464-25217-00

Unavailable

48

CLAMP

90464-16003-00

Unavailable

49

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
