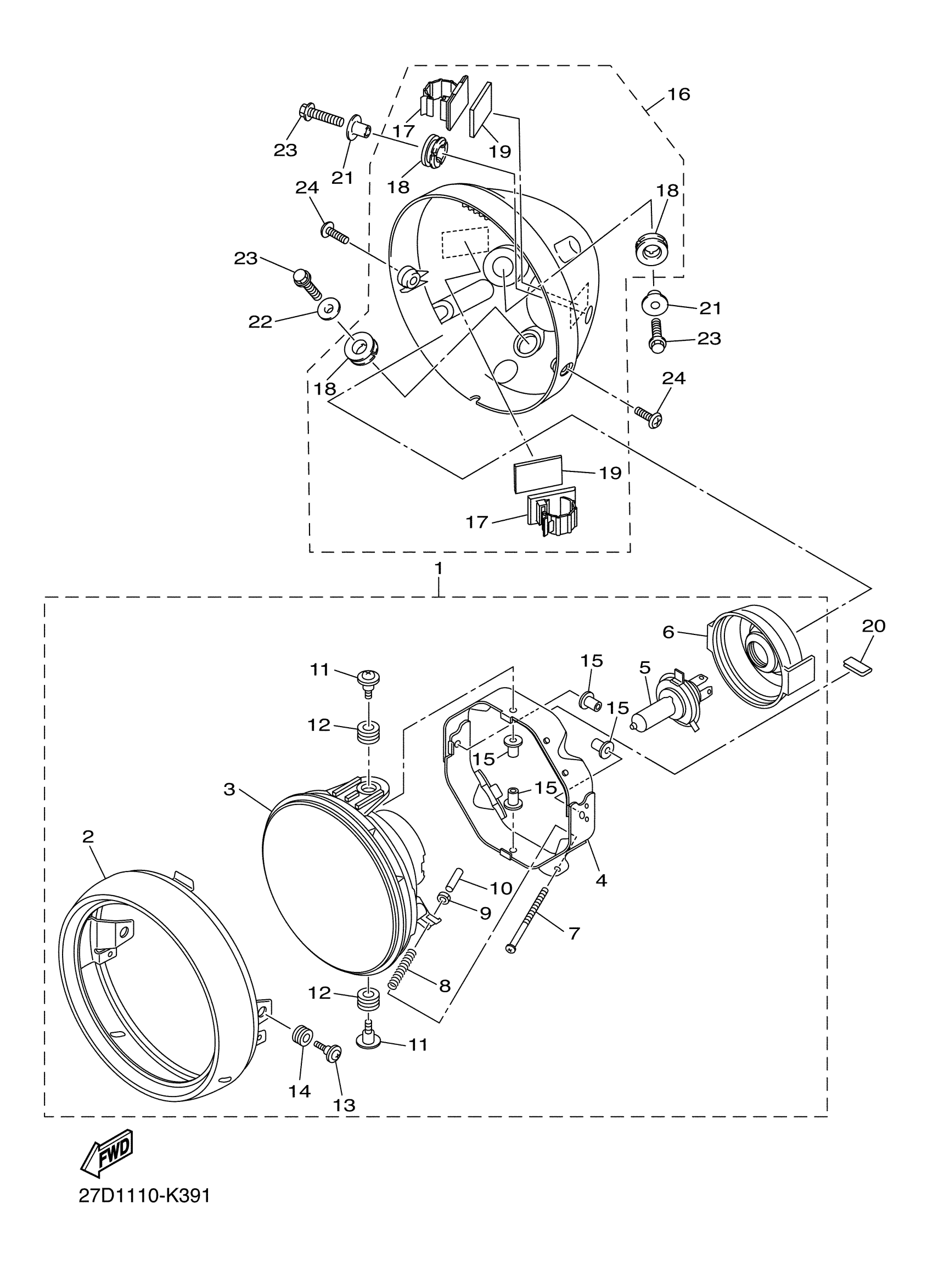

Yamaha XVS13CBCB (STRYKER CA) 1SJ2 2012 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5S7-84310-00-00

$467.99

2

RIM, HEADLIGHT

5S7-84315-00-00

$95.99

3

LENS ASSY

5PX-84320-00-00

$186.99

4

STAY, HEADLIGHT 1

5PX-84318-00-00

$67.99

5

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

6

COVER, SOCKET

5PX-84397-00-00

$39.99

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

$7.99

8

SPRING, SCREW

5PX-84332-00-00

$6.99

9

NUT, ADJUSTING

5PX-84334-00-00

$6.99

10

CAP,1

5PX-84385-00-00

$6.99

11

SCREW, RIM FITTING

5PX-84325-00-00

$7.99

12

GROMMET

5PX-84354-00-00

$6.99

13

SCREW, RIM FITTING

5PX-84125-00-00

$7.99

14

GROMMET

5PX-84352-00-00

$6.99

15

NUT

5PX-84317-00-00

$10.99

16

BODY ASSY

27D-84330-00-00

Unavailable

17

CLAMP

90464-17002-00

Unavailable

18

DAMPER, HEADLIGHT 1

4WM-84366-00-00

Unavailable

19

SEAL 1

5S7-28428-00-00

Unavailable

20

PROTECTOR

3MA-27491-00-00

Unavailable

21

COLLAR(36Y)

90387-067K8-00

Unavailable

22

COLLAR

90387-06170-00

Unavailable

23

BOLT, FLANGE

95022-06025-00

Unavailable

24

SCREW, BIND(4DN)

98980-05014-00

Unavailable
