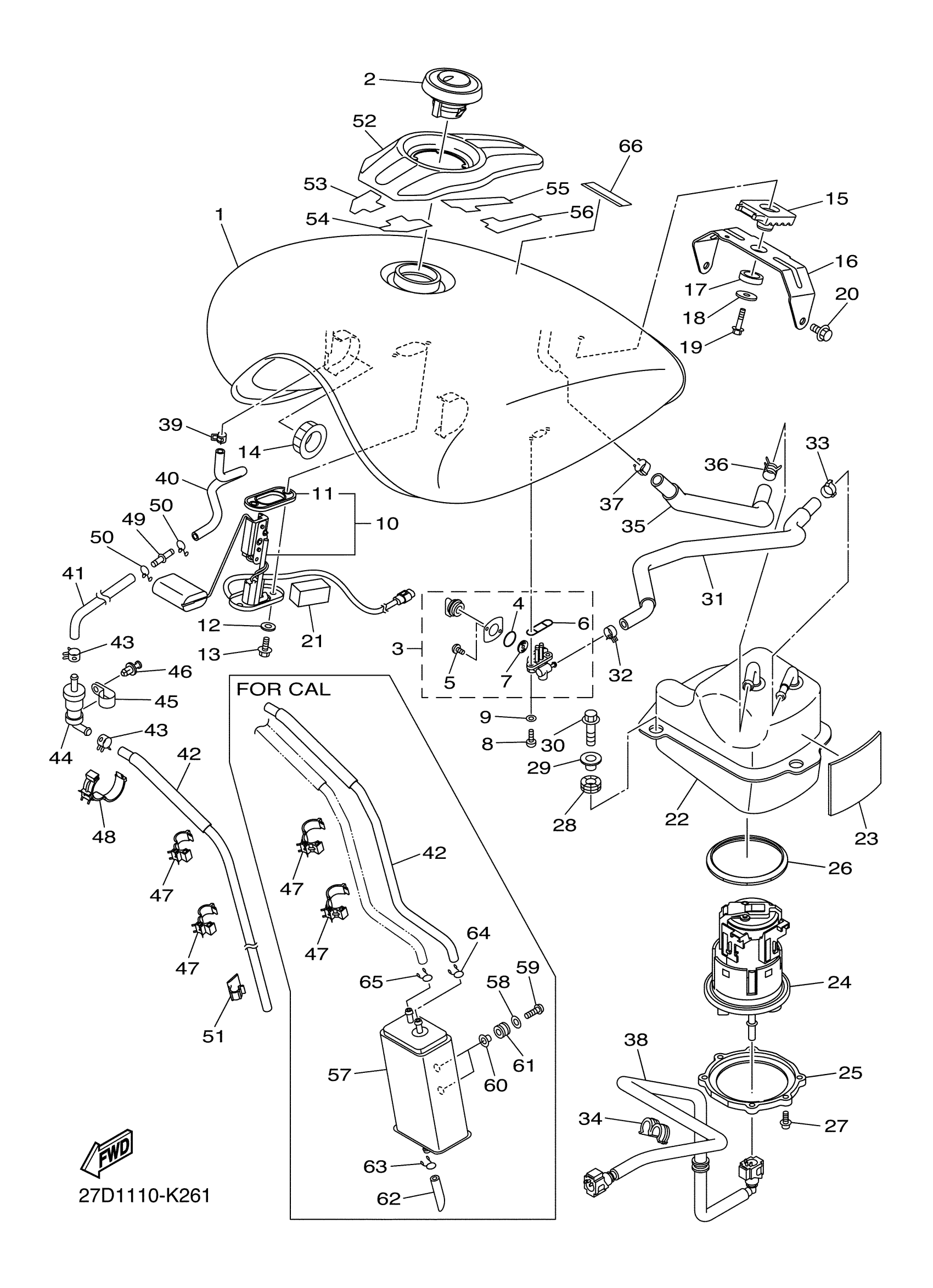

Yamaha XVS13CBCB (STRYKER CA) 1SJ2 2012 FUEL TANK Diagram
#
1
FUEL TANK COMP.
27D-YK241-00-P0
Unavailable
15
DAMPER, LOCATING 2
1D7-24182-00-00
Unavailable
16
BRACKET, TANK FITTING
27D-2413Y-00-00
Unavailable
17
DAMPER, LOCATING 3
4TR-24183-00-00
Unavailable
18
COLLAR
90387-06177-00
Unavailable
19
BOLT, FLANGE
95812-06030-00
Unavailable
20
BOLT, FLANGE
95817-08012-00
Unavailable
21
DAMPER
2YK-21747-00-00
Unavailable
22
PUMP CASE COMP.
3D8-244A0-00-00
Unavailable
23
DAMPER, PLATE 2
3D8-2414J-00-00
Unavailable
24
FUEL PUMP COMP
3D8-13907-03-00
Unavailable
25
BRACKET, FUEL PUMP
3D8-24491-10-00
Unavailable
26
O-RING
19B-24486-01-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
28
DAMPER, LOCATING 5
3D8-24185-00-00
Unavailable
29
COLLAR(2TV)
90387-062U9-00
Unavailable
30
BOLT, FLANGE
95817-06025-00
Unavailable
31
PIPE, FUEL 1
27D-24311-00-00
Unavailable
32
CLIP
90467-12004-00
Unavailable
33
CLIP
90467-130A1-00
Unavailable
34
CLAMP
90464-19001-00
Unavailable
35
PIPE 2
27D-24312-00-00
Unavailable
36
CLIP
90467-160A2-00
Unavailable
37
CLIP
5PX-2411M-00-00
Unavailable
38
PIPE, FUEL 1
3D8-13971-00-00
Unavailable
39
CLIP
90467-090A5-00
Unavailable
40
PIPE 13
27D-24324-00-00
Unavailable
41
PIPE 14
27D-24325-00-00
Unavailable
42
PIPE 3
27D-2486G-00-00
Unavailable
43
CLIP
90467-09001-00
Unavailable
44
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
45
CLAMP
90464-15014-00
Unavailable
46
RIVET
90269-05005-00
Unavailable
47
CLAMP(4HM)
90464-15192-00
Unavailable
48
CLAMP
90464-30252-00
Unavailable
49
JOINT
4XY-14568-00-00
Unavailable
50
CLIP
90467-090A2-00
Unavailable
51
CLAMP
90464-10012-00
Unavailable
52
COVER, TANK
27D-241B1-00-00
Unavailable
53
SEAL 7
27D-241A7-00-00
Unavailable
54
SEAL
27D-24329-00-00
Unavailable
55
SEAL 8
27D-241A8-00-00
Unavailable
56
SEAL 2
27D-2414E-00-00
Unavailable
66
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
