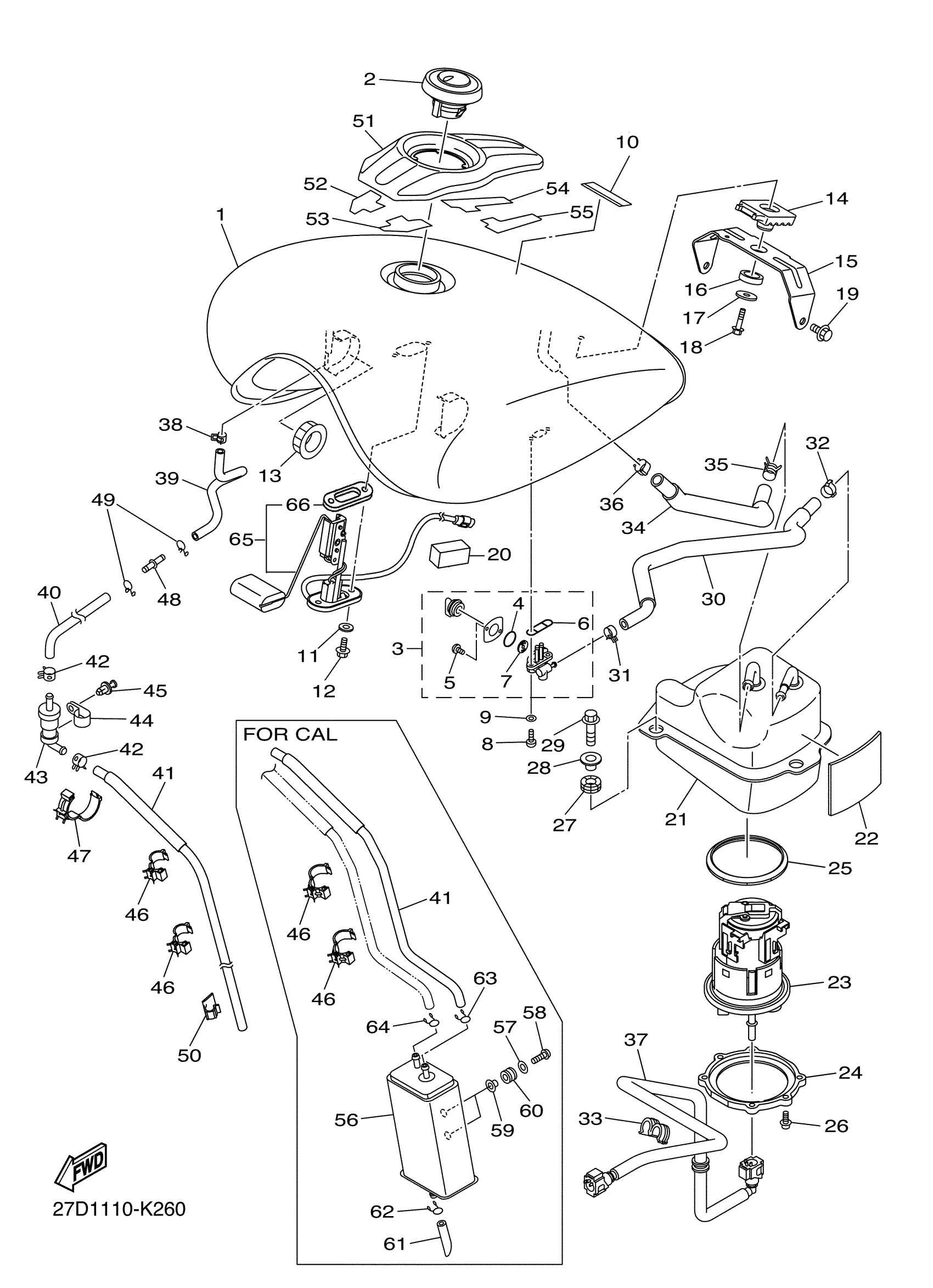

Yamaha XVS13CAO (STRYKER) 27D10 2011 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (VIVID PURPLISH BLUE COCKTAIL 5)

27D-Y2410-00-01

Unavailable

2

CAP ASSY

4NK-24602-20-00

$129.99

3

FUEL COCK ASSY 1

4JT-24500-20-00

$108.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

SCREW

90149-06108-00

$1.01

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

LABEL, CAUTION

5GK-2118K-00-00

$6.99

11

WASHER, PLATE(3MB)

90202-05187-00

$1.38

12

BOLT, FLANGE

95817-06016-00

$2.75

13

DAMPER, LOCATING

4H7-24181-00-00

$6.99

14

DAMPER, LOCATING 2

1D7-24182-00-00

Unavailable

15

BRACKET, TANK FITTING

27D-2413Y-00-00

Unavailable

16

DAMPER, LOCATING 3

4TR-24183-00-00

Unavailable

17

COLLAR

90387-06177-00

Unavailable

18

BOLT, FLANGE

95812-06030-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

Unavailable

20

DAMPER

2YK-21747-00-00

Unavailable

21

PUMP CASE COMP.

3D8-244A0-00-00

Unavailable

22

DAMPER, PLATE 2

3D8-2414J-00-00

Unavailable

23

FUEL PUMP COMP

3D8-13907-03-00

Unavailable

24

BRACKET, FUEL PUMP

3D8-24491-10-00

Unavailable

25

O-RING

19B-24486-01-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

27

DAMPER, LOCATING 5

3D8-24185-00-00

Unavailable

28

COLLAR(2TV)

90387-062U9-00

Unavailable

29

BOLT, FLANGE

95817-06025-00

Unavailable

30

PIPE, FUEL 1

27D-24311-00-00

Unavailable

31

CLIP

90467-12004-00

Unavailable

32

CLIP

90467-130A1-00

Unavailable

33

CLAMP

90464-19001-00

Unavailable

34

PIPE 2

27D-24312-00-00

Unavailable

35

CLIP

90467-160A2-00

Unavailable

36

CLIP

5PX-2411M-00-00

Unavailable

37

PIPE, FUEL 1

3D8-13971-00-00

Unavailable

38

CLIP

90467-090A5-00

Unavailable

39

PIPE 13

27D-24324-00-00

Unavailable

40

PIPE 14

27D-24325-00-00

Unavailable

41

PIPE 1

27D-2486A-00-00

Unavailable

42

CLIP

90467-09001-00

Unavailable

43

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

44

CLAMP

90464-15014-00

Unavailable

45

RIVET

90269-05005-00

Unavailable

46

CLAMP(4GY)

90464-20191-00

Unavailable

47

CLAMP

90464-30252-00

Unavailable

48

JOINT

4XY-14568-00-00

Unavailable

49

CLIP

90467-090A2-00

Unavailable

51

COVER, TANK

27D-241B1-00-00

Unavailable

52

SEAL 7

27D-241A7-00-00

Unavailable

53

SEAL

27D-24329-00-00

Unavailable

54

SEAL 8

27D-241A8-00-00

Unavailable

55

SEAL 2

27D-2414E-00-00

Unavailable

56

CANISTER ASSY

5PX-24170-00-00

Unavailable

57

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

58

BOLT

90111-06046-00

Unavailable

59

COLLAR(42G)

90387-062L2-00

Unavailable

60

GROMMET (1E5)

90480-13163-00

Unavailable

61

PIPE 11

27D-24322-00-00

Unavailable

62

CLIP

90467-100A1-00

Unavailable

63

CLIP

90467-090A2-00

Unavailable

64

CLIP

90467-090A2-00

Unavailable

65

SENDER UNIT ASSY, FUEL METER

27D-85752-11-00

Unavailable

66

GASKET, SENDER UNIT

3D8-85753-00-00

Unavailable
