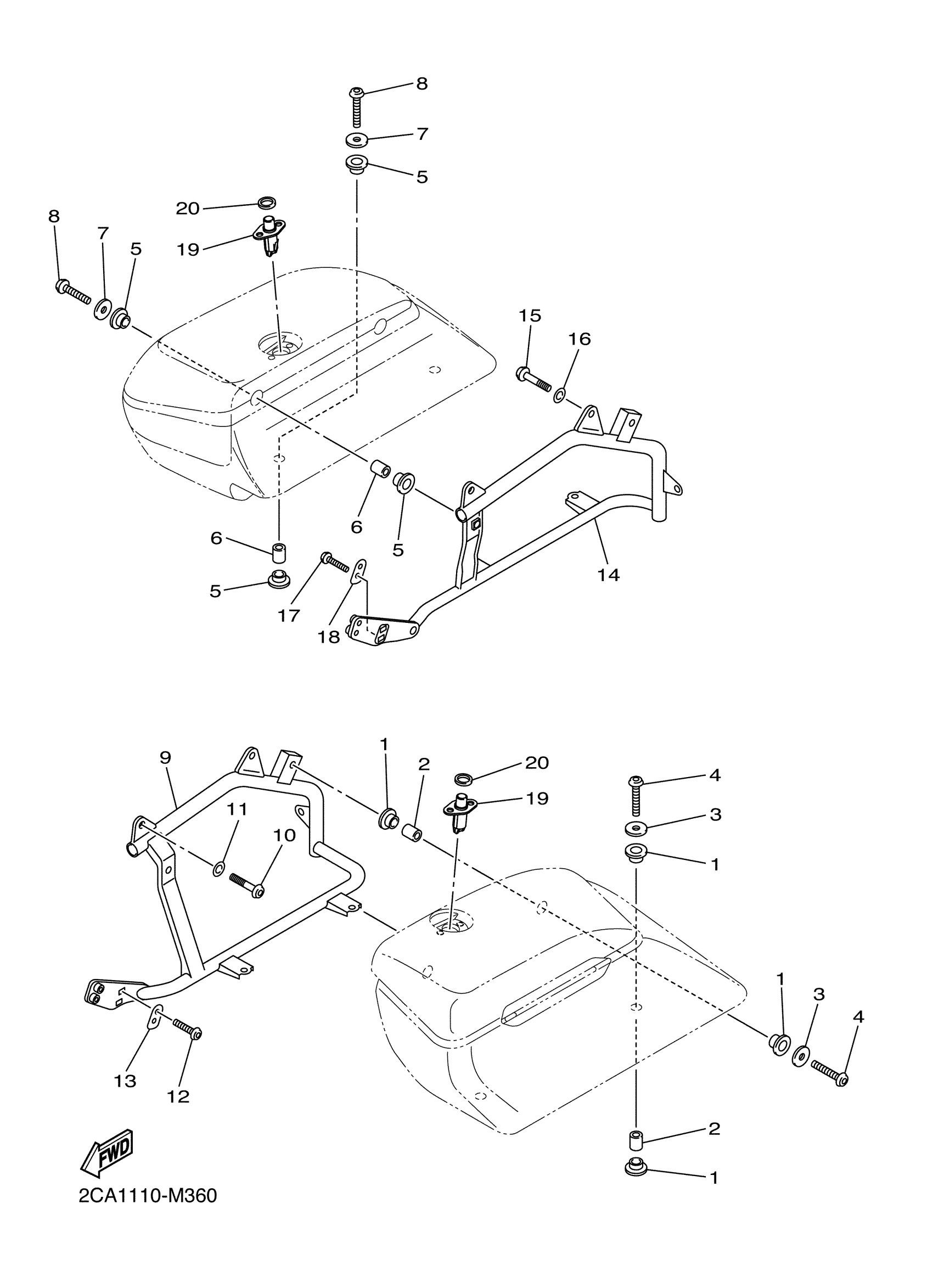

Yamaha XVS13BGHCB (V STAR 1300 DELUXE CA) 2CAL 2017 SADDLEBAG MOUNTING Diagram

#

Description
Price

1

GROMMET

90480-20004-00

$2.70

2

COLLAR

90387-08077-00

$6.08

3

WASHER (23T)

90201-065G8-00

$5.75

4

BOLT, BUTTON HEAD

92012-06025-00

$2.69

5

GROMMET

90480-20004-00

$2.70

6

COLLAR

90387-08077-00

$6.08

7

WASHER (23T)

90201-065G8-00

$5.75

8

BOLT, BUTTON HEAD

92012-06025-00

$2.69

9

FRAME, SADDLEBAG 1

5S6-28473-01-00

$276.98

10

BOLT, BUTTON HEAD

92012-08065-00

$6.23

11

. WASHER

92902-08200-00

$0.22

12

BOLT,HEX. SOCKET BUTTON

90111-08046-00

$5.96

13

PLATE

5S6-28417-00-00

$9.39

14

FRAME, SADDLEBAG 2

5S6-28474-01-00

Unavailable

15

BOLT, BUTTON HEAD

92012-08065-00

$6.23

16

. WASHER

92902-08200-00

$0.22

17

BOLT,HEX. SOCKET BUTTON

90111-08046-00

$5.96

18

PLATE

5S6-28417-00-00

$9.39

19

LOCK ASSY.1

5S6-28408-00-00

Unavailable

20

SEAL 1

5S6-28428-00-00

Unavailable
