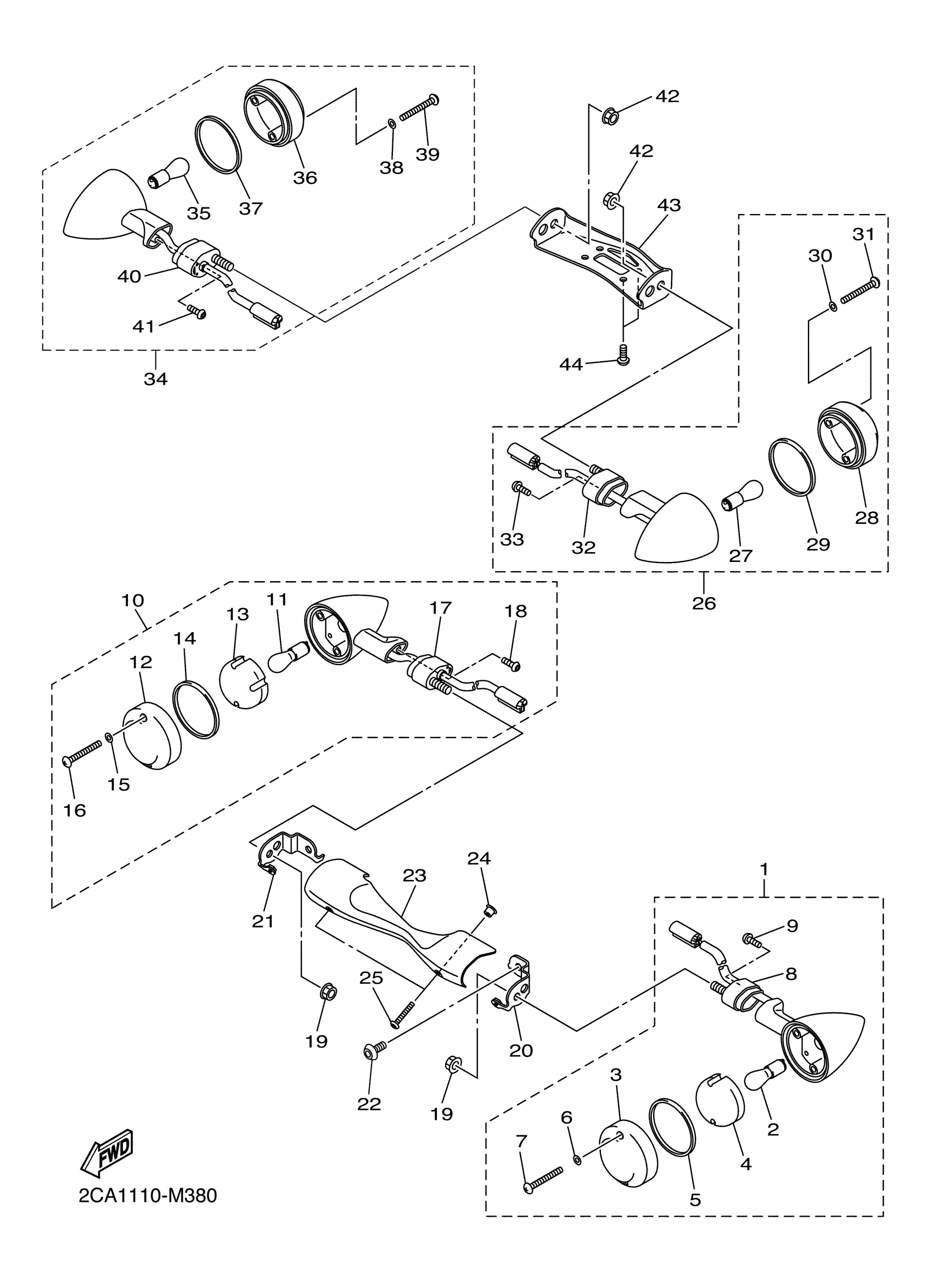

Yamaha XVS13BGHCB (V STAR 1300 DELUXE CA) 2CAL 2017 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGH

3D8-83310-10-00

Unavailable

2

BULB

1A2-84714-50-00

$11.36

3

LENS, FLASHER

3D8-83312-00-00

$10.53

4

LENS, INNER 1

3D8-8333L-00-00

Unavailable

5

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

6

WASHER

3D8-83348-00-00

$3.32

7

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

8

STAY, FLASHER 2

3D8-83369-00-00

$31.11

9

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

10

FRONT FLASHER LIGH

3D8-83320-10-00

Unavailable

11

BULB

1A2-84714-50-00

$11.36

12

LENS, FLASHER

3D8-83312-00-00

$10.53

13

LENS, INNER 1

3D8-8333L-00-00

Unavailable

14

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

15

WASHER

3D8-83348-00-00

$3.32

16

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

17

STAY, FLASHER 2

3D8-83369-00-00

$31.11

18

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

19

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

20

STAY, FLASHER 1

3D8-83318-20-00

Unavailable

21

STAY, FLASHER 2

3D8-83328-10-00

Unavailable

22

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

23

COVER, OUTER 1

3D8-23122-20-00

Unavailable

24

COLLAR

90387-06255-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05024-00

Unavailable

26

REAR FLASHER LIGHT

3D8-83330-20-00

Unavailable

27

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

28

LENS, FLASHER

3D8-83312-00-00

$10.53

29

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

30

WASHER

3D8-83348-00-00

$3.32

31

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

32

STAY, FLASHER 2

3D8-83369-00-00

$31.11

33

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

34

REAR FLASHER LIGHT

3D8-83340-20-00

Unavailable

35

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

36

LENS, FLASHER

3D8-83312-00-00

$10.53

37

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

38

WASHER

3D8-83348-00-00

$3.32

39

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

40

STAY, FLASHER 2

3D8-83369-00-00

$31.11

41

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

42

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

43

STAY, FLASHER 1

3D8-83368-00-00

Unavailable

44

BOLT

90111-06031-00

Unavailable
