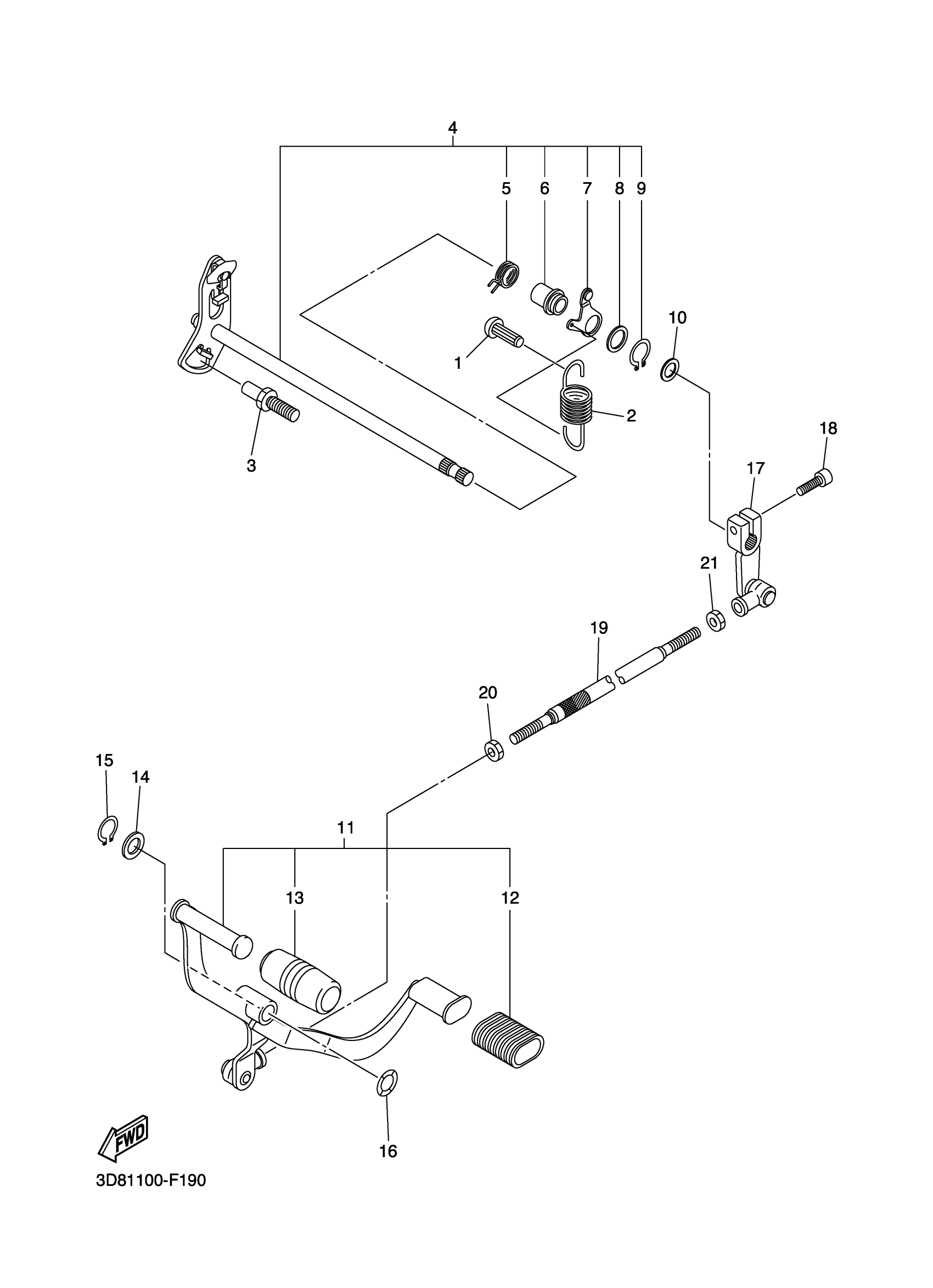

Yamaha XVS13BGFR (V STAR 1300 DELUXE) 2CAA 2015 SHIFT SHAFT Diagram

#

Description
Price

1

HOOK, SPRING

132-16346-00-00

$8.14

2

SPRING, TENSION

90506-18015-00

Unavailable

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

SHIFT SHAFT ASSY

3D8-18101-01-00

$141.68

5

SPRING, TORSION

90508-32040-00

$4.50

6

SPACER

3D8-18175-00-00

Unavailable

7

STOPPER LEVER ASSY

3D8-18140-00-00

$14.67

8

WASHER, PLATE (30X)

90201-177G4-00

$6.34

9

CIRCLIP(1EY)

99009-17400-00

$3.65

10

WASHER, PLATE (5N6)

90201-127E1-00

$3.45

11

SHIFT PEDAL ASSY

3D8-18110-12-00

$163.47

12

COVER, SHIFT PEDAL

22N-18113-00-00

$6.03

13

COVER, SHIFT PEDAL

5VN-18113-00-00

$12.22

14

WASHER, PLATE (5K7)

90201-124E4-00

$5.99

15

CIRCLIP(10Y)

99009-12400-00

$2.87

16

WASHER, WAVE (17W)

90206-12074-00

Unavailable

17

ARM, SHIFT

3D8-18112-01-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

ROD, SHIFT

3D8-18115-00-00

Unavailable

20

NUT (2H9)

90170-06228-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable
