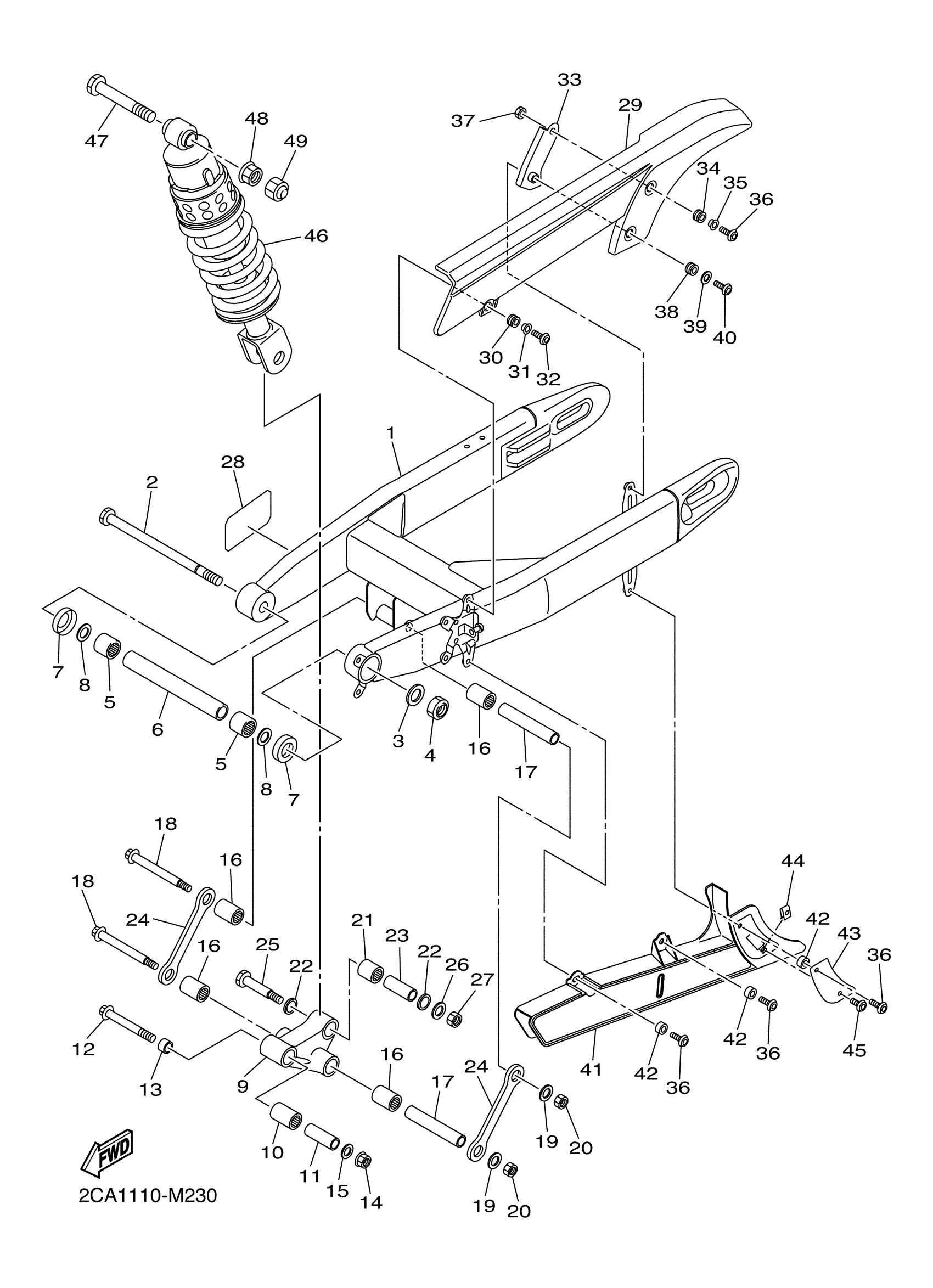

Yamaha XVS13BGFR (V STAR 1300 DELUXE) 2CAA 2015 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

3D8-22110-30-00

Unavailable

2

SHAFT, PIVOT

3D8-22141-01-00

$36.99

3

WASHER, PLATE

90201-16018-00

$8.49

4

NUT, SELF-LOCKING

90185-16002-00

$16.99

5

BEARING (4X7)

93320-32403-00

$46.99

6

BUSH 2

3D8-22124-00-00

Unavailable

7

COVER, THRUST 2

5EL-22129-00-00

$27.99

8

WASHER, PLATE

90201-243U9-00

$8.49

9

ARM, RELAY

3D8-2217A-00-00

Unavailable

10

BEARING, CYLINDRICAL(2GH)

93317-42060-00

$46.99

11

COLLAR(2MF)

90387-100T8-00

Unavailable

12

BOLT, FLANGE

90105-10233-00

$8.49

13

COLLAR

90387-10049-00

Unavailable

14

NUT, S/L FLANGE

95602-10200-00

$4.82

15

WASHER, PLATE(47X)

90201-101J1-00

$8.49

16

BEARING, CYLINDRICAL(2GH)

93317-41761-00

Unavailable

17

COLLAR(2GH)

90387-126T1-00

Unavailable

18

BOLT

90101-12027-00

Unavailable

19

WASHER, PLATE

90201-12045-00

Unavailable

20

NUT, U

95612-12100-00

Unavailable

21

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

22

OIL SEAL

93109-17071-00

Unavailable

23

COLLAR(3TJ)

90387-127W0-00

Unavailable

24

ARM 1

3D8-2217M-00-00

Unavailable

25

BOLT

90109-10024-00

Unavailable

26

WASHER, PLATE

90201-10035-00

Unavailable

27

NUT, U

95617-10100-00

Unavailable

28

PROTECTOR

5PX-21652-00-00

Unavailable

29

CASE, CHAIN

5S7-22311-00-00

Unavailable

30

GROMMET

90480-13004-00

Unavailable

31

COLLAR

90387-06171-00

Unavailable

32

SCREW(4DN)

90149-06302-00

Unavailable

33

STAY, CHAIN CASE

3D8-2213J-00-00

Unavailable

34

GROMMET

90480-13004-00

Unavailable

35

COLLAR

90387-06171-00

Unavailable

36

BOLT

90111-06038-00

Unavailable

37

NUT, HEXAGON

95380-06600-00

Unavailable

38

GROMMET

90480-13004-00

Unavailable

39

WASHER, PLATE

90201-06095-00

Unavailable

40

SCREW(4DN)

90149-06302-00

Unavailable

41

CASE, CHAIN 2

3D8-22312-00-00

Unavailable

42

COLLAR

90387-06106-00

Unavailable

43

PLATE, GUIDE 1

5S7-22341-00-00

Unavailable

44

NUT, SPRING(4ES)

90183-06069-00

Unavailable

45

SCREW(3XV)

90149-06298-00

Unavailable

46

SHOCK ABSORBER ASSY, REAR

3D8-22210-20-00

Unavailable

47

BOLT

90109-10028-00

Unavailable

48

NUT, S/L FLANGE

95602-10200-00

$4.82

49

CAP

5YU-2143A-00-00

Unavailable
