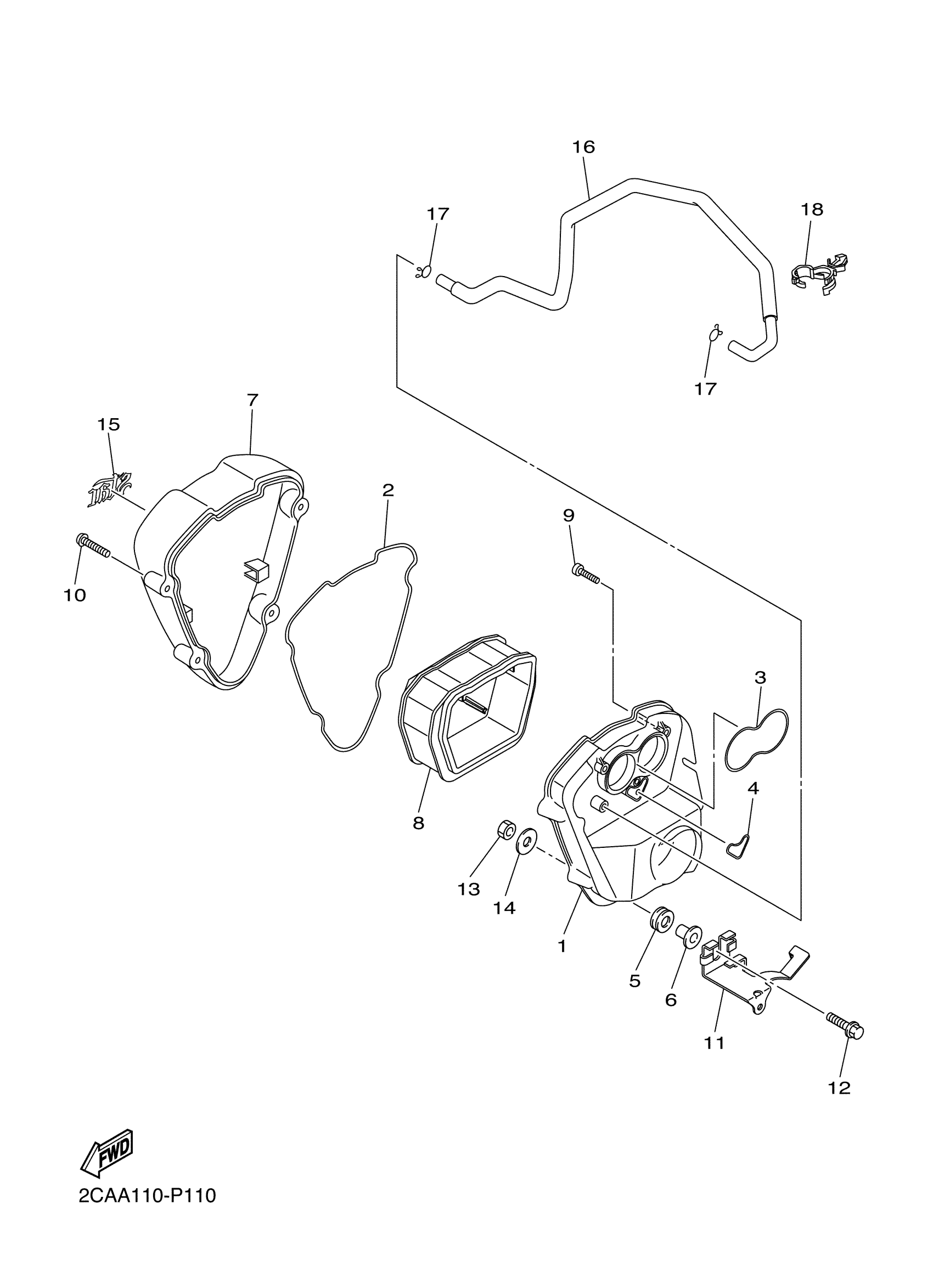

Yamaha XVS13BGFR (V STAR 1300 DELUXE) 2CAA 2015 INTAKE 2 Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

3D8-14411-02-00

$116.99

2

SEAL

51Y-14462-00-00

$18.49

3

SEAL

3D8-14457-00-00

$6.99

4

SEAL

3D8-14462-00-00

$6.99

5

GROMMET

90480-11006-00

$4.41

6

COLLAR(50M)

90387-087L0-00

$8.49

7

CASE, AIR CLEANER 2

1GP-14421-02-00

Unavailable

8

ELEMENT, AIR CLEANER

3D8-14451-00-00

$34.99

9

BOLT

91312-05025-00

$8.49

10

BOLT,HEX. SOCKET BUTTON

90111-05024-00

$4.19

11

STAY 1

3D8-14498-10-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

NUT, FLANGE

95702-06500-00

$2.39

14

WASHER, PLATE

90201-06088-00

Unavailable

15

EMBLEM

1GP-1441K-10-00

Unavailable

16

PIPE, BREATHER 1

3D8-11166-00-00

Unavailable

17

CLIP(62Y)

90467-15M14-00

Unavailable

18

CLAMP

90464-20009-00

Unavailable
