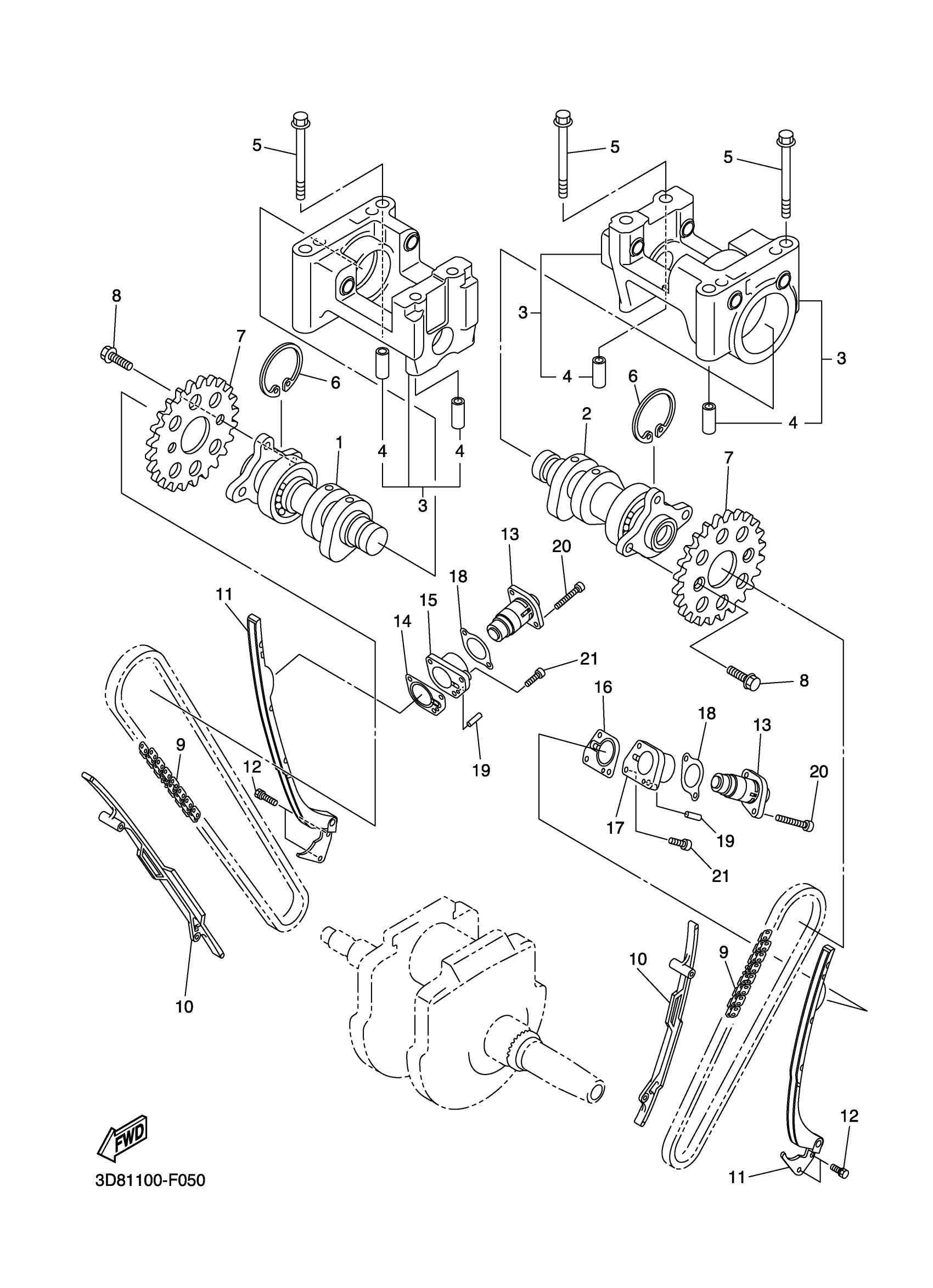

Yamaha XVS13BGFR (V STAR 1300 DELUXE) 2CAA 2015 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

3D8-12170-10-00

$213.30

2

CAMSHAFT ASSY 2

3D8-12180-10-00

Unavailable

3

CARRIER, CAMSHAFT 1

3D8-12194-00-00

$178.71

4

PIN, DOWEL(3XW)

91808-16023-00

$5.26

5

BOLT, WASHER BASED(1AA)

90105-06362-00

$2.53

6

CIRCLIP(26H)

99009-52500-00

$10.02

7

SPROCKET, CAM CHAIN

3D8-12176-00-00

$36.79

8

BOLT, FLANGE

90105-07004-00

$4.66

9

CHAIN

94591-57132-00

$35.23

10

GUIDE, STOPPER 1

3D8-12231-00-00

$18.17

11

GUIDE, STOPPER 2

3D8-12241-01-00

$73.74

12

BOLT, WITH WASHER

90119-06173-00

Unavailable

13

TENSIONER ASSY, CAM CHAIN

3D8-12210-10-00

Unavailable

14

GASKET, TENSIONER CASE

3D8-12213-00-00

$6.79

15

SPACER

27D-11445-00-00

$21.02

16

GASKET

3D8-12214-00-00

Unavailable

17

SPACER

27D-11485-00-00

Unavailable

18

GASKET

3D8-11195-00-00

Unavailable

19

PIN, DOWEL (341)

93603-09106-00

Unavailable

20

BOLT

91312-06045-00

Unavailable

21

BOLT(J17)

91312-06035-00

Unavailable
