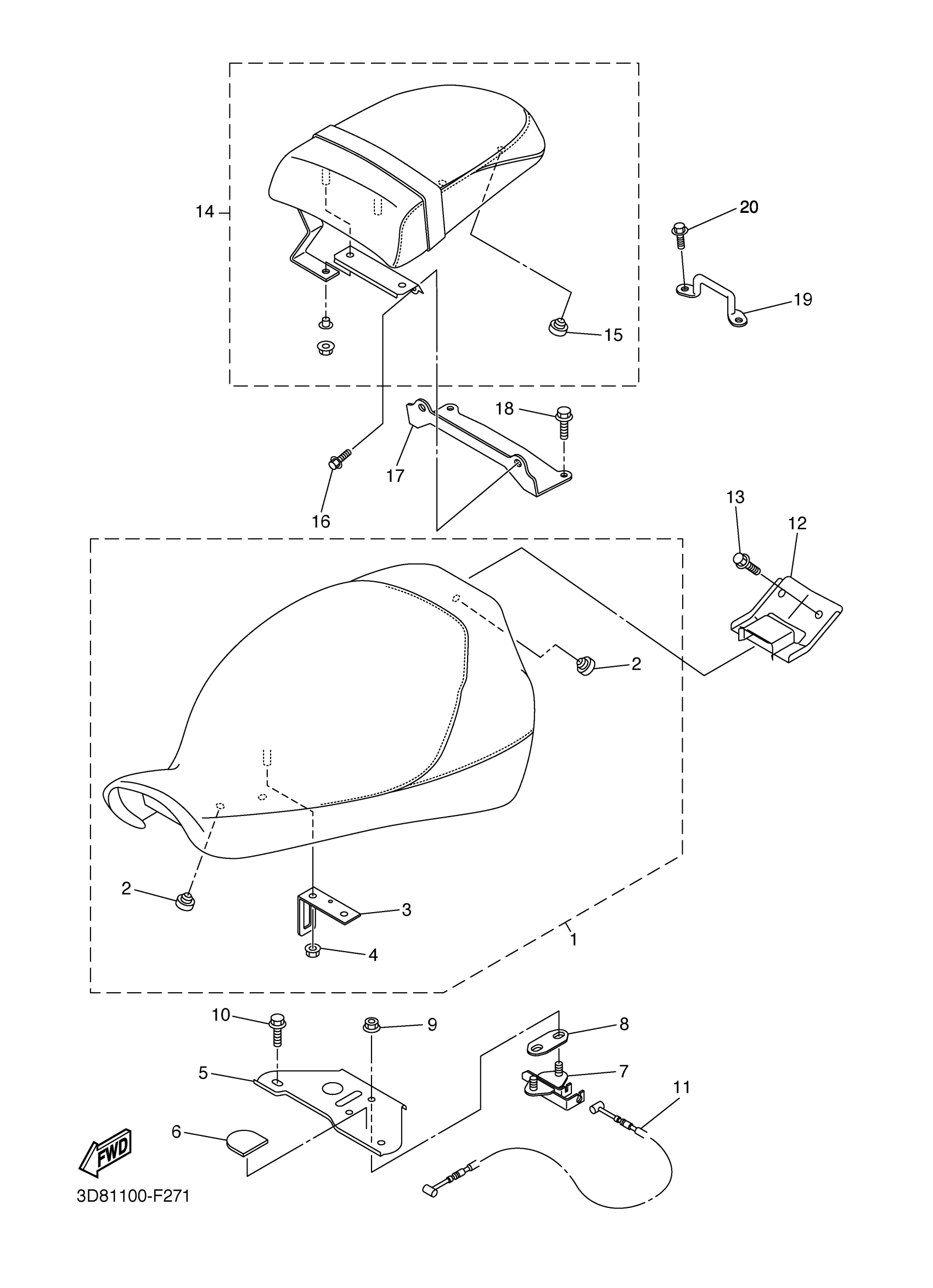

Yamaha XVS13AYW (V STAR 1300) 3D870 2009 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
3D8-24710-00-00
Unavailable
5
BRACKET, SEAT 1
3D8-21341-01-00
Unavailable
6
SEAL 2
5PX-21735-00-00
Unavailable
8
PLATE
4BP-24792-00-00
Unavailable
10
BOLT, FLANGE
95817-06014-00
Unavailable
12
BRACKET
3D8-2475N-00-00
Unavailable
14
TANDEM SEAT ASSY
3D8-24750-02-00
Unavailable
16
BOLT, FLANGE
95022-08012-00
Unavailable
17
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
Unavailable
18
BOLT, FLANGE
95022-08012-00
Unavailable
19
BRACKET 6
3D8-2475R-00-00
Unavailable
20
BOLT, FLANGE
95022-08012-00
Unavailable
