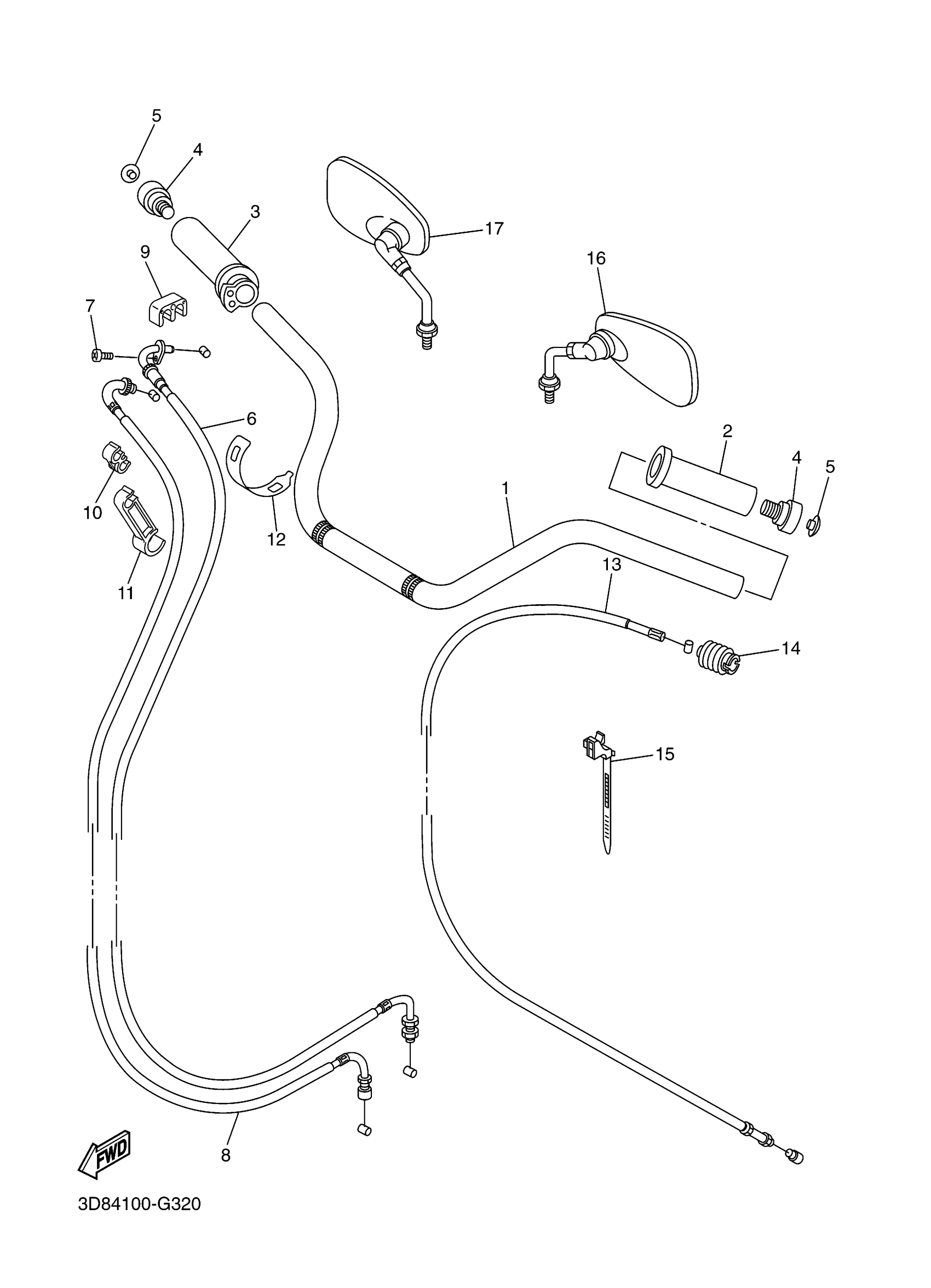

Yamaha XVS13AXS (V STAR 1300) 3D841 2008 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3D8-26111-01-00

Unavailable

2

GRIP

4NK-26241-01-00

Unavailable

3

GRIP ASSY

4XY-26240-00-00

$91.99

4

END, GRIP

5EL-26246-00-00

$46.99

5

PLUG(42X)

90338-10164-00

$9.49

6

WIRE, THROTTLE 1

3D8-26311-01-00

Unavailable

7

GASKET, EXHAUST

98507-05008-00

$3.55

8

CABLE, THROTTLE 2

3D8-26312-01-00

Unavailable

9

CLAMP

90464-07006-00

Unavailable

10

CLAMP(4KB)

90464-06214-00

$3.61

11

CLAMP

90464-13009-00

Unavailable

12

COVER 1

3D8-25715-00-00

Unavailable

13

CABLE, CLUTCH

3D8-26335-11-00

$59.99

14

BOOT, WIRE

1E6-26342-00-00

$30.99

15

CLAMP(4GY)

90464-15200-00

$3.88

16

REAR VIEW MIRROR ASSY (LEFT)

4NK-26280-10-00

Unavailable

17

REAR VIEW MIRROR ASSY (RIGHT)

4NK-26290-10-00

Unavailable
