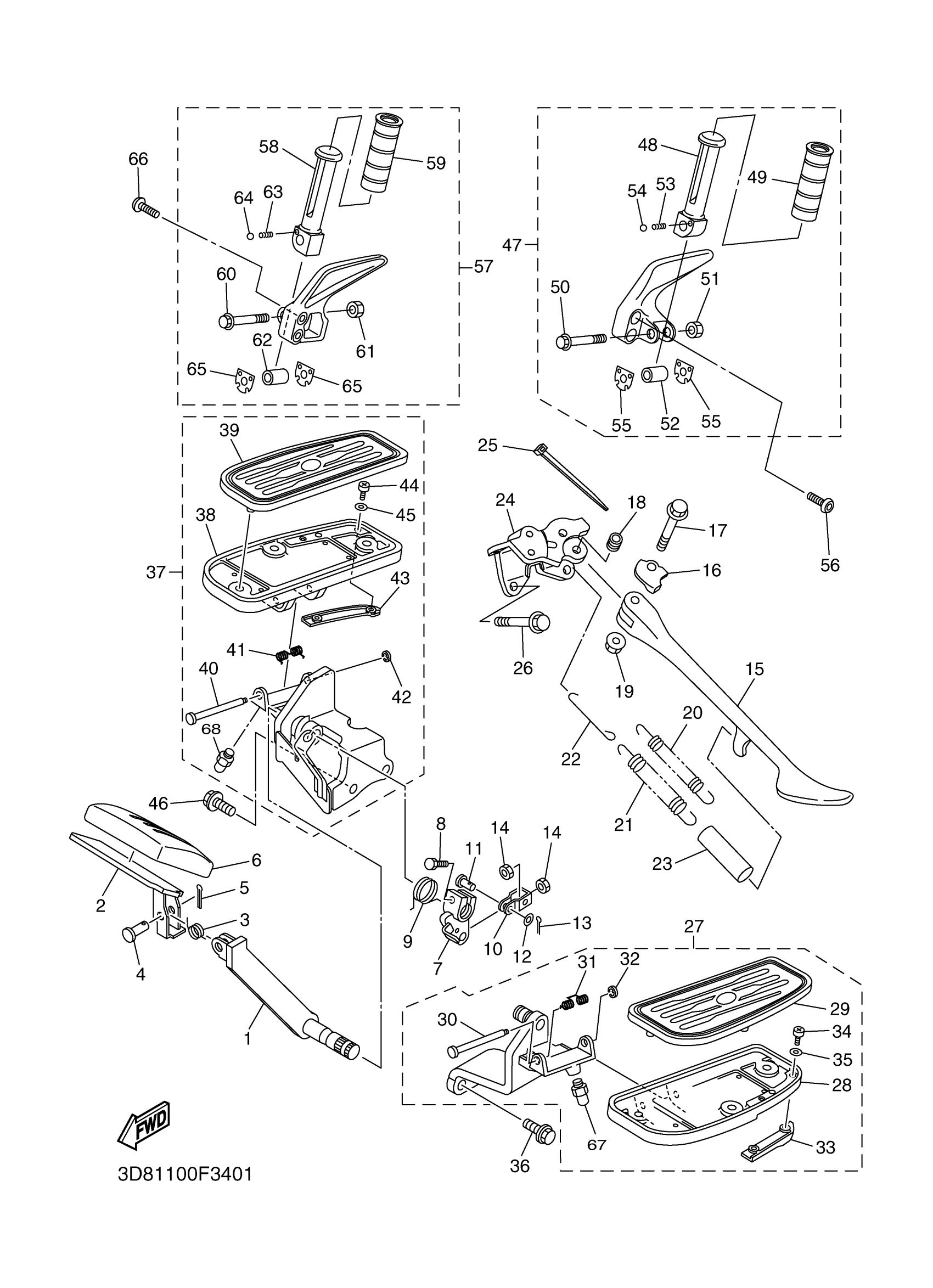

Yamaha XVS13AXS (V STAR 1300) 3D841 2008 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5KS-27211-00-00

Unavailable

2

PEDAL, BRAKE

4NK-27242-00-00

Unavailable

3

SPRING, TORSION

90508-18023-00

$7.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

CAP

1D7-27285-00-00

$29.99

7

LEVER

5EL-27262-01-00

Unavailable

8

BOLT(3DM)

97024-06020-00

$8.49

9

SPRING, RETURN

3D8-27216-00-00

$14.49

10

JOINT

4BP-27222-02-00

$29.99

11

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

PIN, COTTER (648)

91490-20015-00

$2.20

14

NUT, HEXAGON SMALL

95317-08700-00

$9.49

15

STAND, SIDE

4KU-27311-13-00

Unavailable

16

WASHER

3D8-27322-00-00

Unavailable

17

BOLT, WASHER BASED

90105-10012-00

Unavailable

18

COLLAR(3XP)

90387-1003G-00

Unavailable

19

NUT, S/L FLANGE

95602-10200-00

Unavailable

20

SPRING, TENSION(4KU)

90506-23490-00

Unavailable

21

SPRING, TENSION

90506-29507-00

Unavailable

22

LINK, SIDE STAND

3D8-27315-00-00

Unavailable

23

HOSE (L60)

90445-16641-00

Unavailable

24

BRACKET, SIDE STAND

3D8-27321-00-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

BOLT, FLANGE

90105-10158-00

Unavailable

27

FRONT FOOTREST ASSY (LEFT)

3D8-27410-00-00

Unavailable

27

FRONT FOOTREST ASSY (LEFT)

3D8-27410-10-00

Unavailable

28

FOOTREST

4NK-27451-10-00

Unavailable

29

COVER, FOOTREST

4XY-27413-01-00

Unavailable

30

SHAFT

3D8-27427-00-00

Unavailable

31

SPRING, RETURN

1D7-27426-00-00

Unavailable

32

CIRCLIP(53L)

99001-06600-00

Unavailable

33

MOLE 1

4WM-27496-00-00

Unavailable

34

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

35

. WASHER, PLAIN

92990-05200-00

Unavailable

36

BOLT, WASHER BASED

90105-102A3-00

Unavailable

37

FRONT FOOTREST ASSY (RIGHT)

3D8-27420-00-00

Unavailable

38

FOOTREST

4NK-27461-10-00

Unavailable

39

COVER, FOOTREST

4XY-27423-01-00

Unavailable

40

SHAFT

3D8-27427-00-00

Unavailable

41

SPRING, RETURN

1D7-27426-00-00

Unavailable

42

CIRCLIP(53L)

99001-06600-00

Unavailable

43

MOLE 2

4WM-27497-00-00

Unavailable

44

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

45

. WASHER, PLAIN

92990-05200-00

Unavailable

46

BOLT, WASHER BASED

90105-102A3-00

Unavailable

47

REAR FOOTREST ASSY 1

3D8-27430-00-00

Unavailable

48

FOOTREST, REAR 1

1D7-27431-00-00

Unavailable

49

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

50

BOLT

90109-06016-00

Unavailable

51

NUT, U FLANGE

95604-06200-00

Unavailable

52

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

53

SPRING, COMPRESSION

90501-15001-00

Unavailable

54

BALL

93501-04011-00

Unavailable

55

WASHER, SPECIAL

1D7-27437-00-00

Unavailable

56

BOLT,HEX. SOCKET BUTTON

90111-08042-00

Unavailable

57

REAR FOOTREST ASSY 2

3D8-27440-00-00

Unavailable

58

FOOTREST, REAR 2

1D7-27441-00-00

Unavailable

59

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

60

BOLT

90109-06016-00

Unavailable

61

NUT, U FLANGE

95604-06200-00

Unavailable

62

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

63

SPRING, COMPRESSION

90501-15001-00

Unavailable

64

BALL

93501-04011-00

Unavailable

65

WASHER, SPECIAL

1D7-27437-00-00

Unavailable

66

BOLT,HEX. SOCKET BUTTON

90111-08042-00

Unavailable

67

BOLT

5PX-27435-09-00

Unavailable

68

BOLT

5PX-27435-09-00

Unavailable
