Partiron

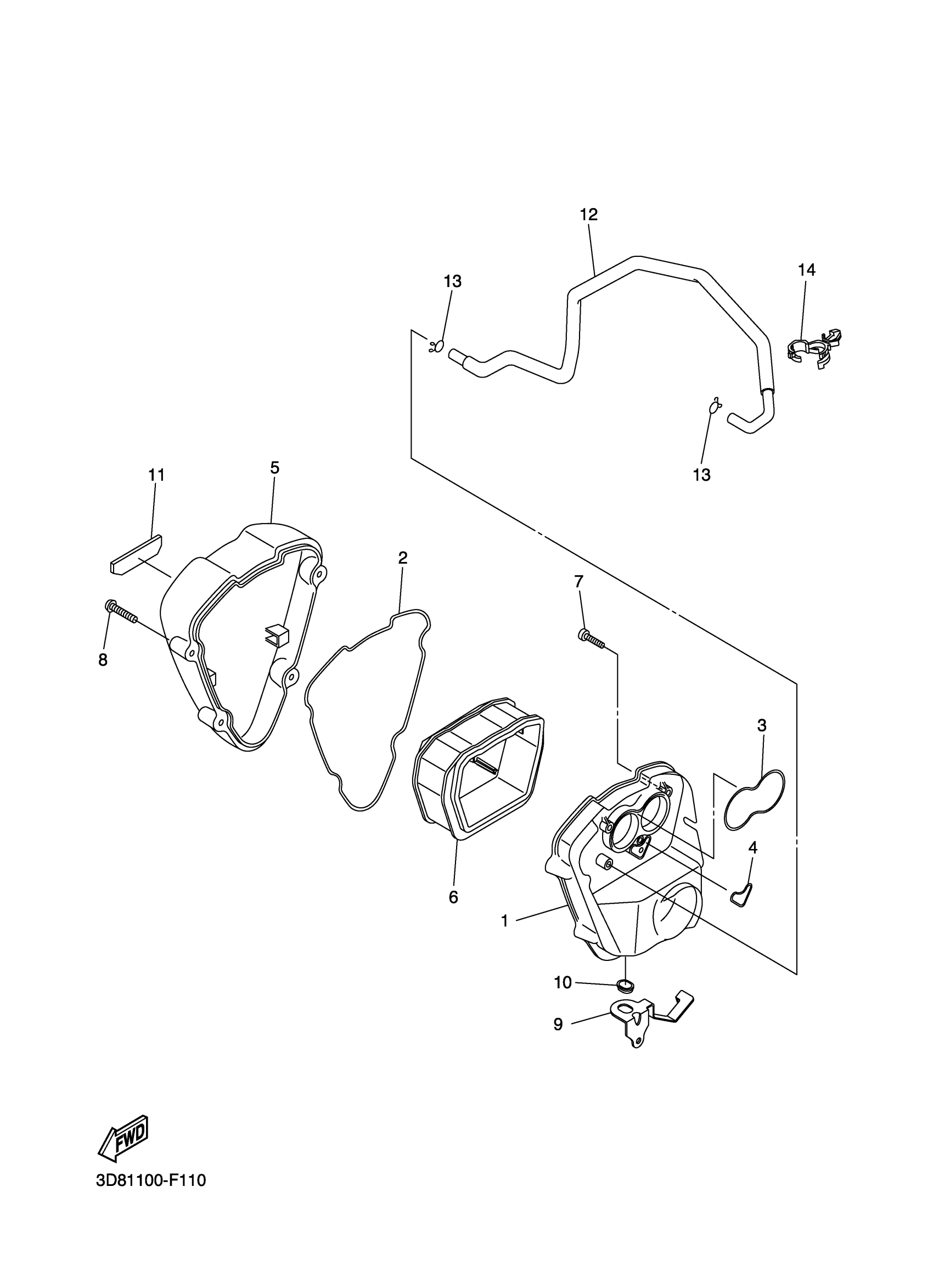

Yamaha XVS13AXS (V STAR 1300) 3D841 2008 INTAKE 2 Diagram

#

Description
Price

1

CASE, AIR FILTER SET

99999-03824-00

Unavailable

2

SEAL

51Y-14462-00-00

$11.61

3

SEAL

3D8-14457-00-00

$5.55

4

SEAL

3D8-14462-00-00

$5.55

5

CASE, AIR CLEANER 2

3D8-14421-01-00

$184.36

6

ELEMENT, AIR CLEANER

3D8-14451-00-00

$31.68

7

BOLT

91312-05025-00

$5.81

8

BOLT,HEX. SOCKET BUTTON

90111-05024-00

$3.33

9

STAY 1

3D8-14498-00-00

Unavailable

10

GROMMET(4DN)

90480-01558-00

$3.68

11

EMBLEM 2

3D8-1442K-00-00

Unavailable

12

PIPE, BREATHER 1

3D8-11166-00-00

Unavailable

13

CLIP(62Y)

90467-15M14-00

$3.21

14

CLAMP

90464-20009-00

$1.85
