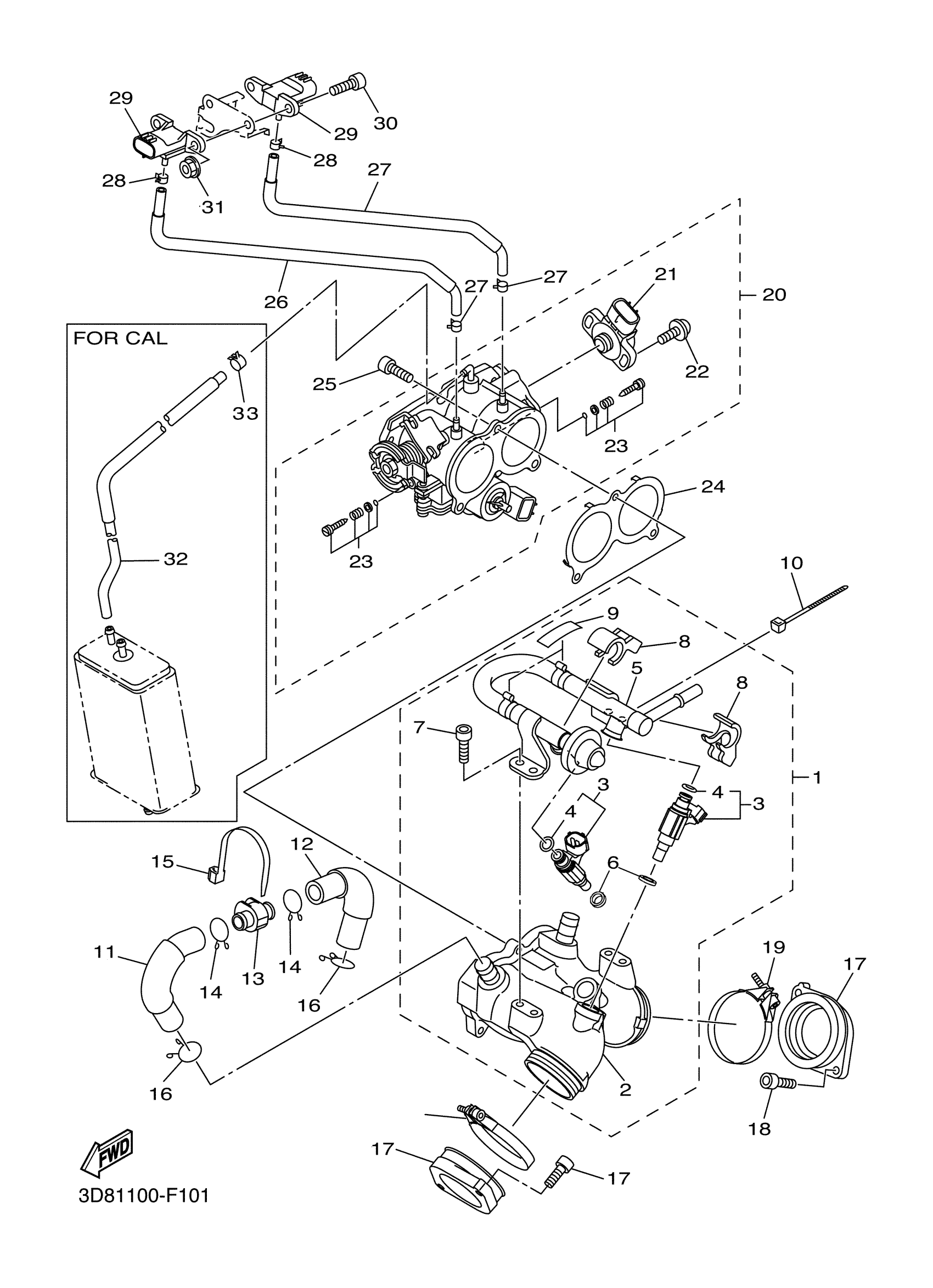

Yamaha XVS13AXS (V STAR 1300) 3D841 2008 INTAKE 1 Diagram

#

Description
Price

1

CARBURETOR JOINT ASSY

3D8-13590-30-00

$712.99

2

MANIFOLD

3D8-13640-00-00

Unavailable

3

INJECTOR ASSY

3D8-13761-00-00

$202.28

4

O-RING

5FL-14147-00-00

$12.22

5

PIPE INLET ASSEMBLY

3D8-13930-10-00

$303.64

6

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

7

BOLT (33M)

91312-06014-00

$4.43

8

HOLDER

3D8-14261-00-00

Unavailable

9

PROTECTOR

3D8-1442F-00-00

$5.62

10

CLIP

4KM-14137-00-00

$5.18

11

PIPE, SILENCER

3D8-1441J-01-00

Unavailable

12

PIPE, SILENCER 2

3D8-1442J-01-00

Unavailable

13

PLUG

3D8-14862-00-00

Unavailable

14

CLIP

90467-18196-00

$5.53

15

CLAMP(4FM)

90464-15195-00

$2.57

16

CLIP

90467-18196-00

$5.53

17

JOINT, CARBURETOR 1

3D8-13586-00-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

HOSE CLAMP ASSY

90450-62006-00

Unavailable

20

THROTTLE BODY ASSY

3D8-13750-20-00

Unavailable

20

THROTTLE BODY ASSY

3D8-13750-30-00

Unavailable

21

THROTTLE SENSOR AS

8GL-85885-01-00

Unavailable

22

SCREW

4KM-24453-00-00

Unavailable

23

AIR SCREW SET

3D8-14104-00-00

Unavailable

24

SEAL

BL3-14467-00-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

26

HOSE, AIR

3D8-13895-00-00

Unavailable

27

HOSE, AIR

3D8-13895-00-00

Unavailable

28

CLIP(42X)

90467-07093-00

Unavailable

29

SENSOR, PRESSURE

5PS-82380-00-00

Unavailable

30

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

31

NUT, FLANGE

95702-06500-00

Unavailable

32

PIPE

3D8-14148-10-00

Unavailable

33

CLIP

90467-09120-00

Unavailable
