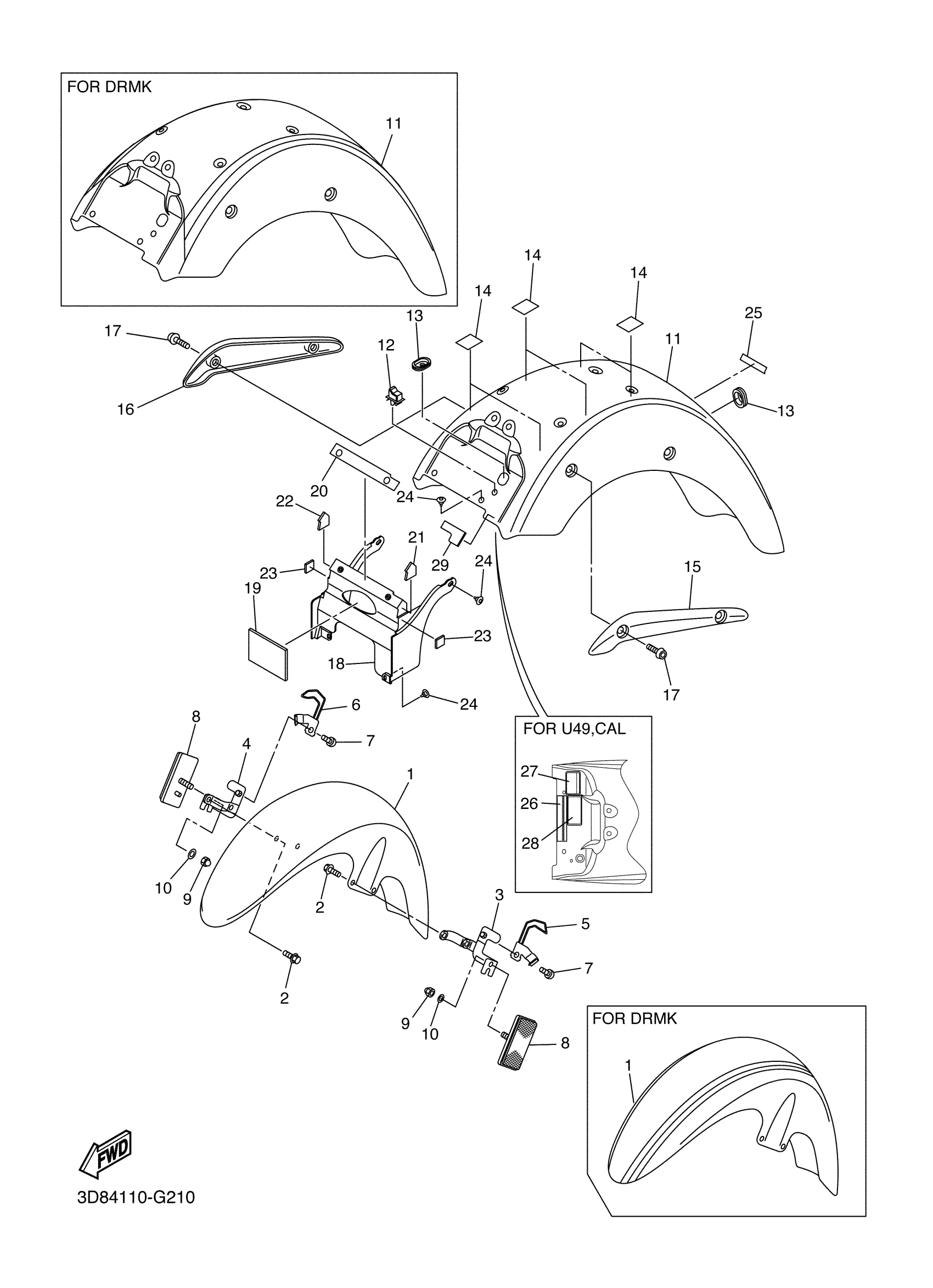

Yamaha XVS13AXS (V STAR 1300) 3D841 2008 FENDER Diagram
#
1
FRONT FENDER COMP.
3D8-21510-01-P0
Unavailable
1
FRONT FENDER COMP.
3D8-21510-01-P5
Unavailable
1
FRONT FENDER COMP.
3D8-W2151-11-P1
Unavailable
3
STAY 1
3D8-21587-00-00
Unavailable
4
STAY 2
3D8-21588-00-00
Unavailable
5
HOLDER,WIRE 1
3D8-21597-00-00
Unavailable
6
HOLDER, WIRE 2
3D8-21598-00-00
Unavailable
11
REAR FENDER COMP. (BLACK METALLIC X)
3D8-21610-00-P0
Unavailable
11
REAR FENDER COMP.
3D8-21610-00-P3
Unavailable
11
REAR FENDER COMP.
3D8-Y2161-10-P2
Unavailable
12
CLAMP (1J7)
90464-16021-00
Unavailable
13
GROMMET
90480-01015-00
Unavailable
14
SEAL
5PX-21669-01-00
Unavailable
15
STAY 1
3D8-2164F-10-00
Unavailable
16
STAY 2
3D8-2164G-10-00
Unavailable
17
BOLT
90111-08033-00
Unavailable
18
GUARD, MUD
3D8-21629-00-P0
Unavailable
18
GUARD, MUD
3D8-21629-00-P2
Unavailable
18
GUARD, MUD (SILVER 3)
3D8-21629-00-P3
Unavailable
19
FLAP
3D8-21621-00-00
Unavailable
20
DAMPER 1
3D8-21638-00-00
Unavailable
21
DAMPER 2
3D8-21639-00-00
Unavailable
22
DAMPER
3D8-21649-00-00
Unavailable
23
PROTECTOR
3D8-21652-00-00
Unavailable
24
RIVET(4PH)
90269-07077-00
Unavailable
25
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
26
PLATE, EPA (CALIFORNIA)
3D8-2176P-00-00
Unavailable
26
PLATE, EPA (NON CALIFORNIA)
3D8-2179W-10-00
Unavailable
27
PLATE, ROUTING 2
5PX-21686-00-00
Unavailable
28
LABEL, TIRE
1D7-21668-00-00
Unavailable
29
DAMPER
3D8-21747-00-00
Unavailable
