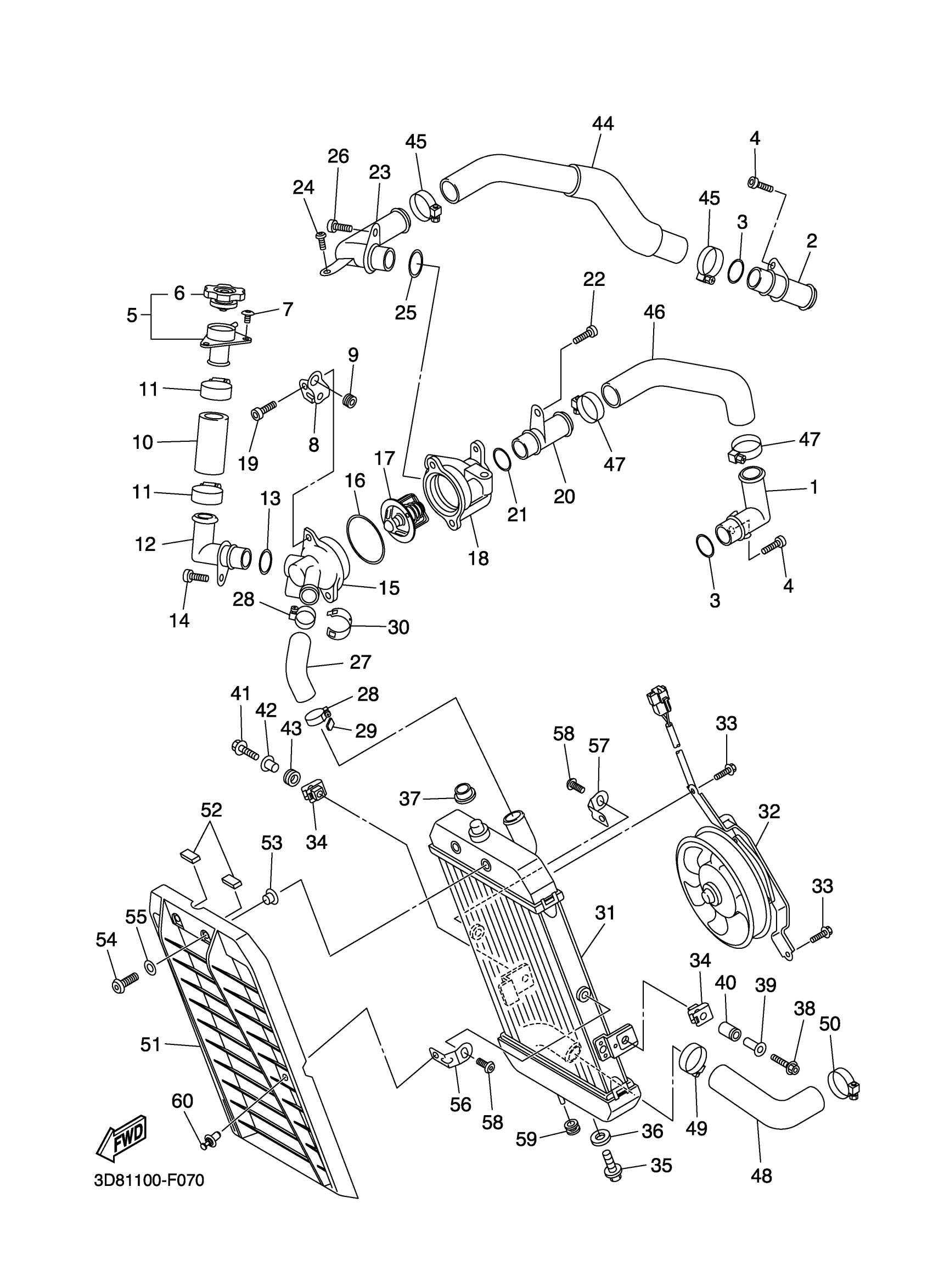

Yamaha XVS13AWC (V STAR 1300 CA) 3D82 2007 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 1

3D8-12481-00-00

Unavailable

2

PIPE 2

3D8-12482-00-00

Unavailable

3

O-RING (716)

93210-18417-00

$7.49

4

BOLT (33M)

91312-06014-00

$5.60

5

CONDUCTION ASSY

4NK-12590-00-00

$97.99

6

CAP, RADIATOR

1B3-12462-00-00

$67.99

7

BOLT,HEX. SOCKET BUTTON

90111-06083-00

$7.49

8

BRACKET 1

3D8-1244E-00-00

Unavailable

9

GROMMET(3GM)

90480-10517-00

$8.49

10

HOSE 6

3D8-12589-00-00

Unavailable

11

HOSE CLAMP ASSY

90450-28001-00

$14.99

12

PIPE 4

3D8-12484-00-00

Unavailable

13

O-RING (716)

93210-18417-00

$7.49

14

BOLT,SOCKET

91317-06012-00

$8.49

15

COVER, THERMOSTAT

3D8-12413-00-00

Unavailable

16

O-RING (620)

93210-49046-00

Unavailable

17

THERMOSTAT ASSY

1AE-12410-01-00

Unavailable

18

HOUSING, THERMOSTAT

3D8-12417-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

20

PIPE 5

3D8-12485-00-00

Unavailable

21

O-RING (716)

93210-18417-00

$7.49

22

BOLT,SOCKET

91317-06012-00

$8.49

23

PIPE 6

3D8-12476-00-00

Unavailable

24

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

25

O-RING (716)

93210-18417-00

$7.49

26

BOLT,SOCKET

91317-06012-00

$8.49

27

HOSE 4

3D8-12579-00-00

Unavailable

28

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

29

CAP

4NX-25335-00-00

Unavailable

30

COVER 2

5GV-1246E-00-00

Unavailable

31

RADIATOR ASSY

3D8-12461-10-00

Unavailable

32

BLOWER ASSY

3D8-12405-10-00

Unavailable

33

BOLT, BLOWER HOLDING

2D1-12675-00-00

Unavailable

34

PLATE

3D8-12535-00-00

Unavailable

35

PLUG,DRAIN COCK

1AA-12561-00-00

Unavailable

36

GASKET

1AA-12435-00-00

Unavailable

37

GROMMET

90480-20003-00

Unavailable

38

BOLT, HEXAGON SOCKET HEAD

90110-06261-00

Unavailable

39

COLLAR

90387-0614X-00

Unavailable

40

DAMPER, RADIATOR

4XY-12465-00-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD

90110-06263-00

Unavailable

42

COLLAR 437216330000

90387-07391-00

Unavailable

43

GROMMET (4L0)

90480-19283-00

Unavailable

44

HOSE 1

3D8-12576-00-00

Unavailable

45

HOSE CLAMP ASSY

90450-28001-00

$14.99

46

HOSE 3

3D8-12578-00-00

Unavailable

47

HOSE CLAMP ASSY

90450-28001-00

$14.99

48

HOSE 5

3D8-12588-00-00

Unavailable

49

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

50

HOSE CLAMP ASSY

90450-35001-00

Unavailable

51

COVER, RADIATOR

3D8-12467-00-00

Unavailable

52

DAMPER 1

3D8-21541-00-00

Unavailable

53

COLLAR

90387-08076-00

Unavailable

54

BOLT

90111-06041-00

Unavailable

55

WASHER, PLATE

90201-06096-00

Unavailable

56

STAY 1

3D8-2116A-00-00

Unavailable

57

COVER 2

3D8-2116E-00-00

Unavailable

58

BOLT

90111-06031-00

Unavailable

59

GROMMET

90480-08003-00

Unavailable

60

RIVET(4PH)

90269-07077-00

Unavailable
