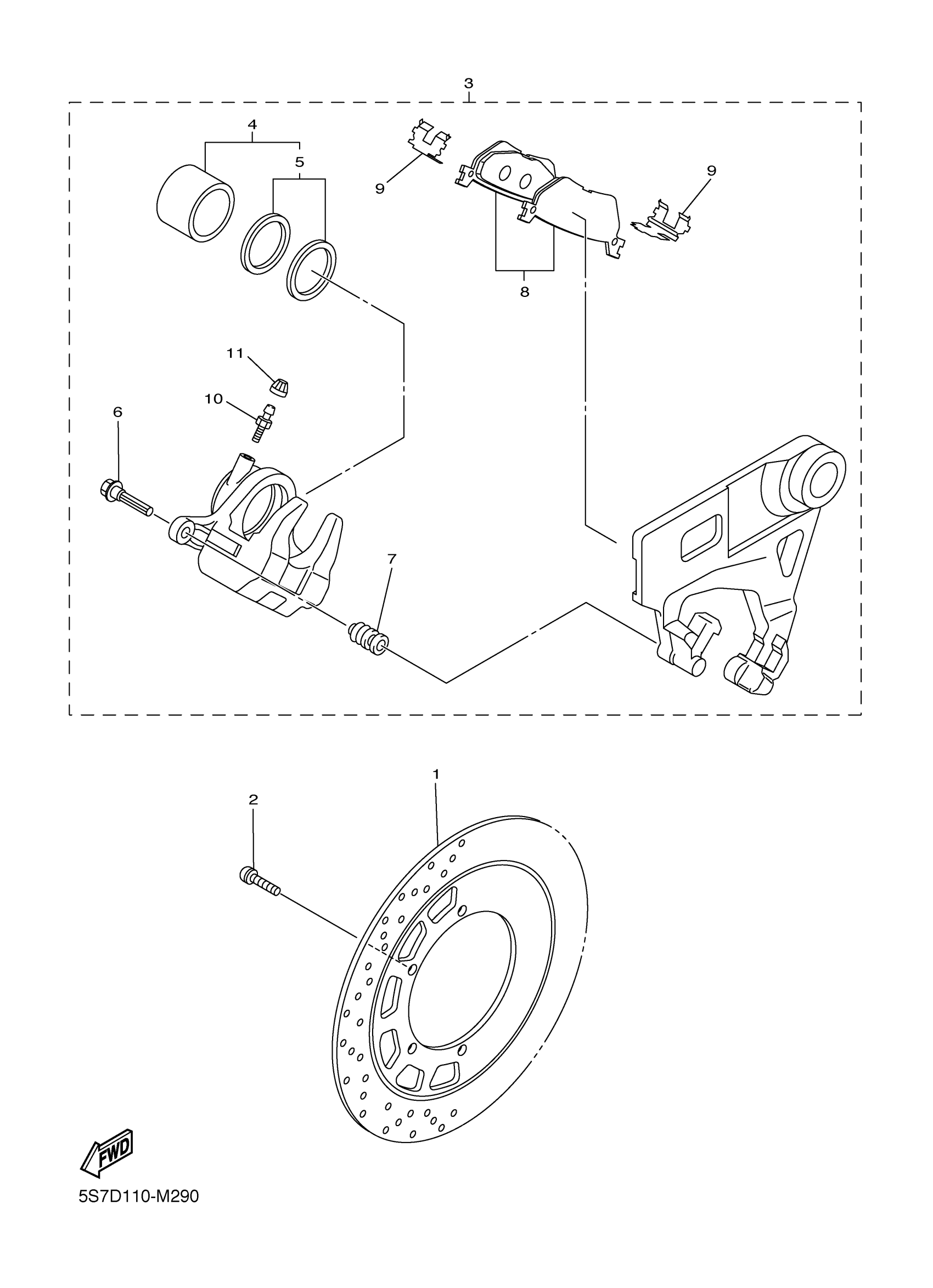

Yamaha XVS13AER (V STAR 1300) 3D8N 2014 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

3D8-2582W-00-00

$197.10

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CALIPER ASSY, REAR 2

3D8-2580W-10-00

$454.42

4

PISTON ASSY, CALIPER

1D7-25802-00-00

$45.90

5

CALIPER SEAL KIT

5JW-25803-00-00

$13.44

6

PIN, SLIDE

3P6-25914-00-00

$13.02

7

BOOT 2

4TT-25937-00-00

$13.33

8

BRAKE PAD KIT 2

3D8-25806-00-00

$42.94

9

SUPPORT, PAD

1D7-25919-00-00

$14.81

10

SCREW, BLEED

47X-25824-01-00

$11.87

11

CAP

1D7-25825-00-00

$6.29
