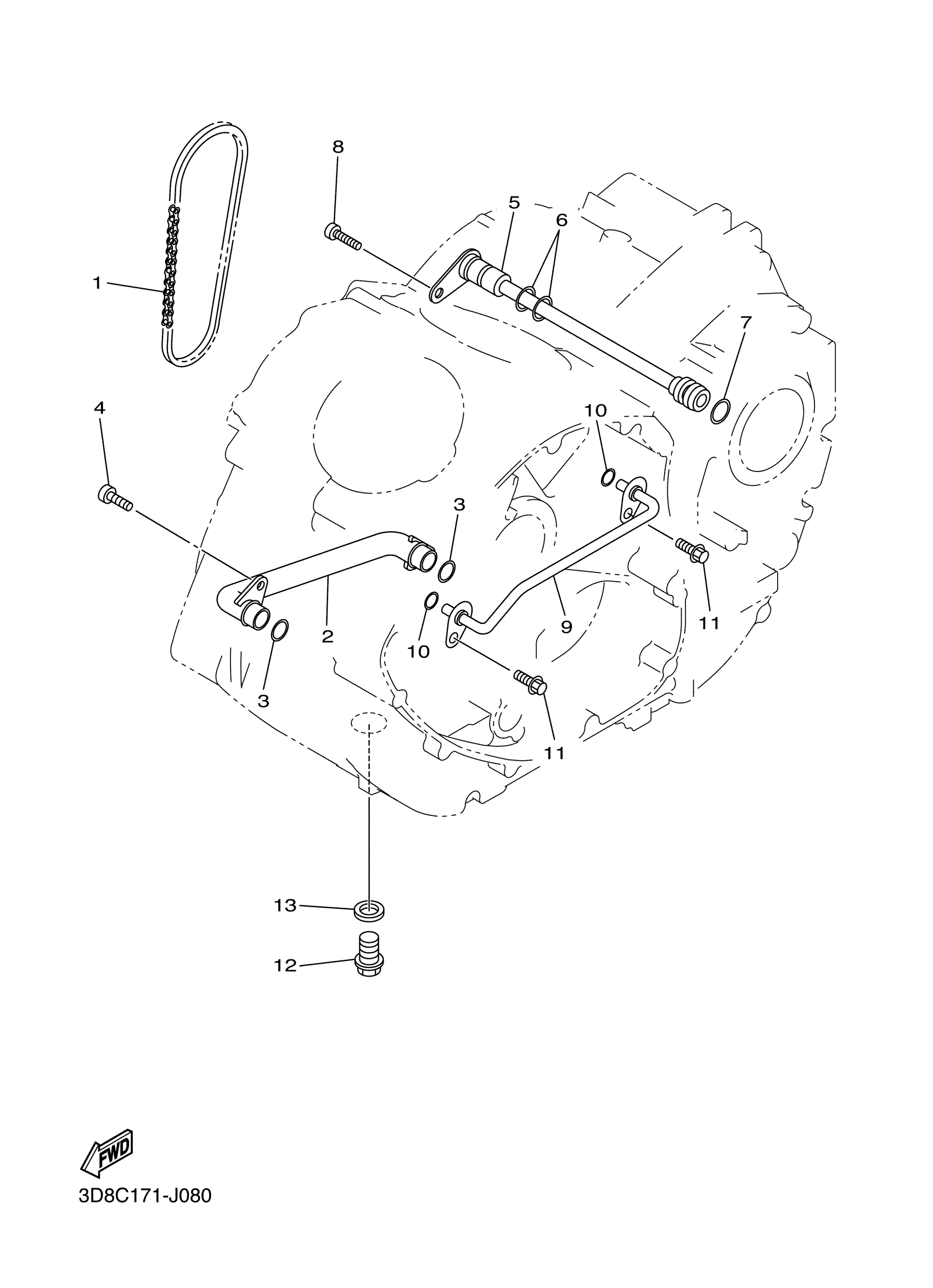

Yamaha XVS13AER (V STAR 1300) 3D8N 2014 OIL PUMP Diagram

#

Description
Price

1

CHAIN, OIL PUMP (5G2)

94580-25062-00

$11.99

2

PIPE, OIL 1

3D8-13416-00-00

Unavailable

3

O-RING

93210-14003-00

$8.49

4

BOLT,SOCKET

91317-06016-00

$1.25

5

PIPE, DELIVERY 2

3D8-13171-00-00

Unavailable

6

O-RING (1J7)

93210-09350-00

$7.49

7

O-RING (11M)

93210-07540-00

$7.49

8

BOLT,SOCKET

91317-06016-00

$1.25

9

PIPE, DELIVERY 3

3D8-13181-00-00

Unavailable

10

O-RING(26H)

93210-06667-00

$7.49

11

BOLT, FLANGE

95022-06012-00

$3.29

12

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

13

GASKET

214-11198-01-00

$3.17
