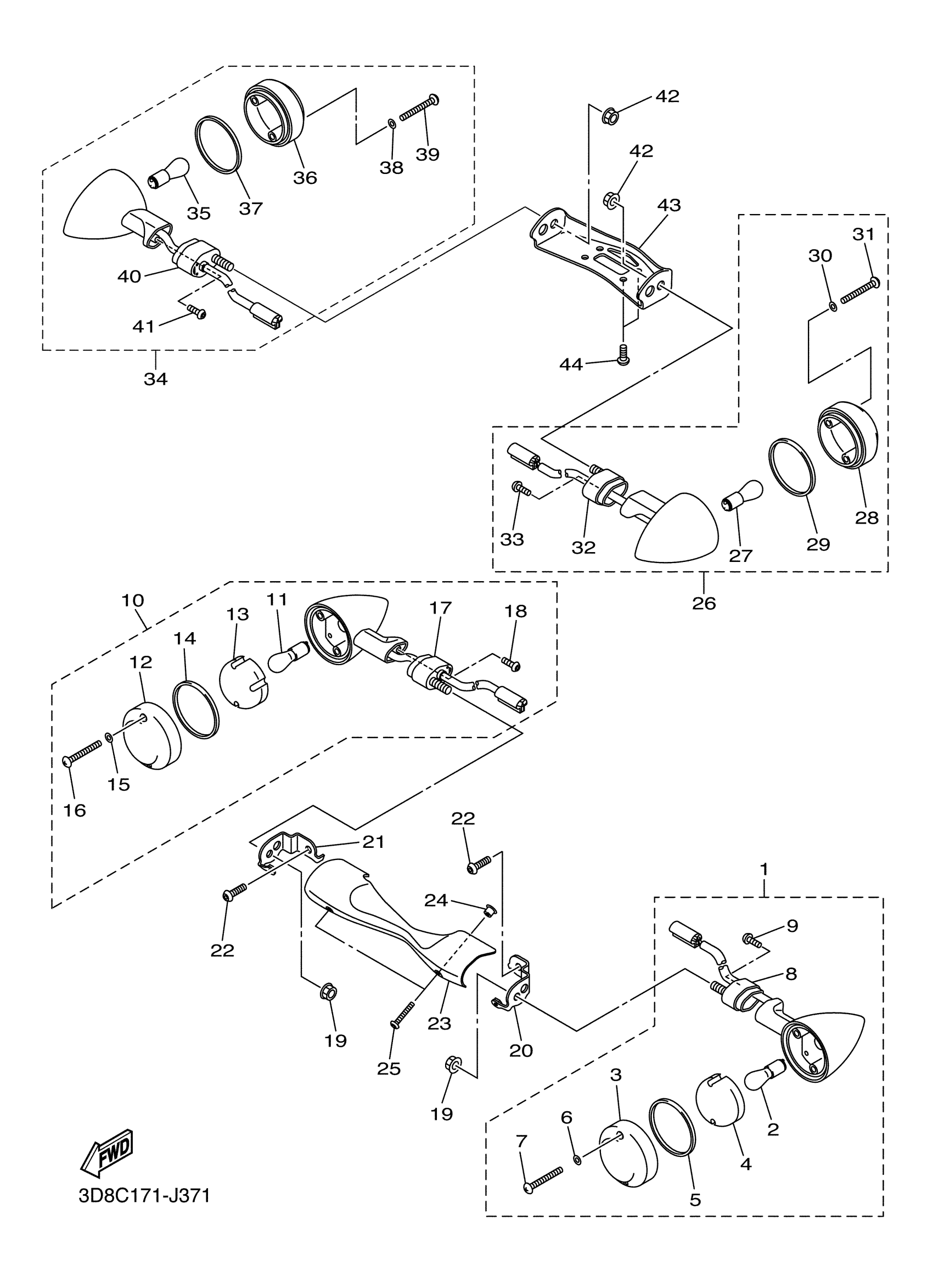

Yamaha XVS13AER (V STAR 1300) 3D8N 2014 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

3D8-83310-00-00

$106.99

2

BULB

1A2-84714-50-00

$14.49

3

LENS, FLASHER

3D8-83312-00-00

$13.49

4

LENS, INNER 1

3D8-8333L-00-00

Unavailable

5

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

6

WASHER

3D8-83348-00-00

$4.52

7

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

8

STAY, FLASHER 2

3D8-83369-00-00

$37.99

9

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

10

FRONT FLASHER LIGHT ASSY 2

3D8-83320-00-00

$109.99

11

BULB

1A2-84714-50-00

$14.49

12

LENS, FLASHER

3D8-83312-00-00

$13.49

13

LENS, INNER 1

3D8-8333L-00-00

Unavailable

14

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

15

WASHER

3D8-83348-00-00

$4.52

16

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

17

STAY, FLASHER 2

3D8-83369-00-00

$37.99

18

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

19

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

20

STAY, FLASHER 1

3D8-83318-20-00

Unavailable

21

STAY, FLASHER 2

3D8-83328-10-00

Unavailable

22

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

23

COVER, OUTER 1

3D8-23122-10-00

Unavailable

24

COLLAR

90387-06255-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05024-00

Unavailable

26

REAR FLASHER LIGHT ASSY 1

3D8-83330-10-00

Unavailable

27

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

28

LENS, FLASHER

3D8-83312-00-00

$13.49

29

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

30

WASHER

3D8-83348-00-00

$4.52

31

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

32

STAY, FLASHER 2

3D8-83369-00-00

$37.99

33

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

34

REAR FLASHER LIGHT ASSY 2

3D8-83340-10-00

Unavailable

35

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

36

LENS, FLASHER

3D8-83312-00-00

$13.49

37

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

38

WASHER

3D8-83348-00-00

$4.52

39

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

40

STAY, FLASHER 2

3D8-83369-00-00

$37.99

41

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

42

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

43

STAY, FLASHER 1

3D8-83368-00-00

Unavailable

44

BOLT

90111-06031-00

Unavailable
