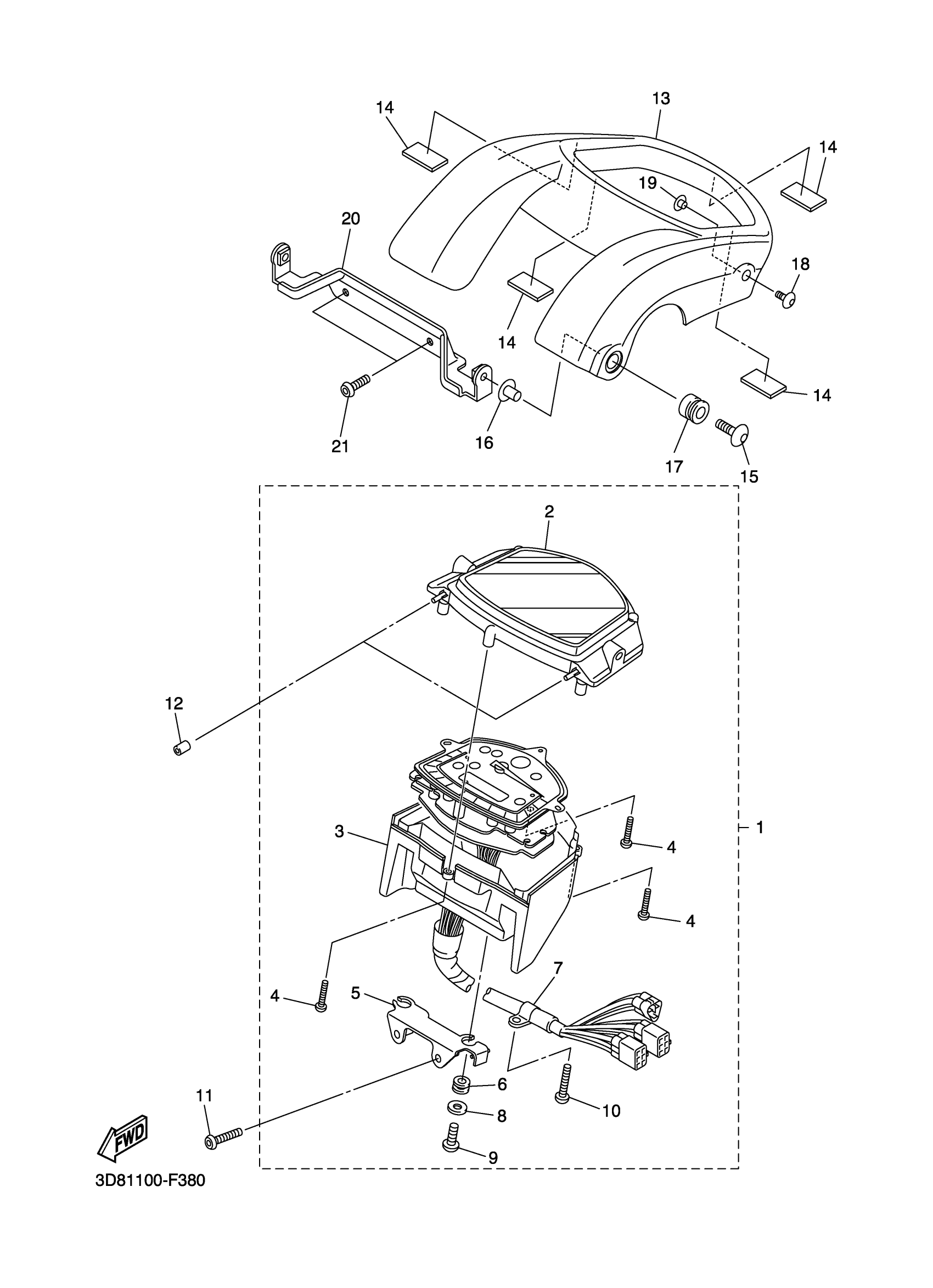

Find the part on the Meter diagram for your 2011 Yamaha V Star 1300 CA (XVS13AACB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha V Star 1300 CA (XVS13AACB) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

3D8-83500-02-00

—
Out of stock

2

CASE, METER UPPER

3D8-8353E-00-00

—
Out of stock

3

CASE, SPEEDOMETER LOWER

3D8-83572-00-00

—
Out of stock

4

SCREW, TAPPING

97702-30014-00

1
Out of stock

5

BRACKET, METER

3D8-83519-00-00

—
Out of stock

6

DAMPER

4XV-83513-00-00

1

$6.42

In stock

7

CLAMP

4HC-83595-00-00

—
Out of stock

8

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

9

SCREW, TAPPING

97702-50016-00

1

$1.98

In stock

10

SCREW, TRUSS TAP.

97707-40014-00

—

$6.00

In stock

11

BOLT, BUTTON HEAD

92012-08035-00

1
Out of stock

12

HOSE

90445-05004-00

1
Out of stock

13

COVER, METER

3D8-83559-01-00

—
Out of stock

14

DAMPER

3D8-83541-00-00

1
Out of stock

15

1

$5.68

In stock

16

COLLAR

90387-06162-00

—
Out of stock

17

GROMMET

90480-13020-00

—
Out of stock

18

BOLT,HEX. SOCKET BUTTON

90111-05059-00

—

$2.15

In stock

19

COLLAR

90387-05035-00

—

$5.03

In stock

20

BRACKET

3D8-8350E-00-00

—
Out of stock

21

BOLT

90111-06062-00

—
Out of stock
