2011 Yamaha V Star 1300 CA (XVS13AACB) Headlight Diagram

← All diagrams

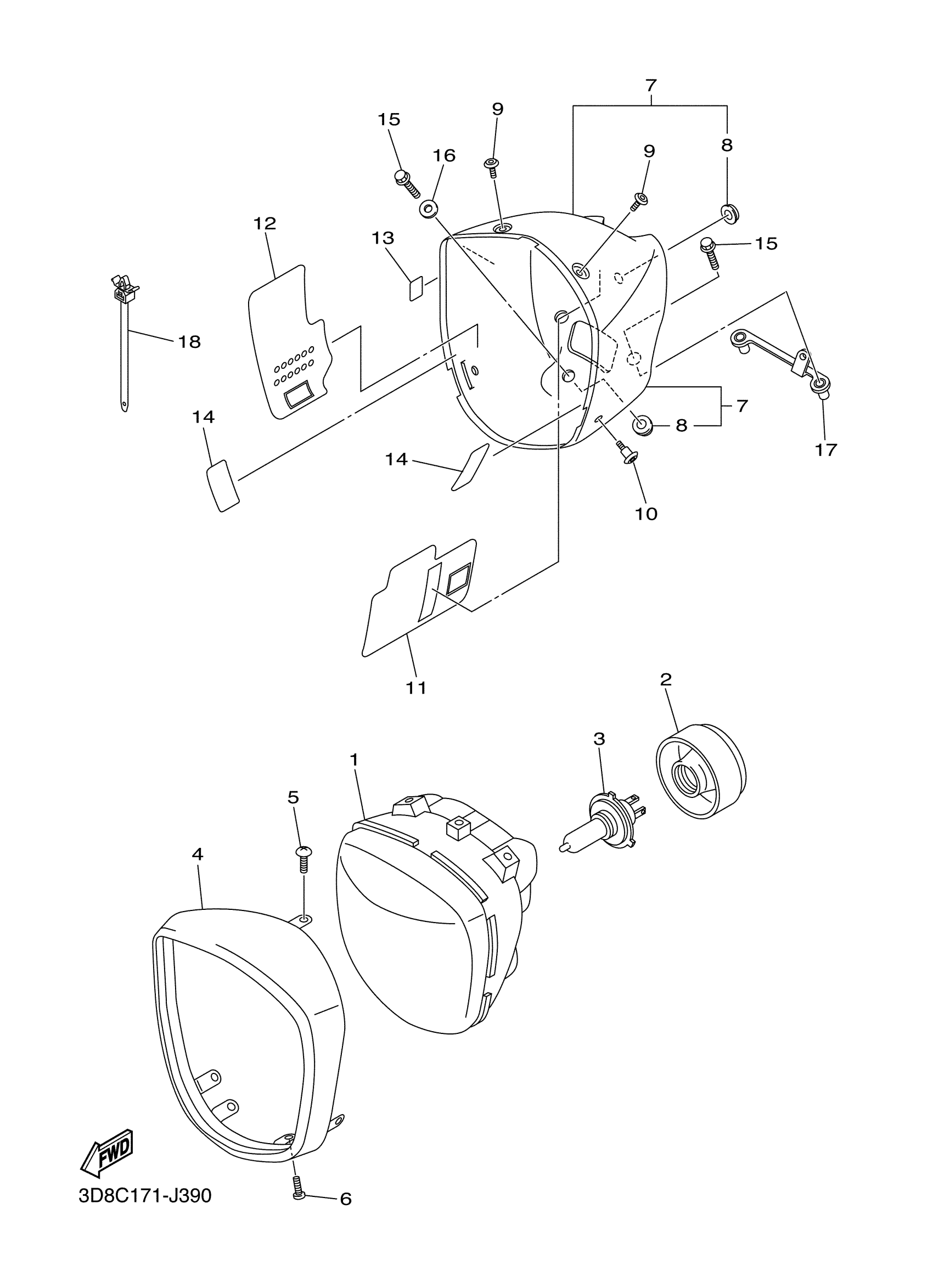

Find the part on the Headlight diagram for your 2011 Yamaha V Star 1300 CA (XVS13AACB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha V Star 1300 CA (XVS13AACB) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSY

3D8-84320-10-00

—
Out of stock

2

COVER, SOCKET

5JW-84397-00-00

—
Out of stock

3

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

4

RIM, HEADLIGHT

3D8-84315-00-00

1
Out of stock

5

SCREW, PAN

98517-05012-00

1
Out of stock

6

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

7

BODY ASSY

3D8-84330-10-00

—
Out of stock

8

DAMPER, HEADLIGHT 1

42X-84366-00-00

1
Out of stock

9

BOLT

90111-05007-00

1
Out of stock

10

BOLT

90111-05020-00

1
Out of stock

11

HOLDER, 1

3D8-8411T-00-00

—
Out of stock

12

HOLDER, 2

3D8-8411U-00-00

1
Out of stock

13

PROTECTOR

3MA-27491-00-00

1
Out of stock

14

SEAL 1

3D8-21575-00-00

—
Out of stock

15

BOLT, FLANGE

95022-06025-00

1
Out of stock

16

COLLAR

90387-06175-00

—
Out of stock

17

HOLDER

3D8-84387-00-00

—
Out of stock

18

CLAMP

90464-14006-00

—
Out of stock
