2011 Yamaha V Star 1300 CA (XVS13AACB) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2011 Yamaha V Star 1300 CA (XVS13AACB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

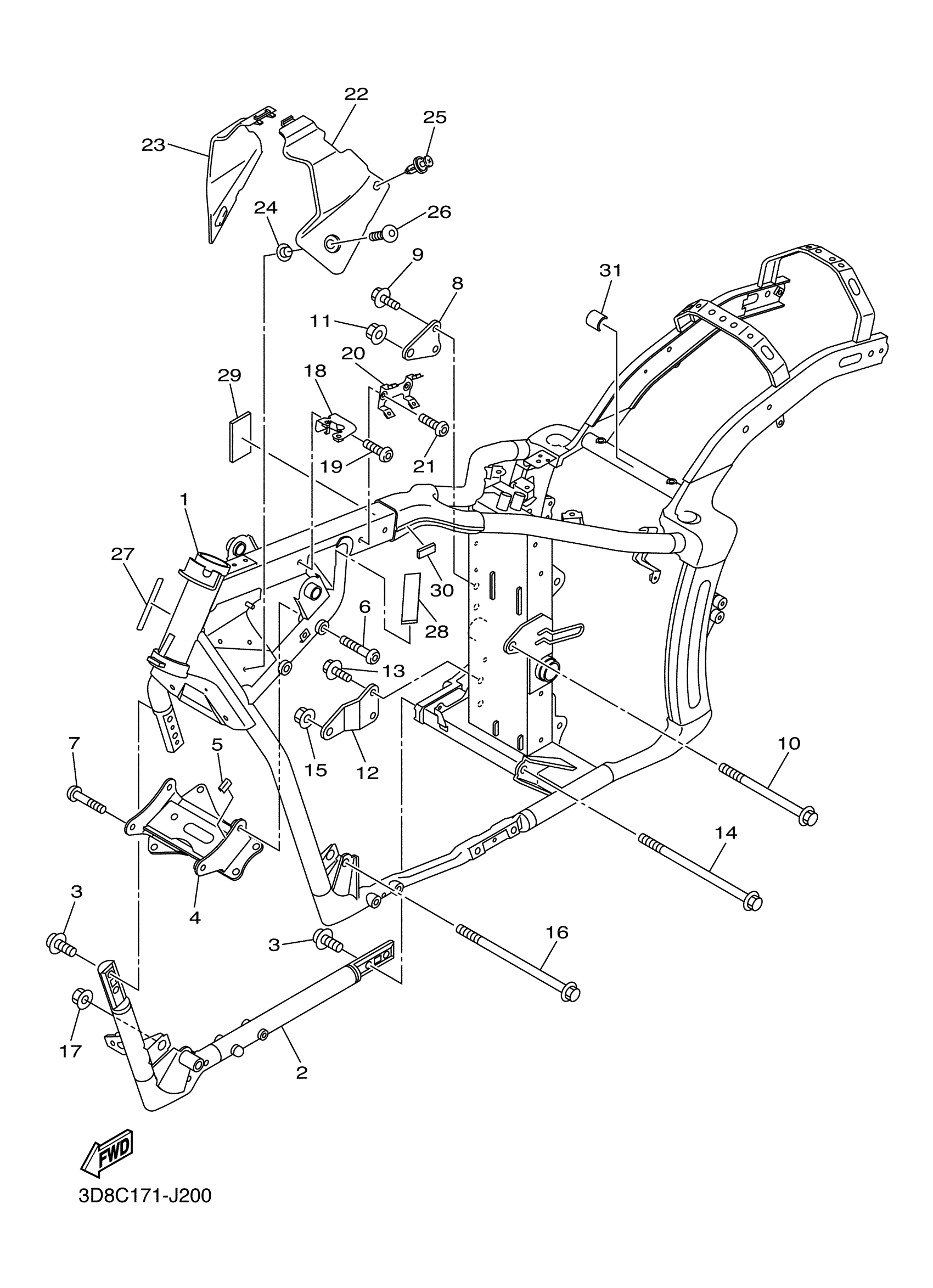

2011 Yamaha V Star 1300 CA (XVS13AACB) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

3D8-21110-40-00

1
Out of stock

2

DOWN TUBE COMP.2

3D8-21150-11-00

1
Out of stock

3

BOLT, HEXAGON SOCKET HEAD

90110-10017-00

1
Out of stock

4

STAY, ENGINE 3

3D8-21317-10-00

—
Out of stock

5

PROTECTOR

3MA-27491-00-00

1

$8.03

In stock

6

BOLT,HEX. SOCKET BUTTON

90111-10028-00

—
Out of stock

7

BOLT,HEX. SOCKET BUTTON

90111-10030-00

1
Out of stock

8

STAY, ENGINE 5

3D8-21314-00-00

—
Out of stock

9

BOLT, FLANGE

95817-10020-00

1

$6.17

In stock

10

BOLT, FLANGE

90105-12043-00

—
Out of stock

11

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

12

STAY, ENGINE 3

3D8-21316-00-00

—
Out of stock

13

BOLT, FLANGE

95817-10020-00

1

$6.17

In stock

14

BOLT, FLANGE

90105-12044-00

1
Out of stock

15

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

16

BOLT, FLANGE

90105-12045-00

—
Out of stock

17

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

18

BRKT., LH.

3D8-2119W-10-00

—
Out of stock

19

BOLT, BUTTON HEAD

92012-06012-00

—

$2.49

In stock

20

BRACKET, COIL

3D8-21359-01-00

—

$26.95

In stock

21

BOLT (33M)

91312-06014-00

—

$4.74

In stock

22

COVER, SIDE 5

3D8-2171E-01-00

—
Out of stock

23

COVER, SIDE 6

3D8-2171X-01-00

—
Out of stock

24

COLLAR

90387-06071-00

—

$6.69

In stock

25

RIVET(4JH)

90269-07076-00

—

$6.00

In stock

26

BOLT

90111-06061-00

—

$6.26

In stock

27

PROTECTOR

3D8-2117G-00-00

1

$5.40

In stock

28

DAMPER

4XY-2834E-00-00

—
Out of stock

29

DAMPER

3D8-2113B-00-00

1
Out of stock

30

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

31

PROTECTOR

3MA-27491-00-00

1

$8.03

In stock
