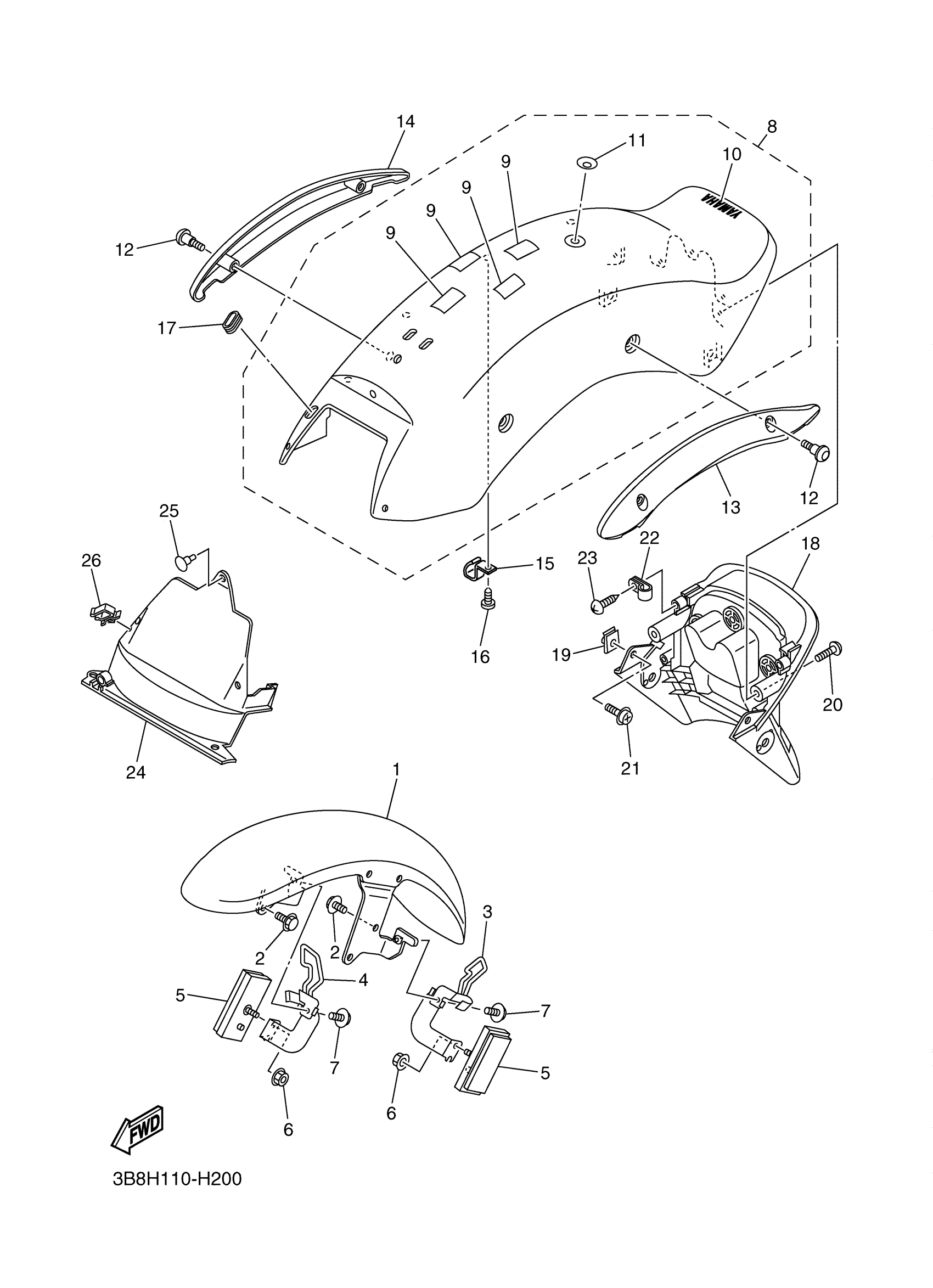

Yamaha XVS11YR (V STAR 1100 CUSTOM) 3B8H 2009 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (DEEP RED METALLIC K)

5EL-21510-01-PA

Unavailable

2

BOLT, SMALL FLANGE

95027-08012-00

$9.49

3

HOLDER,WIRE 1

5EL-21597-10-00

Unavailable

4

HOLDER, WIRE 2

5EL-21598-10-00

Unavailable

5

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

6

NUT, FLANGE(3GM)

95707-05500-00

$8.49

7

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

8

REAR FENDER COMP.

5EL-Y2161-1M-P6

Unavailable

9

SEAL 1

3SP-21732-00-00

$17.49

10

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

11

SEAL 2

5VN-21735-00-00

$7.99

12

BOLT

90111-08001-00

$8.49

13

STAY 1

5EL-2164F-00-00

Unavailable

14

STAY 2

5EL-2164G-00-00

Unavailable

15

CLAMP

90461-06001-00

$3.45

16

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

17

GROMMET

90480-01001-00

Unavailable

18

FENDER 2

5EL-2162R-00-00

Unavailable

19

NUT, SPRING

90183-051A0-00

Unavailable

20

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

21

SCREW, WITH WASHER

90159-05056-00

Unavailable

22

CLAMP(N07)

90461-10135-00

Unavailable

23

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

24

GUARD, MUD

5EL-21629-00-00

Unavailable

25

RIVET(4PH)

90269-07077-00

Unavailable

26

CLAMP (1J7)

90464-16021-00

Unavailable
