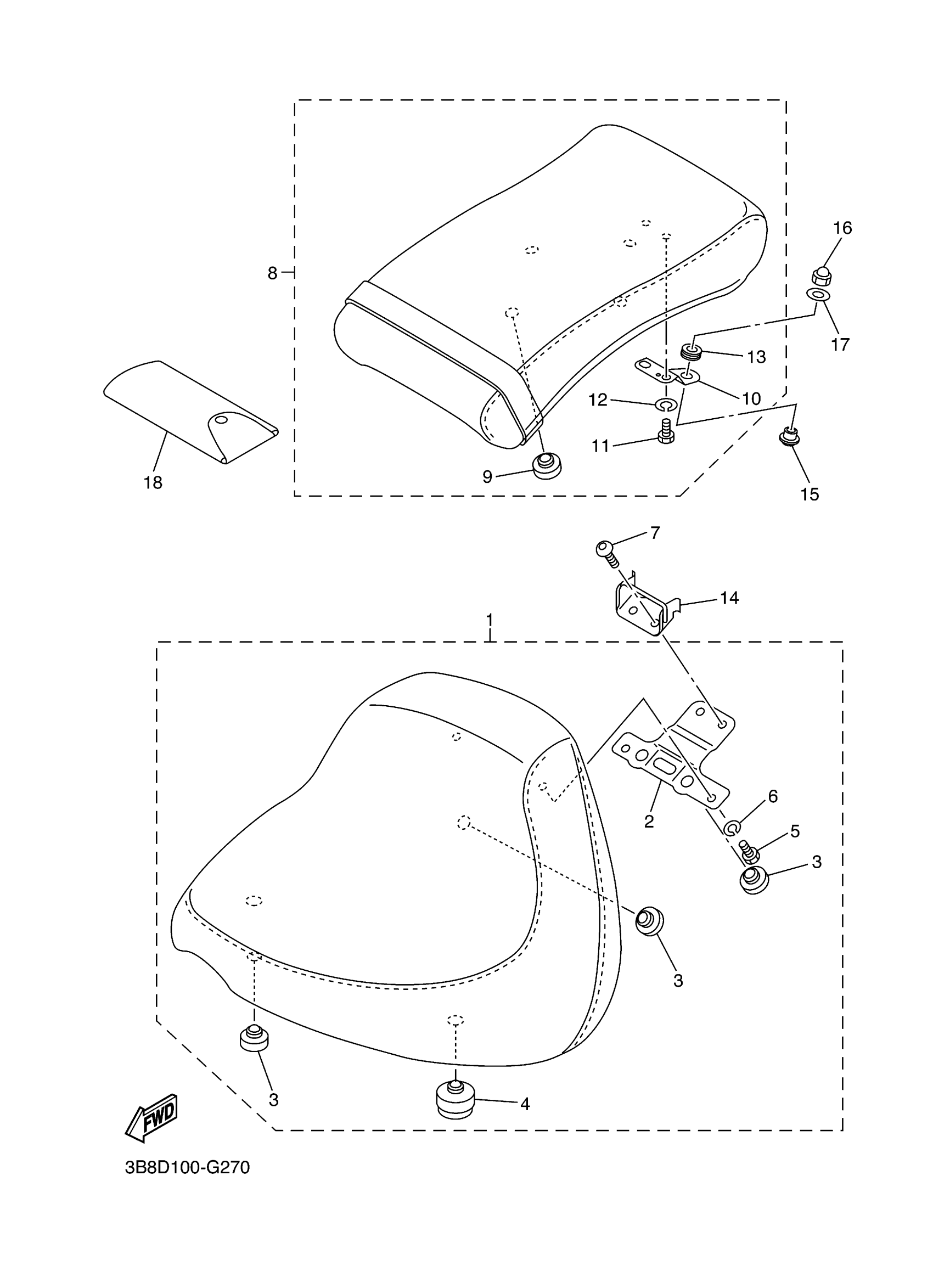

Yamaha XVS11YCB (V STAR 1100 MIDNIGHT CUSTOM CA) 5P99 2009 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5PB-24710-00-00

Unavailable

2

BRACKET, SEAT LEVER 1

5EL-2475H-00-00

$24.99

3

PAD, SEAT

22W-24741-00-00

$8.99

4

PAD, SEAT

1T4-24741-00-00

Unavailable

5

BOLT, HEXAGON

97017-06012-00

$3.76

6

WASHER, SPRING

92907-06100-00

$4.25

7

BOLT, BUTTON HEAD

92017-06016-00

$8.49

8

TANDEM SEAT ASSY

5PB-24750-10-00

Unavailable

9

PAD, SEAT

22W-24741-00-00

$8.99

10

BRACKET, SEAT LEVER 2

5PB-2475J-00-00

Unavailable

11

BOLT, HEXAGON

97017-06012-00

$3.76

12

WASHER, SPRING

92907-06100-00

$4.25

13

GROMMET

5YS-24742-00-00

$2.34

14

BRACKET

5EL-2475N-00-00

Unavailable

15

COLLAR 2

5PB-2471M-00-00

Unavailable

16

NUT, CROWN

90176-08002-00

Unavailable

17

WASHER, PLATE

90201-08042-00

Unavailable

18

TOOL KIT

5EL-28100-10-00

Unavailable
