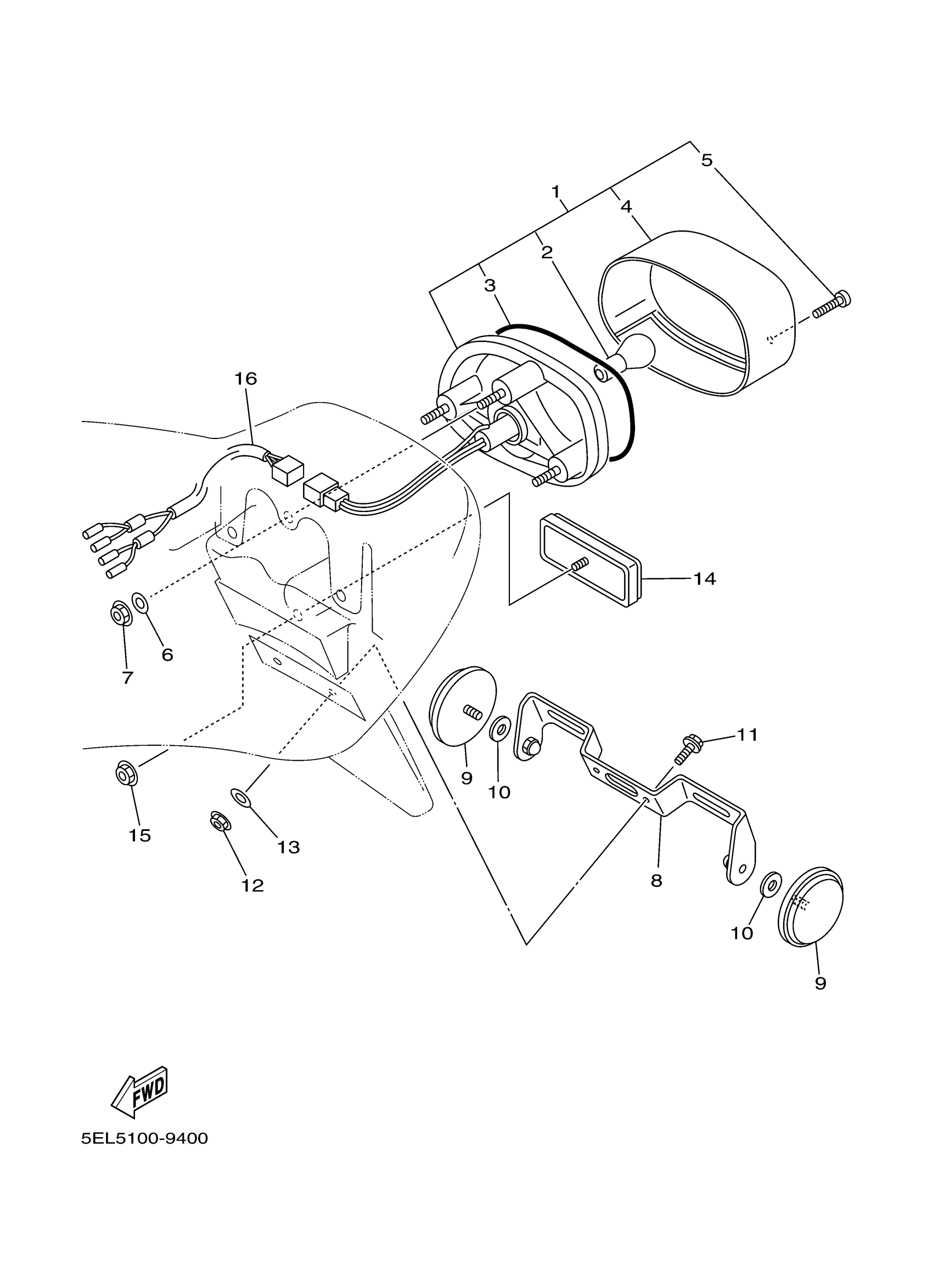

Yamaha XVS11XL (V STAR 1100 CUSTOM) 3B8D 2008 TAILLIGHT Diagram

TAILLIGHT ASSY

4TV-84700-00-00

Unavailable

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

GASKET, TAIL LENS

4TX-84723-00-00

$4.18

LENS, TAILLIGHT

4TR-84733-00-00

$18.52

SCREW, PAN TAP.2

97707-40520-00

$6.65

WASHER, PLATE

90201-06380-00

$0.54

NUT, SELF-LOCKING

95617-06100-00

$2.17

BRACKET, LICENSE

5EL-84751-00-00

Unavailable

REFLECTOR, REAR 1

449-85131-02-00

$24.04

WASHER PLATE 829771780000

90201-05033-00

$6.62

BOLT, FLANGE(4DU)

95027-06014-00

$0.73

NUT, SELF-LOCKING

95617-06100-00

$2.17

WASHER, PLATE

90201-06095-00

$5.87

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

NUT, FLANGE(3GM)

95707-05500-00

$5.76

CORD, TAILLIGHT

5KP-84717-00-00

Unavailable
