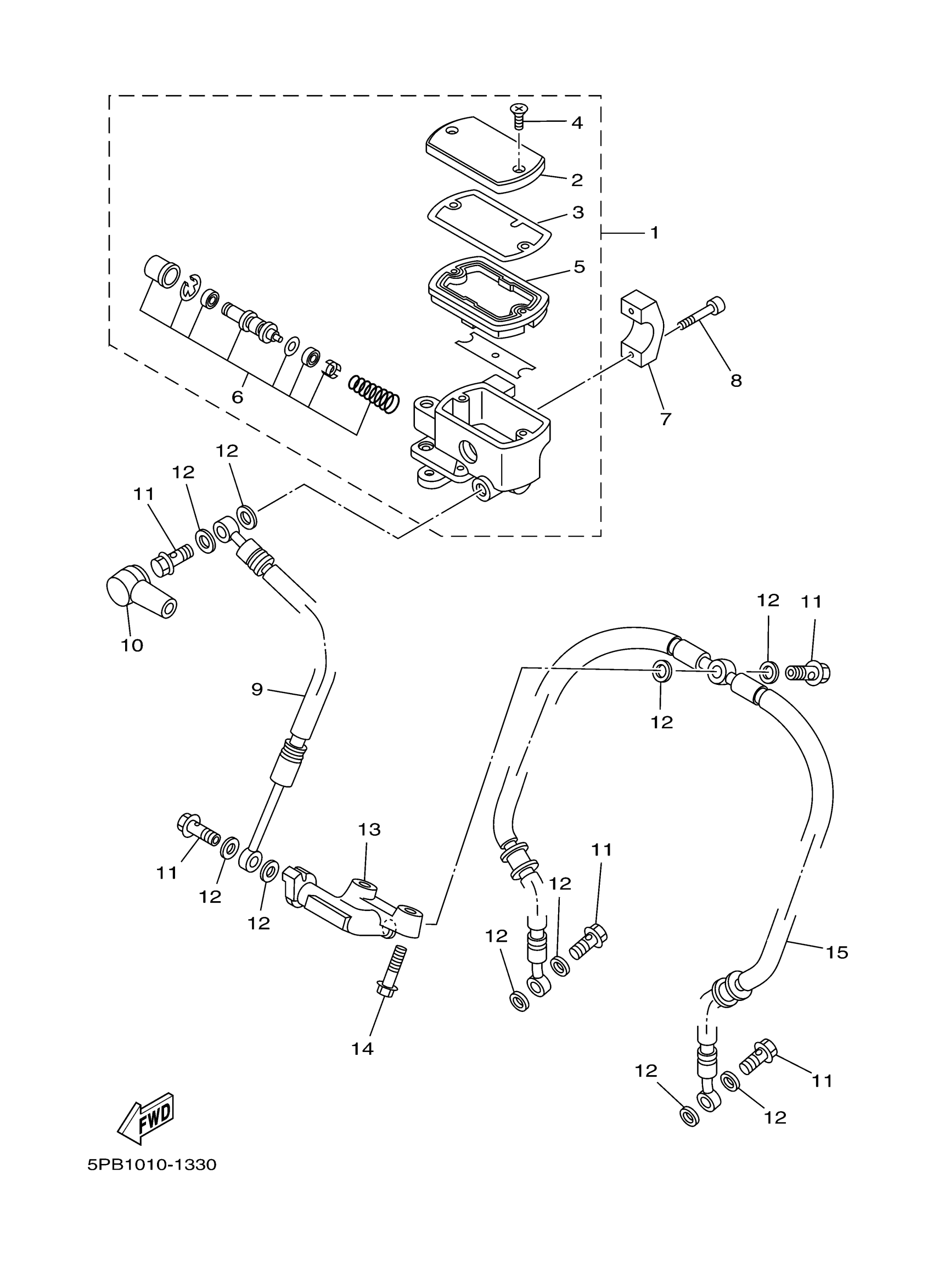

Yamaha XVS11WC-M (V STAR 1100 CUSTOM MIDNIGHT CA) 5P91 2007 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

3D8-25870-01-00

Unavailable

CAP, RESERVOIR

4TR-25852-10-00

Unavailable

SEAL, PISTON

4BH-25815-00-00

Unavailable

SCREW, FLAT

98707-04012-00

$2.18

DIAPHRAGM, RESERVOIR

4BH-25854-02-00

Unavailable

CYLINDER KIT, MASTER

2KR-25807-00-00

Unavailable

BRACKET, MASTER CYLINDER

4TR-25867-10-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

$8.49

HOSE, BRAKE 1

5PB-25872-00-00

Unavailable

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

BOLT, UNION

90401-10020-00

$9.49

GASKET

90430-10005-00

$9.49

JOINT

5PB-25885-00-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

HOSE, BRAKE 2

5PB-25873-00-00

$140.99
