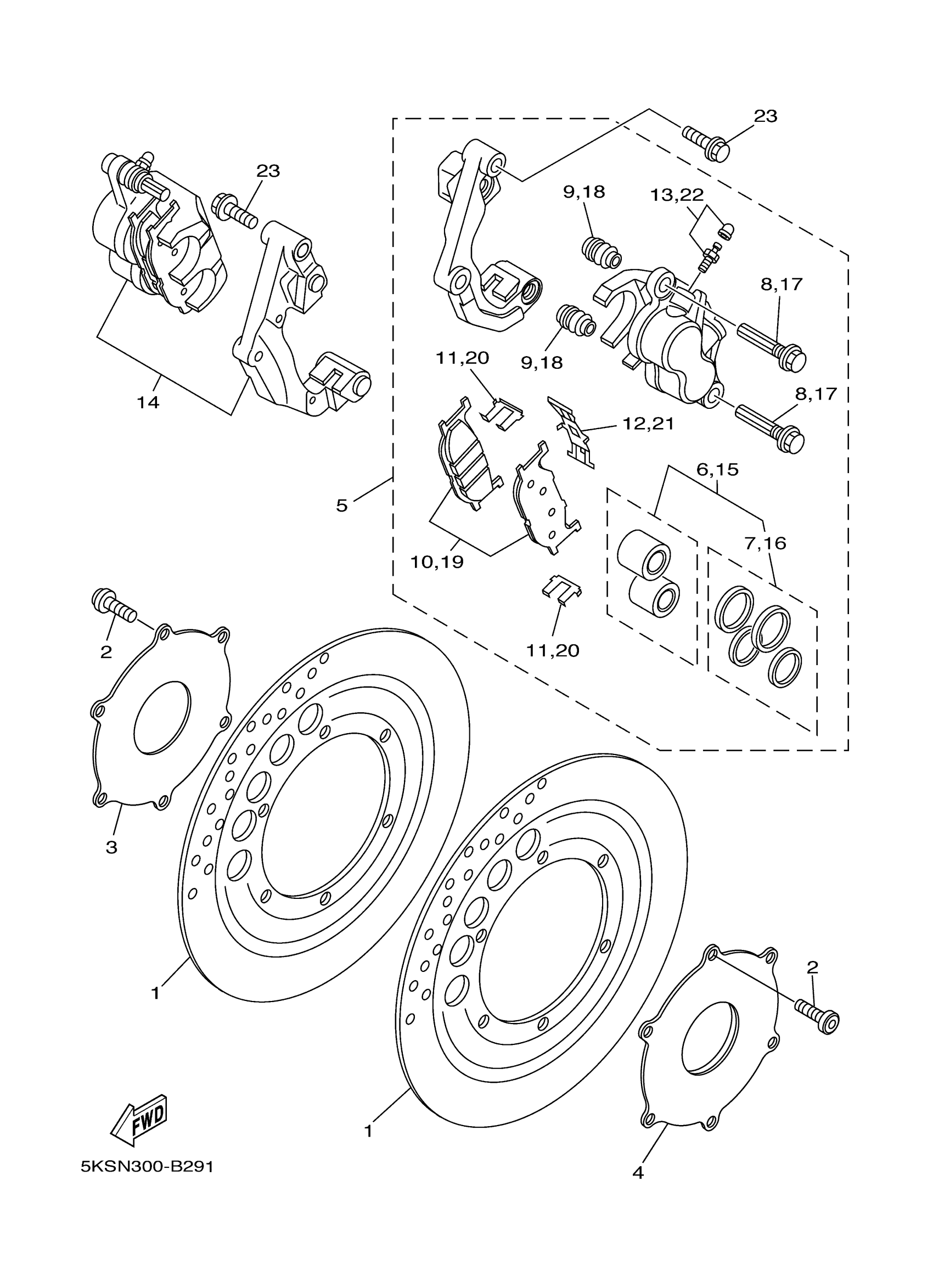

Yamaha XVS11WC-M (V STAR 1100 CUSTOM MIDNIGHT CA) 5P91 2007 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

3JB-2582U-10-00

Unavailable

SCREW

90149-08052-00

$5.59

RING, WHEEL 1 (RIGHT)

5EL-2514A-00-00

Unavailable

RING, WHEEL 2 (LEFT)

5EL-2515A-00-00

Unavailable

CALIPER ASSY (LEFT)

5KS-2580T-20-00

Unavailable

PISTON ASSY, CALIPER

5KS-25802-00-00

$58.47

CALIPER SEAL KIT

4HC-25803-50-00

$51.55

PIN, SLIDE

5JW-25914-10-00

$17.93

BOOT 2

4TT-25937-00-00

$13.33

BRAKE PAD KIT

5VU-25805-00-00

$40.09

SUPPORT, PAD

4BP-25919-00-00

$27.53

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$16.89

CALIPER ASSY (RIGHT)

5KS-2580U-20-00

Unavailable

PISTON ASSY, CALIPER

5KS-25802-00-00

$58.47

CALIPER SEAL KIT

4HC-25803-50-00

$51.55

PIN, SLIDE

5JW-25914-10-00

$17.93

BOOT 2

4TT-25937-00-00

$13.33

BRAKE PAD KIT

5VU-25805-00-00

$40.09

SUPPORT, PAD

4BP-25919-00-00

$27.53

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$16.89

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
