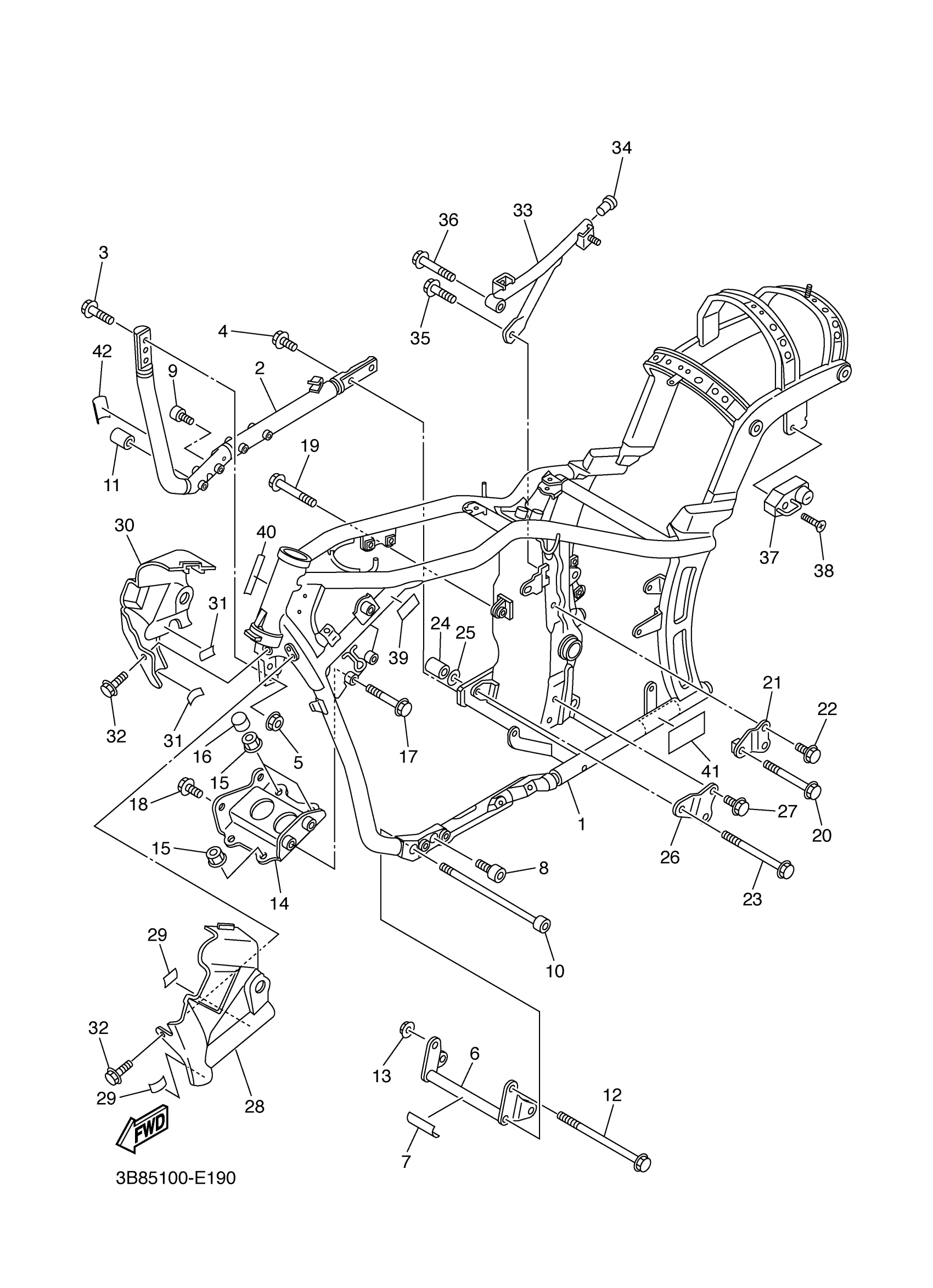

Yamaha XVS11WC-M (V STAR 1100 CUSTOM MIDNIGHT CA) 5P91 2007 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5EL-21110-31-00

Unavailable

2

DOWN TUBE COMP.2

5EL-21150-20-00

Unavailable

3

BOLT, WASHER BASED

90105-10009-00

Unavailable

4

BOLT, WASHER BASED

90105-10004-00

$9.49

5

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

6

STAY, ENGINE 5

5EL-21318-00-00

Unavailable

7

SEAL

4DN-21268-00-00

Unavailable

8

BOLT, SOCKET

91317-10020-00

$8.49

9

BOLT, SOCKET

91317-10030-00

$9.49

10

BOLT, HEXAGON SOCKET HEAD(3LN)

90110-10182-00

Unavailable

11

NUT

90179-10013-00

$14.99

12

BOLT, WASHER BASED(4KM)

90105-10781-00

Unavailable

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

14

STAY, ENGINE 3

5EL-21317-00-00

$95.99

15

NUT(3EF)

90179-12657-00

$5.60

16

PLUG

90331-14001-00

Unavailable

17

BOLT, FLANGE

90105-100A4-00

Unavailable

18

BOLT, WASHER BASED

90105-10003-00

Unavailable

19

BOLT, WASHER BASED

90105-10013-00

Unavailable

20

BOLT, WASHER BASED (2H7)

90105-10105-00

Unavailable

21

STAY, ENGINE 5

5EL-21314-00-00

Unavailable

22

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

23

BOLT, WASHER BASED (2T4)

90105-10117-00

Unavailable

24

NUT

90179-10013-00

$14.99

25

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

26

STAY, ENGINE 3

5EL-21316-00-00

Unavailable

27

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

28

COVER, SIDE 5

5EL-2171E-21-00

Unavailable

29

DAMPER 1

3TB-28217-00-00

Unavailable

30

COVER, SIDE 6

5EL-2171X-31-00

Unavailable

31

DAMPER 1

3TB-28217-00-00

Unavailable

32

BOLT, WITH WASHER

90119-06236-00

Unavailable

33

STAY, MUFFLER

5KS-21460-00-00

Unavailable

34

PLUG(55K)

90338-16148-00

Unavailable

35

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

36

BOLT, FLANGE(JN5)

95817-08045-00

Unavailable

37

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

38

SCREW (4G1)

90149-06154-00

Unavailable

39

SEAL 1

3SP-21732-00-00

Unavailable

40

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

41

PLATE, EPA 2 (CALIFORNIA)

5PB-2179R-10-00

Unavailable

41

PLATE, EPA (NON CALIFORNIA)

5PB-2179W-10-00

Unavailable

42

PLATE, ROUTING 2

5EL-21686-00-00

Unavailable
