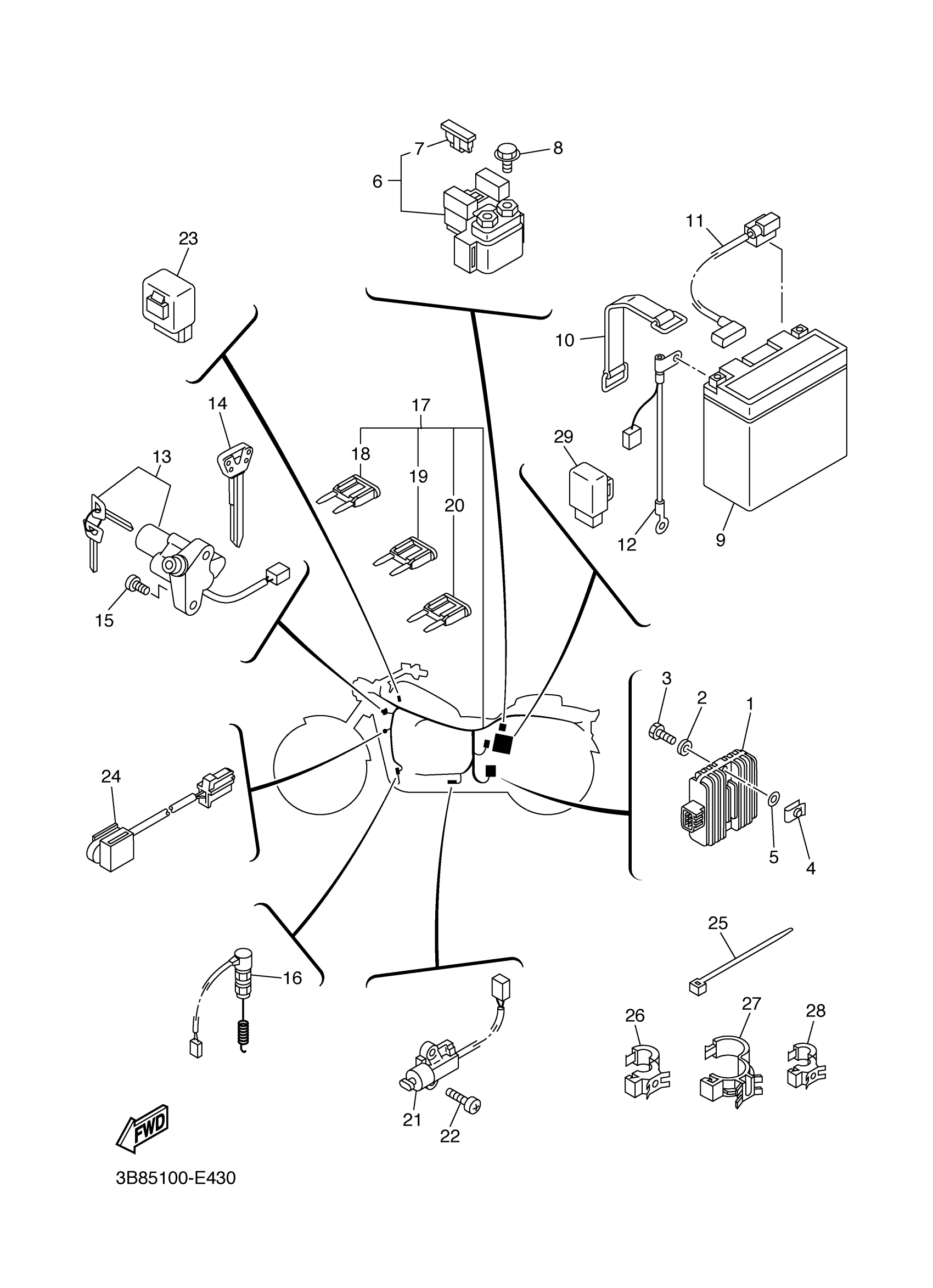

Yamaha XVS11WC-M (V STAR 1100 CUSTOM MIDNIGHT CA) 5P91 2007 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

4XY-81960-00-00

$144.49

2

WASHER, PLATE (8H9)

90201-06727-00

$6.35

3

BOLT, HEXAGON

97017-06025-00

$2.78

4

NUT, SPRING(4ES)

90183-06069-00

$5.69

5

WASHER, PLATE(3MB)

90202-05187-00

$1.01

6

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

$123.11

7

FUSE (12V 30A)

1AE-82151-00-00

$5.80

8

BOLT, SMALL FLANGE

95027-06008-00

$5.23

9

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

$136.79

10

BAND, BATTERY

118-82131-00-00

$19.97

11

WIRE, PLUS LEAD

5EL-82115-00-00

Unavailable

12

WIRE, MINUS LEAD

5EL-82116-00-00

Unavailable

13

MAIN SWITCH STEERING LOCK

4TR-82501-02-00

Unavailable

14

BLANK KEY

4BH-82511-09-00

$22.81

15

SCREW

90149-08002-00

$7.27

16

STOP SWITCH ASSY

5EL-82530-01-00

Unavailable

17

WIRE HARNESS ASSY

5KS-82590-50-00

Unavailable

18

. FUSE (10A)

67F-82151-40-00

$6.07

19

FUSE (15A)

67F-82151-50-00

$3.48

20

FUSE (5A)

67F-82151-20-00

$5.57

21

SWITCH, SIDE STAND

5RT-82566-40-00

Unavailable

22

SCREW, PAN HEAD

98507-05014-00

Unavailable

23

RELAY ASSY

5KS-81950-02-00

Unavailable

24

THERMO SWITCH ASSY

5FU-82560-50-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

CLAMP(4GY)

90464-20191-00

Unavailable

27

CLAMP(4KM)

90464-25217-00

Unavailable

28

CLAMP(4HM)

90464-15192-00

Unavailable

29

RELAY ASSY

4XV-8195A-00-00

Unavailable
