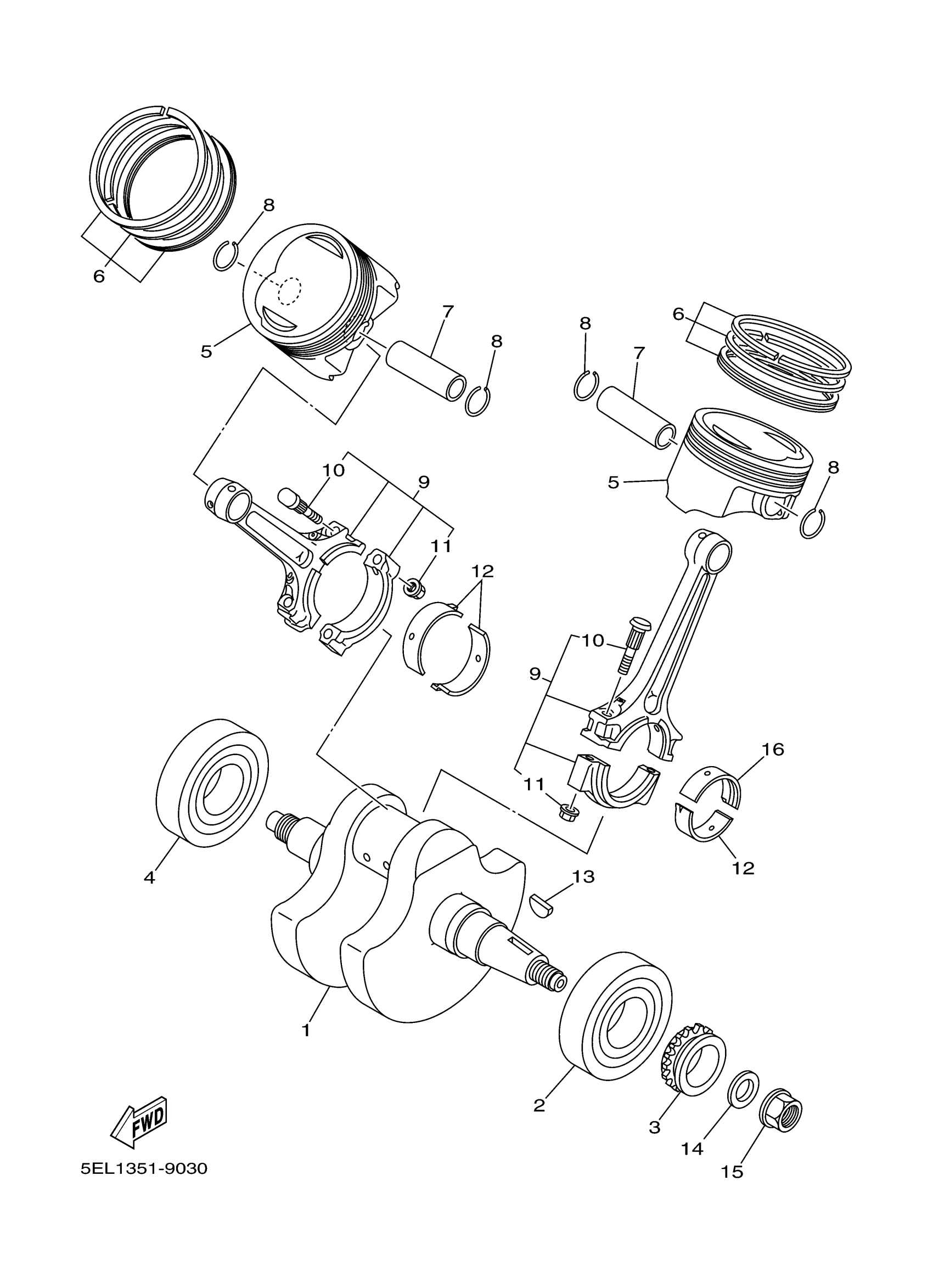

Yamaha XVS11WC-M (V STAR 1100 CUSTOM MIDNIGHT CA) 5P91 2007 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

5EL-11411-10-00

Unavailable

2

BEARING(3EF)

93306-30808-00

Unavailable

3

SPROCKET, DRIVE

4X7-13354-00-00

Unavailable

4

BEARING(3EF)

93306-30808-00

Unavailable

5

PISTON (STD)

5EL-11631-10-00

$168.99

6

PIST0N RING SET (STD)

1TA-11610-00-00

$80.99

7

PIN, PISTON

4WM-11633-00-00

Unavailable

8

CIRCLIP 256116340000

93450-24028-00

$5.60

9

CONNECTING ROD ASSY

5EL-11650-10-00

Unavailable

10

BOLT, CONNECTING ROD

4X7-11654-01-00

$6.99

11

NUT (11H)

90179-09379-00

$8.49

12

PLANE BEARING, CONNECTING ROD

4X7-11656-00-00

$32.99

12

PLANE BEARING, CONNECTING ROD

4X7-11656-10-00

$32.99

12

PLANE BEARING, CONNECTING ROD

4X7-11656-20-00

$32.99

12

PLANE BEARING, CONNECTING ROD

4X7-11656-30-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

4X7-11656-40-00

Unavailable

13

KEY, WOODRUFF

90280-05001-00

Unavailable

14

WASHER, PLATE(10L)

90201-165H4-00

Unavailable

15

NUT(10L)

90179-16448-00

Unavailable

16

PLANE BEARING, CONNECTING ROD

5G5-11656-00-00

Unavailable

16

PLANE BEARING, CONNECTING ROD

5G5-11656-10-00

Unavailable

16

PLANE BEARING, CONNECTING ROD

5G5-11656-20-00

Unavailable
