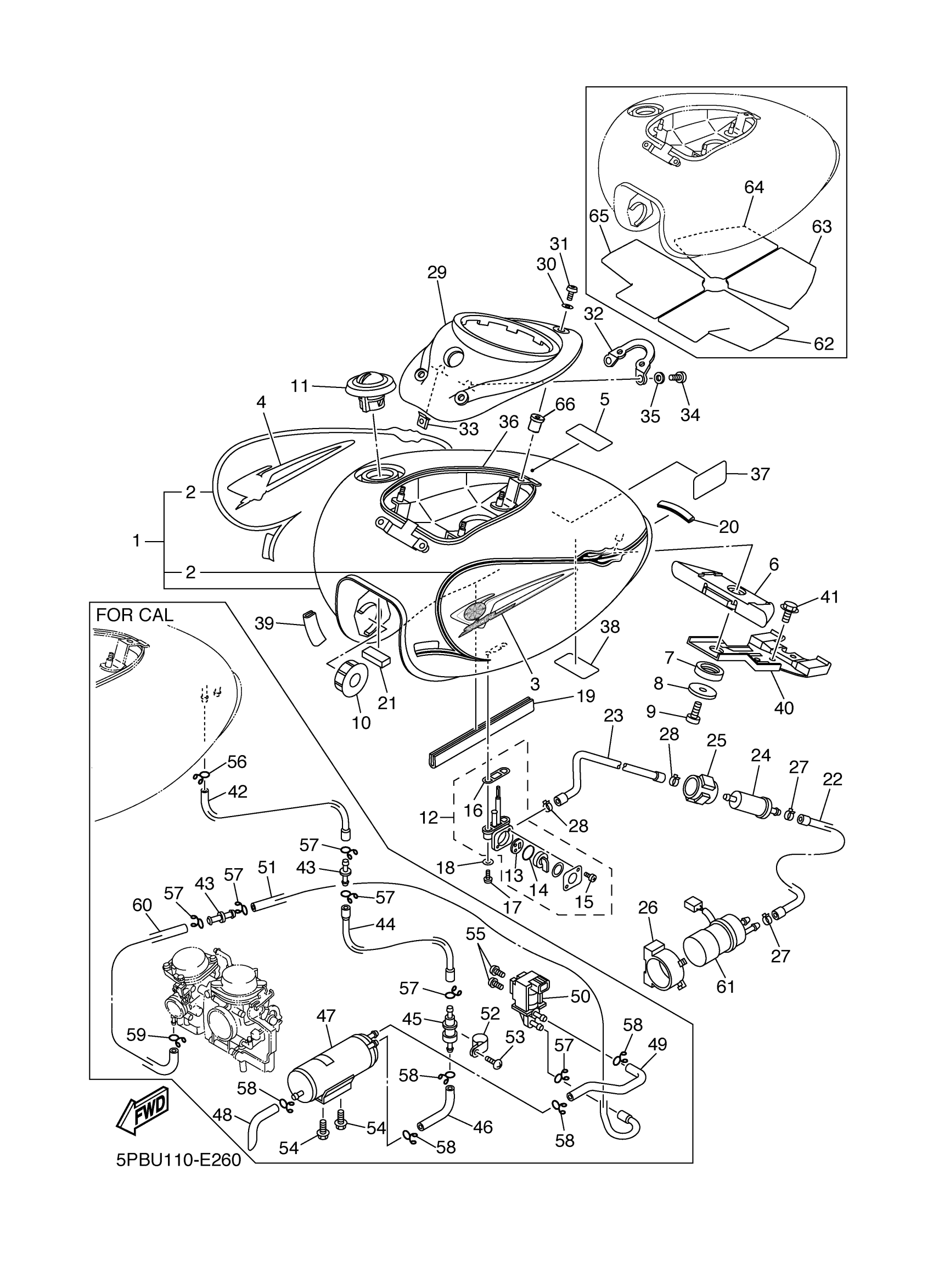

Yamaha XVS11VC (V STAR 1100 MIDNIGHT CUSTOM CA) 5PBV 2006 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (BLACK METALLIC X)

5EL-Y2410-12-03

Unavailable

1

FUEL TANK COMP. (BLACK METALLIC X)

5EL-Y2410-V2-03

Unavailable

2

. GRAPHIC SET

5PB-24240-90-00

Unavailable

3

EMBLEM

5PB-2416B-00-00

Unavailable

4

EMBLEM

5PB-2417B-00-00

Unavailable

5

LABEL, CAUTION

5GK-2118K-00-00

$6.99

6

DAMPER, LOCATING 2

5EL-24182-00-00

Unavailable

7

DAMPER, LOCATING 3

4TR-24183-00-00

$6.99

8

WASHER, PLATE

90201-06110-00

$8.49

9

BOLT, BUTTON HEAD

92017-06012-00

$7.49

10

DAMPER, LOCATING

4H7-24181-00-00

$6.99

11

CAP ASSY

4NK-24602-20-00

$129.99

11

CAP ASSY

5BN-24602-10-00

$206.99

12

FUEL COCK ASSY 1

4WM-24500-10-00

$163.99

13

VALVE PACKING

3AC-24523-00-00

$12.99

14

SEAL, COCK

3AJ-24534-01-00

Unavailable

15

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

16

O-RING

4X8-24512-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

MOLE, SIDE COVER 1

1FK-2171L-00-00

Unavailable

20

MOLD, FUEL TANK

5EL-24188-00-00

Unavailable

21

DAMPER, SIDE COVER

3XV-21717-00-00

Unavailable

22

PIPE, FUEL 1

5EL-24311-00-00

Unavailable

23

PIPE 3

5EL-24313-00-00

Unavailable

24

FILTER ASSY

1FK-24560-10-00

Unavailable

25

BRACKET, FILTER

1FK-24566-00-00

Unavailable

26

BAND 1

4EB-24398-00-00

Unavailable

27

CLIP (7K7)

90467-11044-00

Unavailable

28

CLIP

90467-11028-00

Unavailable

29

COVER, TOP

5EL-2171A-00-00

Unavailable

30

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

31

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

32

BRACKET, SEAT

5EL-2412F-00-00

Unavailable

33

NUT, SPRING(3GM)

90183-05061-00

Unavailable

34

SCREW, PAN

98517-05012-00

Unavailable

35

WASHER(1RW)

92907-05600-00

Unavailable

36

SEAL

5EL-2414G-00-00

Unavailable

37

SEAL

4DN-21268-00-00

Unavailable

38

SEAL 1

3SP-21732-00-00

Unavailable

39

MOLD, FUEL TANK

5EL-24188-00-00

Unavailable

40

PLATE, FITTING 1

5EL-2411F-00-00

Unavailable

41

BOLT, FLANGE

95817-08012-00

Unavailable

42

PIPE 10

5EL-24321-10-00

Unavailable

43

JOINT

4XY-14568-00-00

Unavailable

44

PIPE 2

5EL-24312-10-00

Unavailable

45

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

46

HOSE

90445-11056-00

Unavailable

47

CANISTER ASSY

5EL-24170-00-00

Unavailable

48

PIPE 6

5EL-24316-10-00

Unavailable

49

PIPE 7

5EL-24317-00-00

Unavailable

50

VALVE, OUTER VENT CONTROL 2

4WM-14896-00-00

Unavailable

51

PIPE 5

5EL-24315-00-00

Unavailable

52

CLAMP

90464-15014-00

Unavailable

53

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

54

BOLT, FLANGE

95817-06012-00

Unavailable

55

GASKET, EXHAUST

98507-05008-00

Unavailable

56

CLIP (16G)

90467-08021-00

Unavailable

57

CLIP

90467-090A2-00

Unavailable

58

CLIP

90467-100A1-00

Unavailable

59

CLIP (8L2)

90467-08017-00

Unavailable

60

PIPE 11

5EL-24322-10-00

Unavailable

61

FUEL PUMP COMP.

5KS-13907-01-00

Unavailable

62

DAMPER, PLATE 1

5YS-2414H-00-00

Unavailable

63

DAMPER, PLATE 2

5YS-2414J-00-00

Unavailable

64

DAMPER, PLATE 3

5YS-2414K-00-00

Unavailable

65

DAMPER, PLATE 4

5YS-2414N-00-00

Unavailable

66

NUT

90179-05009-00

Unavailable
