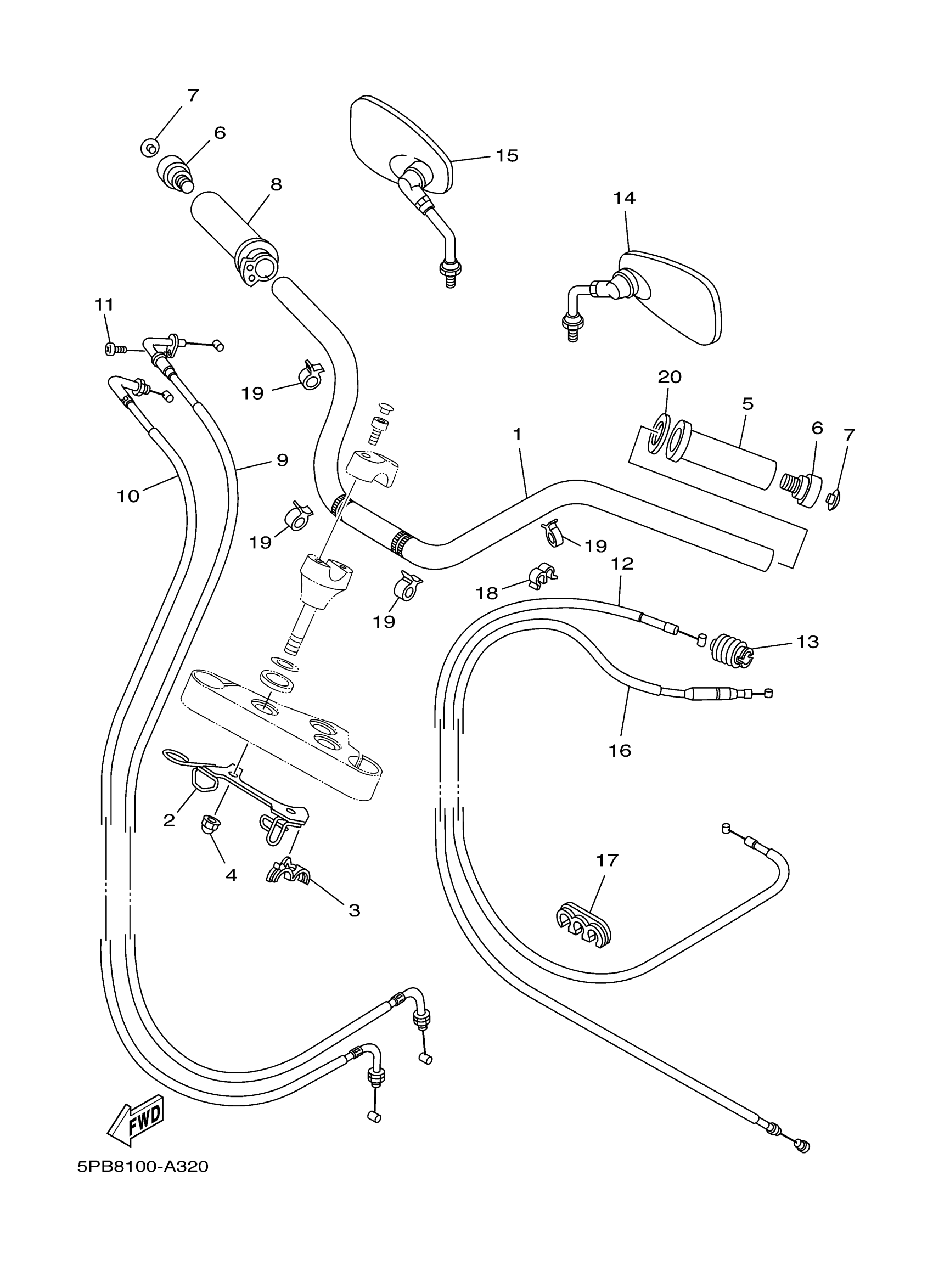

Yamaha XVS11VC-F (V STAR 1100 CUSTOM W-FLAMES CA) 3B86 2006 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5EL-26111-11-00

$172.99

2

GUIDE, CABLE

5PB-23389-00-00

$63.99

3

CLAMP(4TR)

90464-18246-00

$2.44

4

NUT, CROWN(4TR)

90176-12052-00

$12.49

5

GRIP

4NK-26241-01-00

Unavailable

6

END, GRIP

5EL-26246-00-00

$46.99

7

CAP, BOLT

5EL-23469-00-00

$7.99

8

GRIP ASSY

4XY-26240-00-00

$91.99

9

WIRE, THROTTLE 1

5PB-26311-11-00

$35.99

10

CABLE, THROTTLE 2

5PB-26312-11-00

$33.99

11

GASKET, EXHAUST

98507-05008-00

$3.55

12

CABLE, CLUTCH

5PB-26335-00-00

$41.99

13

BOOT, WIRE

1E6-26342-00-00

$30.99

14

REAR VIEW MIRROR ASSY (LEFT)

4NK-26280-10-00

$134.99

15

REAR VIEW MIRROR ASSY (RIGHT)

4NK-26290-10-00

$138.99

16

CABLE, STARTER 1

5EL-26331-00-00

Unavailable

17

CLAMP

90464-07003-00

Unavailable

18

CLAMP(4KB)

90464-06214-00

Unavailable

19

CLAMP(4HM)

90464-15192-00

Unavailable

20

WASHER, PLATE (26H)

90202-26142-00

Unavailable
