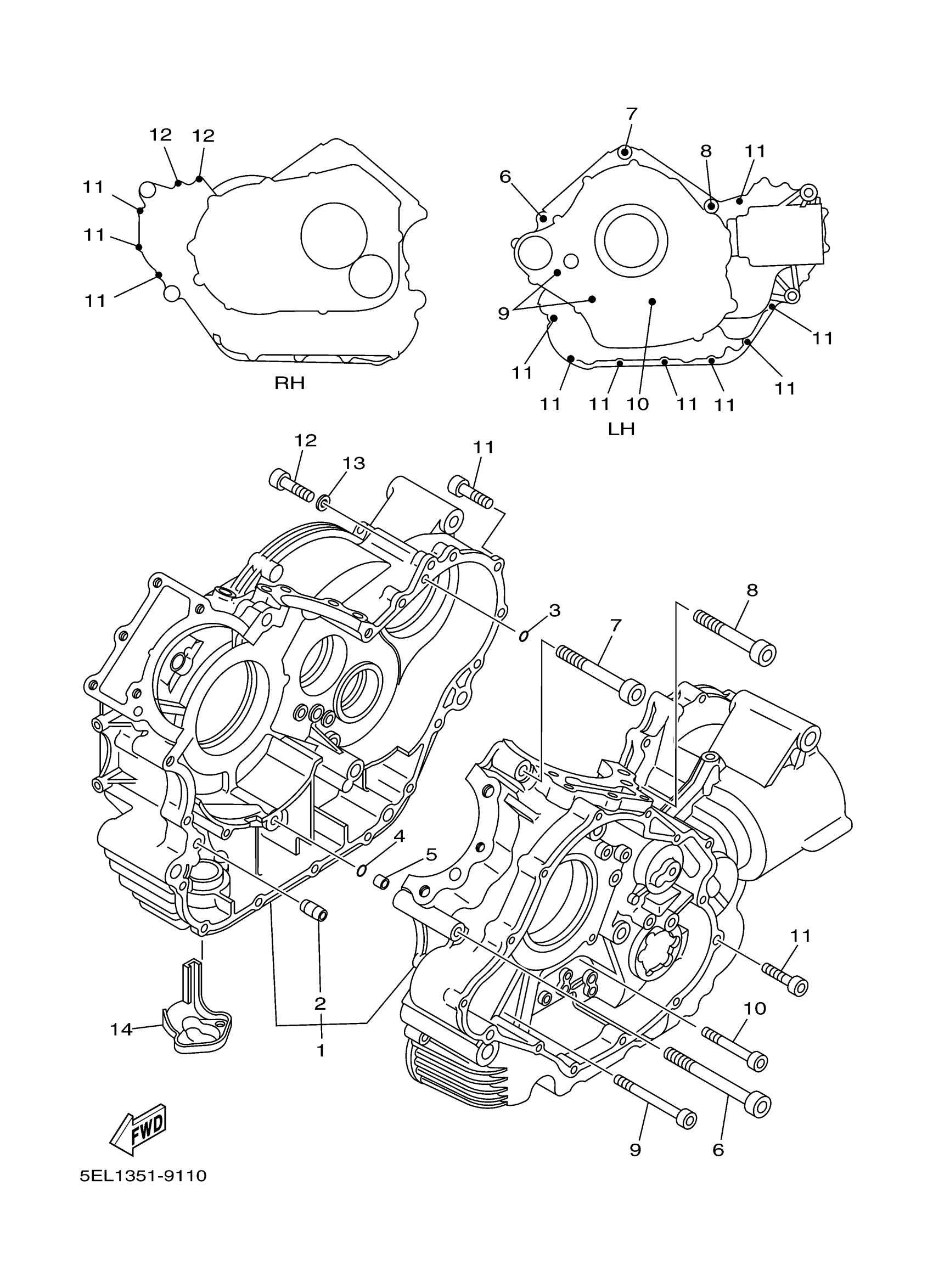

Yamaha XVS11VC-F (V STAR 1100 CUSTOM W-FLAMES CA) 3B86 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5YS-15100-00-00

Unavailable

2

PIN, DOWEL

99530-14016-00

$3.80

3

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

4

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

5

COLLAR

90387-06704-00

Unavailable

6

BOLT, SOCKET

91317-10100-00

$8.49

7

BOLT,SOCKET

91317-10070-00

Unavailable

8

BOLT, SOCKET

91317-10060-00

$8.49

9

BOLT,SOCKET

91317-06080-00

Unavailable

10

BOLT,SOCKET

91317-06055-00

$4.19

11

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

12

BOLT, SOCKET

91314-06030-00

$8.49

13

GASKET 256113960000

90430-06014-00

Unavailable

14

PROTECTOR

4X7-15491-00-00

Unavailable
