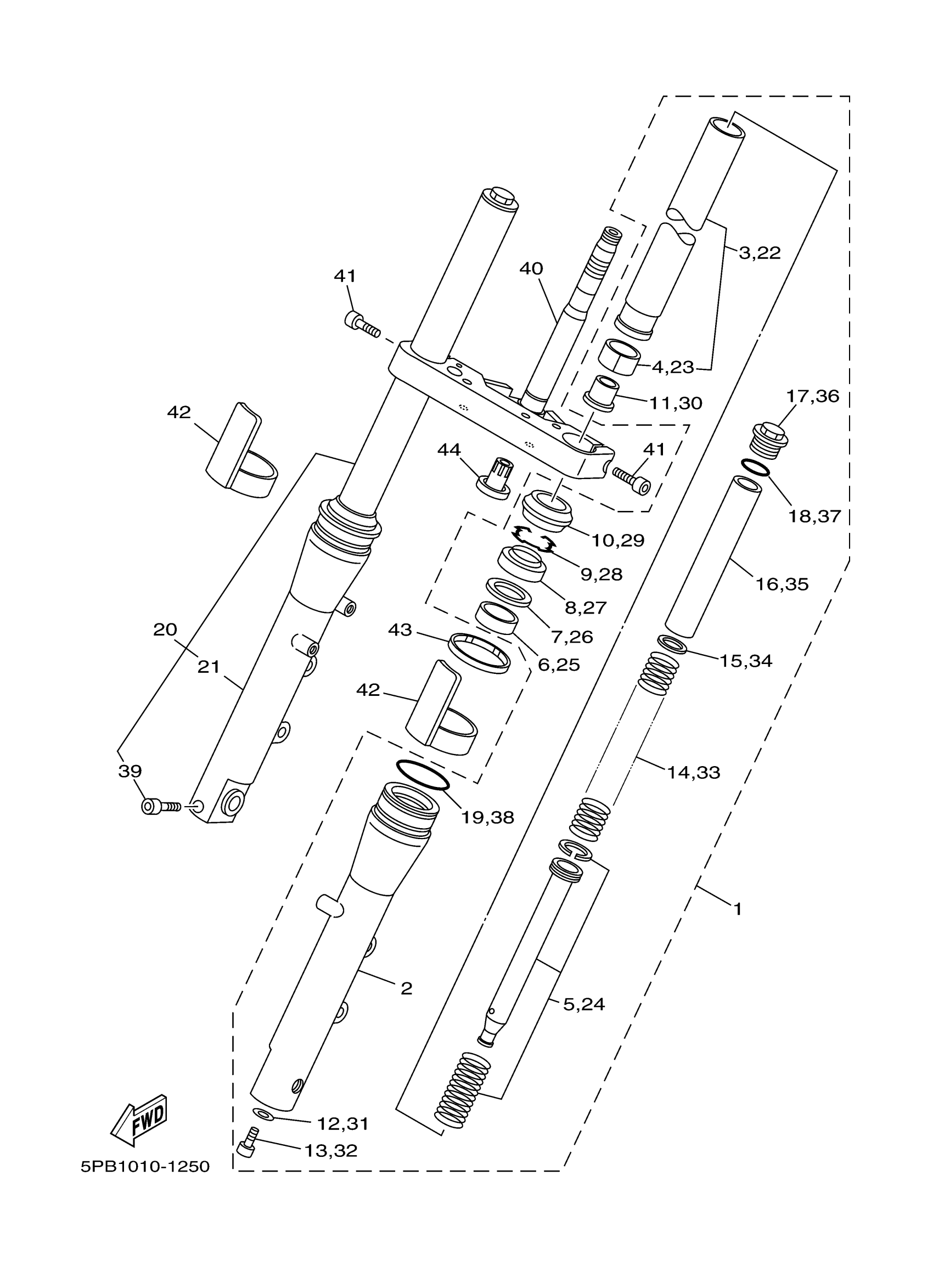

Yamaha XVS11TC (V STAR 1100 MIDNIGHT CUSTOM CA) 5PBR 2005 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5PB-23102-10-00

$340.99

2

TUBE, OUTER (LEFT)

5PB-23126-10-00

$271.99

3

INNER TUBE COMP.1

5EL-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5BN-23171-00-00

$22.99

5

CYLINDER COMP., FRONT FORK

5KS-23170-10-00

Unavailable

6

METAL, SLIDE 1

4FM-23125-40-00

$33.99

7

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

8

OIL SEAL

4EB-23145-01-00

$28.99

9

CLIP, OIL SEAL

26H-23156-00-00

$7.99

10

SEAL, DUST

4EB-23144-00-00

$22.99

11

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

12

GASKET

509-23158-L0-00

$16.49

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

14

SPRING, FRONT FORK

5KS-23141-10-00

Unavailable

15

WASHER, SPRING UPPER

4DW-23149-40-00

$6.99

16

.. SPACER

5PB-23118-00-00

Unavailable

17

BOLT, CAP

1D0-23111-00-00

Unavailable

18

O-RING

43F-23188-10-00

Unavailable

19

O-RING

5EL-23147-00-00

Unavailable

20

FRONT FORK ASSY (R.H)

5PB-23103-10-00

Unavailable

21

TUBE, OUTER (RIGHT)

5PB-23136-10-00

Unavailable

22

INNER TUBE COMP.1

5EL-23110-00-00

Unavailable

23

PISTON, FRONT FORK

5BN-23171-00-00

$22.99

24

CYLINDER COMP., FRONT FORK

5KS-23170-10-00

Unavailable

25

METAL, SLIDE 1

4FM-23125-40-00

$33.99

26

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

27

OIL SEAL

4EB-23145-01-00

$28.99

28

CLIP, OIL SEAL

26H-23156-00-00

$7.99

29

SEAL, DUST

4EB-23144-00-00

$22.99

30

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

31

GASKET

509-23158-L0-00

$16.49

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

33

SPRING, FRONT FORK

5KS-23141-10-00

Unavailable

34

WASHER, SPRING UPPER

4DW-23149-40-00

$6.99

35

.. SPACER

5PB-23118-00-00

Unavailable

36

BOLT, CAP

1D0-23111-00-00

Unavailable

37

O-RING

43F-23188-10-00

Unavailable

38

O-RING

5EL-23147-00-00

Unavailable

39

BOLT,SOCKET

91314-08040-00

Unavailable

40

UNDER BRACKET COMP.

5PB-23340-10-00

Unavailable

41

BOLT,SOCKET

91314-10030-00

Unavailable

42

COVER

5EL-2331G-00-00

Unavailable

43

STOPPER

5EL-23376-00-00

Unavailable

44

COVER, LOWER 1

5PB-23123-00-00

Unavailable

45

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
