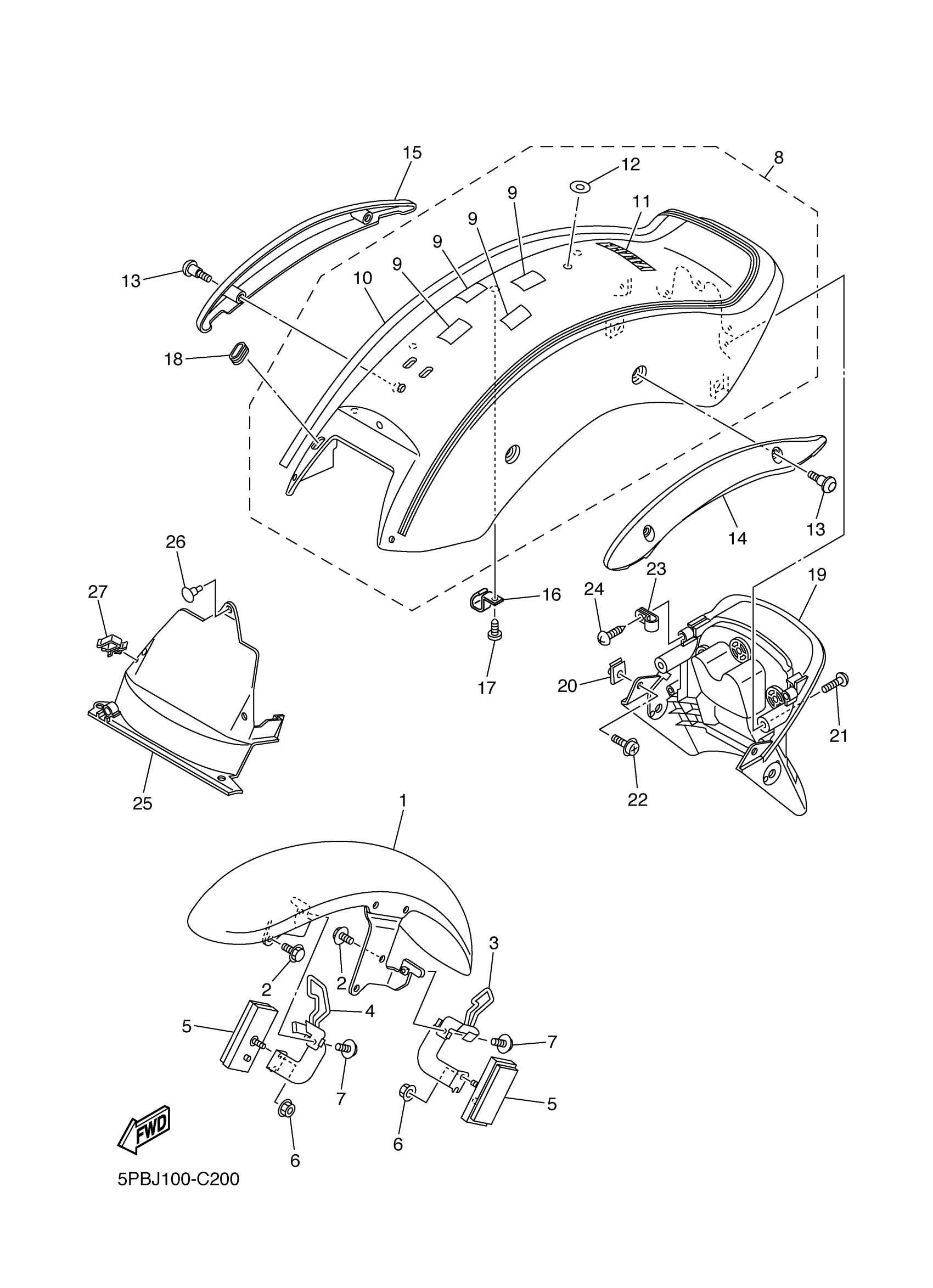

Yamaha XVS11TC (V STAR 1100 MIDNIGHT CUSTOM CA) 5PBR 2005 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5EL-21510-10-P0

Unavailable

2

BOLT, SMALL FLANGE

95027-08012-00

$9.49

3

HOLDER,WIRE 1

5EL-21597-10-00

Unavailable

4

HOLDER, WIRE 2

5EL-21598-10-00

Unavailable

5

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

6

NUT, FLANGE(3GM)

95707-05500-00

$8.49

7

BOLT, FLANGE

95817-06014-00

Unavailable

8

REAR FENDER COMP. (BLACK METALLIC X)

5EL-Y2161-1A-P4

Unavailable

9

SEAL 1

3SP-21732-00-00

$17.49

10

. GRAPHIC, REAR FENDER (BLACK METALLIC X)

5PB-21675-50-00

Unavailable

11

EMBLEM, YAMAHA

99247-00080-00

$15.99

12

SEAL 2

5VN-21735-00-00

$7.99

13

BOLT

90111-08001-00

$8.49

14

STAY 1

5EL-2164F-10-00

Unavailable

15

STAY 2

5EL-2164G-10-00

Unavailable

16

CLAMP

90461-06001-00

Unavailable

17

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

18

GROMMET

90480-01001-00

Unavailable

19

FENDER 2

5EL-2162R-00-00

Unavailable

20

NUT, SPRING

90183-051A0-00

Unavailable

21

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

22

SCREW, WITH WASHER

90159-05056-00

Unavailable

23

CLAMP(N07)

90461-10135-00

Unavailable

24

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

25

GUARD, MUD

5EL-21629-00-00

Unavailable

26

RIVET(4PH)

90269-07077-00

Unavailable

27

CLAMP (1J7)

90464-16021-00

Unavailable
