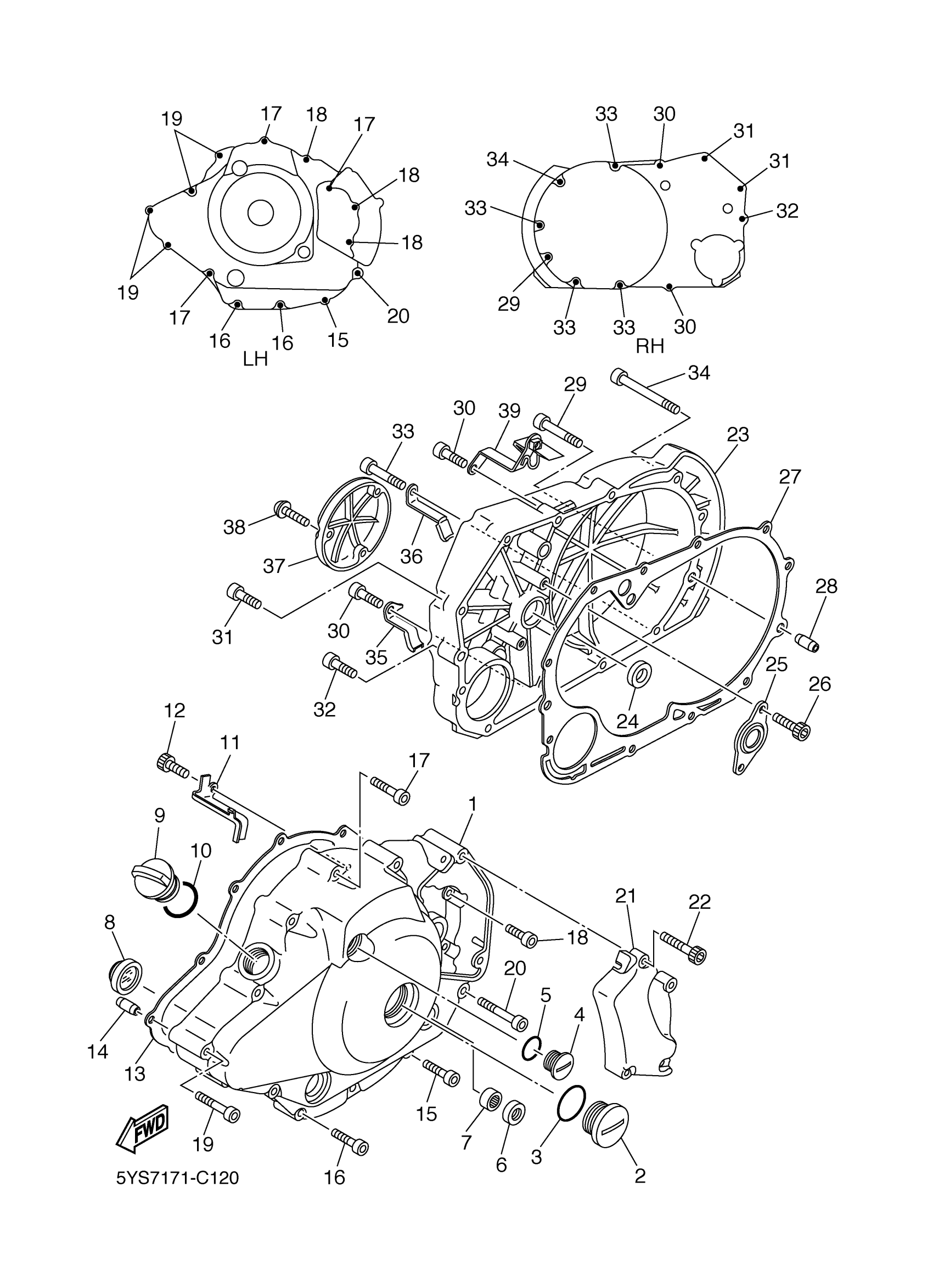

Yamaha XVS11TC (V STAR 1100 MIDNIGHT CUSTOM CA) 5PBR 2005 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

5JN-15411-10-00

Unavailable

PLUG, STRAIGHT SCREW

90340-32001-00

$26.99

O-RING (341)

93210-32172-00

$7.49

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

O-RING (2H9)

93210-14369-00

$7.49

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

BEARING, CYLINDRICAL (22F)

93317-21236-00

$24.99

GAUGE, LEVEL

2H7-15361-00-00

$97.99

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

O-RING(1KT)

93210-27778-00

$8.49

CLAMP 2

5EL-15484-00-00

Unavailable

BOLT,SOCKET

91317-06012-00

$8.49

GASKET, CRANKCASE COVER 1

5EL-15451-00-00

$28.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, SOCKET

91314-06035-00

$8.49

BOLT, SOCKET

91314-06030-00

Unavailable

BOLT, SOCKET

91314-06045-00

Unavailable

BOLT, SOCKET

91314-06045-00

Unavailable

BOLT,SOCKET

91314-06055-00

Unavailable

BOLT, SOCKET

91314-06065-00

Unavailable

COVER, CAP

5YS-15417-00-00

Unavailable

BOLT, SOCKET

91314-06030-00

Unavailable

COVER, CRANKCASE 2

5JN-15421-10-00

Unavailable

OIL SEAL (4X7)

93101-14102-00

Unavailable

PLATE, BEARING COVER

4X7-15388-00-00

Unavailable

BOLT, SOCKET

91314-06016-00

Unavailable

GASKET, CRANKCASE COVER 3

5EL-15462-00-00

Unavailable

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

BOLT, SOCKET

91314-06060-00

Unavailable

BOLT, SOCKET

91314-06035-00

$8.49

BOLT, SOCKET

91314-06035-00

$8.49

BOLT, SOCKET

91314-06040-00

Unavailable

BOLT,SOCKET

91314-06055-00

Unavailable

BOLT,SOCKET

91314-06055-00

Unavailable

CLAMP

90462-10003-00

Unavailable

CLAMP

90462-10247-00

Unavailable

COVER 2

5JN-15423-10-00

Unavailable

BOLT, BUTTON HEAD

92014-06020-00

Unavailable

STAY

5EL-14413-00-00

Unavailable
