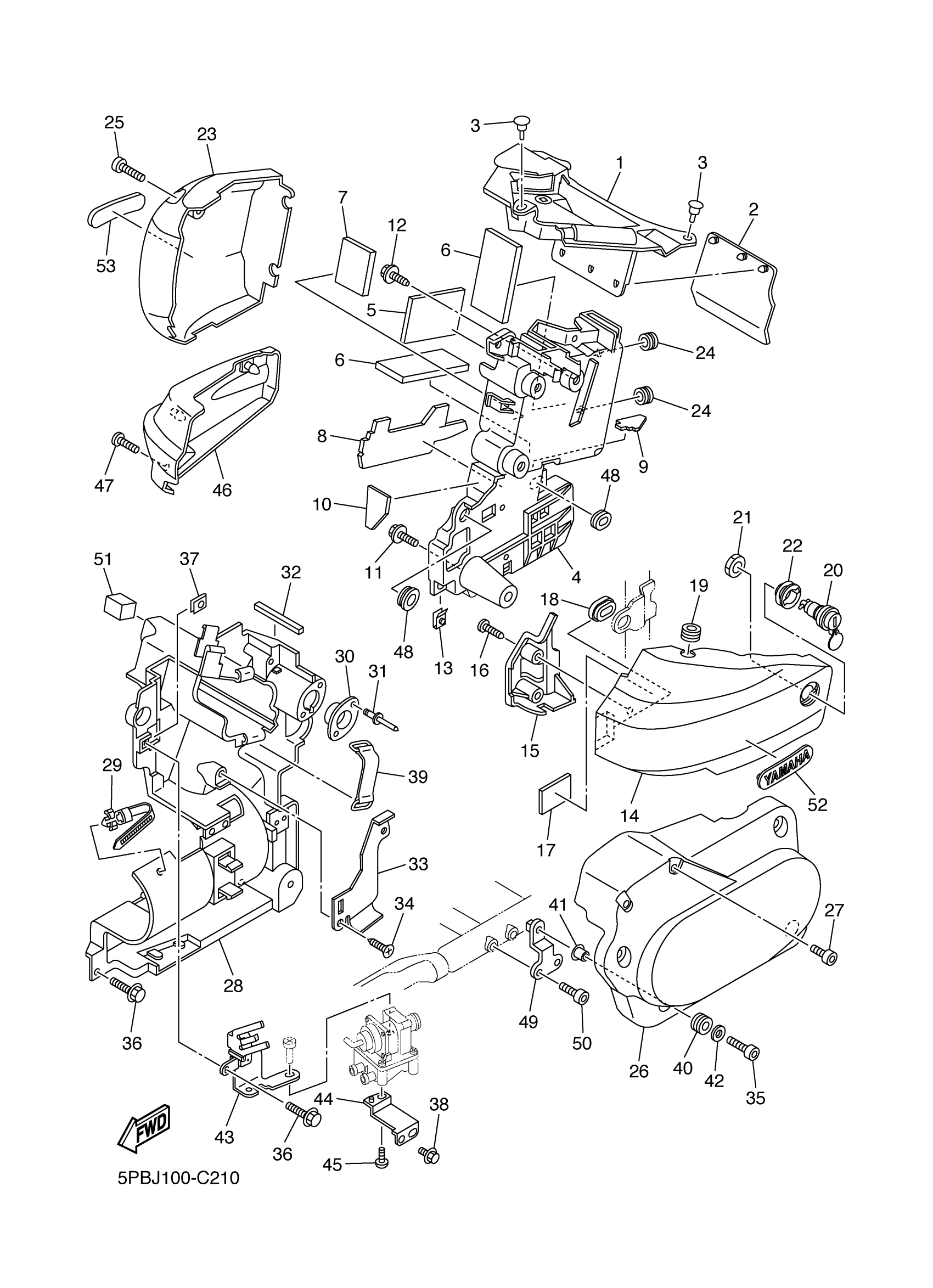

Yamaha XVS11TC-F (V STAR 1100 CUSTOM WITH FLAMES CA) 3B82 2005 SIDE COVER Diagram

#

Description
Price

1

LID 2

5EL-2177J-00-00

Unavailable

1

LID, COVER

5KS-2177B-00-00

Unavailable

2

FLAP

30X-21621-00-00

Unavailable

3

RIVET(4PH)

90269-07077-00

$8.49

4

BOX, BATTERY

5KS-2177G-00-00

Unavailable

5

DAMPER 1

29N-14425-00-00

$7.99

6

SEAT, BATTERY

5Y1-82122-00-00

$7.99

7

SEAT, DAMPER A

M12-T133A-00-00

$4.94

8

PANEL 1

5EL-2172A-10-00

$2.81

9

PANEL 2

5EL-2172F-00-00

$7.99

10

PANEL 3

5EL-2172G-00-00

Unavailable

11

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

NUT, SPRING(4ES)

90183-06069-00

Unavailable

14

COVER, SIDE 1

5EL-21711-00-00

Unavailable

15

GRILLE, SIDE COVER 1

5EL-2171Y-00-00

Unavailable

16

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

17

DAMPER

5H0-8235Y-M0-00

Unavailable

18

GROMMET(4DN)

90480-01558-00

Unavailable

19

GROMMET(3VD)

90480-12550-00

Unavailable

20

SIDE COVER LOCK ASSY

55K-21708-00-00

Unavailable

21

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

22

GROMMET (1E6)

90480-24186-00

Unavailable

23

COVER, SIDE 2

5EL-21721-00-00

Unavailable

24

GROMMET

90480-12320-00

Unavailable

25

SCREW(4DN)

90149-06302-00

Unavailable

26

COVER, SIDE 3

5EL-21731-00-00

Unavailable

27

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

28

LID

5EL-2177E-01-00

Unavailable

29

CLAMP(2TV)

90464-10112-00

Unavailable

30

STAY, LOCK

4TR-2175H-00-00

Unavailable

31

RIVET, BLIND

90267-40180-00

Unavailable

32

DAMPER 2

1FK-83526-00-00

Unavailable

33

GUIDE 1

5EL-2178L-00-00

Unavailable

34

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

35

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

36

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

37

NUT, SPRING(4ES)

90183-06069-00

Unavailable

38

BOLT, FLANGE

95817-06010-00

Unavailable

39

BAND, BATTERY

3TJ-82131-00-00

Unavailable

40

GROMMET (4N0)

90480-10289-00

Unavailable

41

COLLAR(4BH)

90387-066Y6-00

Unavailable

42

WASHER PLATE 256216150000

90201-06062-00

Unavailable

43

BRACKET 1

5KS-2172K-00-00

Unavailable

44

BRACKET 2

5EL-2172L-00-00

Unavailable

45

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

46

COVER, SIDE 4

5EL-21741-00-00

Unavailable

47

SCREW(4DN)

90149-06302-00

Unavailable

48

GROMMET(4DN)

90480-01558-00

Unavailable

49

BRACKET 3

5EL-2172M-00-00

Unavailable

50

BOLT,SOCKET

91317-06020-00

Unavailable

51

DAMPER

5EL-21746-00-00

Unavailable

52

EMBLEM 1

3LS-21781-10-00

Unavailable

53

EMBLEM 1

3LS-21781-10-00

Unavailable
