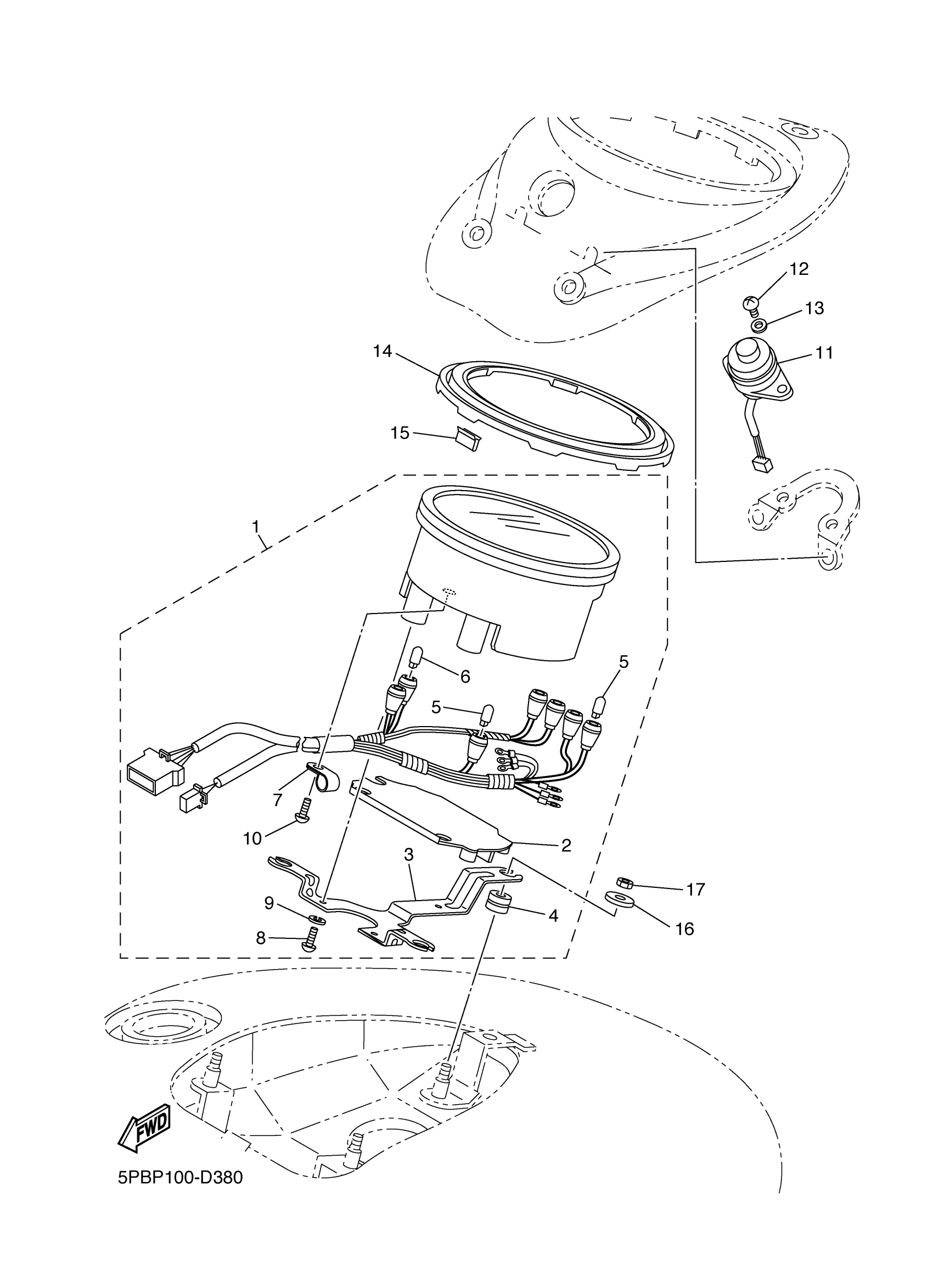

Yamaha XVS11TC-F (V STAR 1100 CUSTOM WITH FLAMES CA) 3B82 2005 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY (MPH)

5PB-83500-30-00

Unavailable

2

COVER, METER 2

4NK-83579-00-00

$7.99

3

BRACKET, METER

5EL-83519-00-00

Unavailable

4

DAMPER

4NK-83523-00-00

Unavailable

5

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

6

BULB (12V-1.4W, T6.5)

4NK-83517-00-00

Unavailable

7

CLAMP

5EL-8357E-00-00

$3.28

8

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

9

WASHER(6TA)

92907-04100-00

$8.49

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

SWITCH, METER CONTROL

4NK-8358J-00-00

$148.99

12

SCREW, PAN

98517-05012-00

$4.73

13

WASHER(1RW)

92907-05600-00

$3.78

14

MOLE 2

5EL-28346-00-00

Unavailable

15

GUIDE

1FK-2171H-00-00

$7.99

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

NUT, HEXAGON

95317-05600-00

Unavailable
