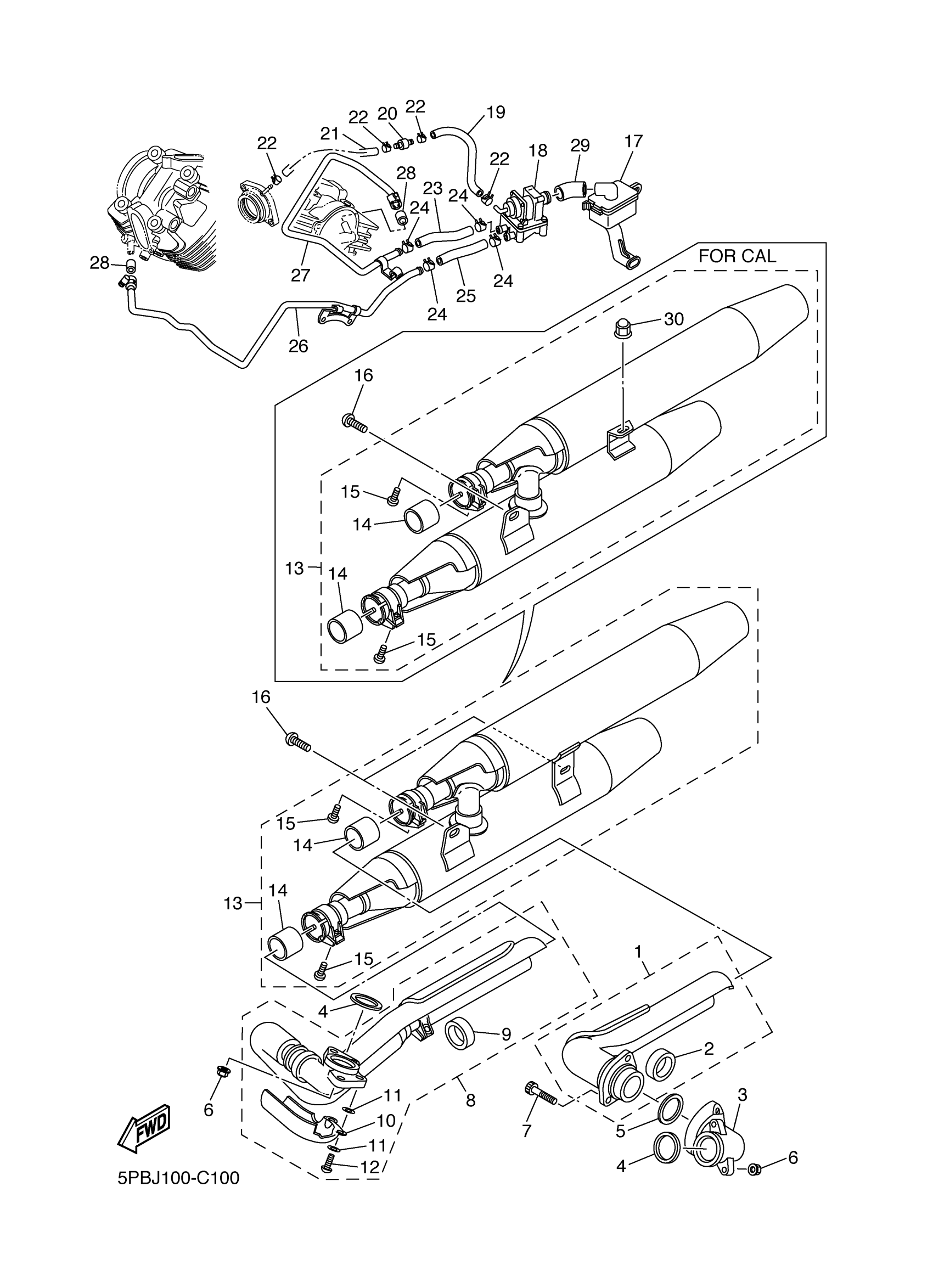

Yamaha XVS11SC (V STAR 1100 CUSTOM CA) 5PBK 2004 EXHAUST Diagram

EXHAUST PIPE ASSY 1

5EL-14610-10-00

Unavailable

GASKET, MUFFLER

4NK-14714-00-00

$27.99

JOINT, EXHAUST 1

5EL-14615-01-00

Unavailable

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

GASKET, EXHAUST PIPE

4TR-14613-00-00

$13.49

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

BOLT, SOCKET

91314-08035-00

$2.22

EXHAUST PIPE ASSY 2

5EL-14620-00-00

Unavailable

GASKET, MUFFLER

4NK-14714-00-00

$27.99

COVER, EXHAUST

5EL-14624-00-00

Unavailable

WASHER, PLATE(3AJ)

90202-05191-00

$9.49

SCREW, BIND(J39)

98980-06014-00

$9.49

MUFFLER ASSY 1

5EL-14710-50-00

Unavailable

MUFFLER ASSY 1

5YS-14710-00-00

Unavailable

GASKET, SILENCER

3XW-14755-00-00

Unavailable

GASKET, SILENCER

5KS-14755-00-00

Unavailable

BOLT, BUTTON HEAD(3YF)

92014-08025-00

Unavailable

BOLT, BUTTON

92017-08020-00

Unavailable

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

AIR FILTER

5EL-14806-00-00

Unavailable

AIR INDUCTION SYSTEM ASSY

5EL-14803-10-00

Unavailable

HOSE, VACUUM SENSING 2

5EL-13544-01-00

Unavailable

NOZZLE

41R-14489-00-00

Unavailable

HOSE,VAC.SENSING 5

4BH-13534-00-00

Unavailable

CLIP(41W)

90467-08092-00

Unavailable

HOSE, BEND 2

5EL-14882-00-00

Unavailable

CLIP

90468-08104-00

Unavailable

HOSE, BEND 4

5EL-14884-00-00

Unavailable

PIPE 2

5EL-14872-00-00

Unavailable

PIPE 1

5EL-14871-00-00

Unavailable

GASKET, MUFFLER

42H-14714-10-00

Unavailable

HOSE, BEND 1

5EL-14881-00-00

Unavailable

NUT, CROWN(2GG)

90176-10075-00

Unavailable
